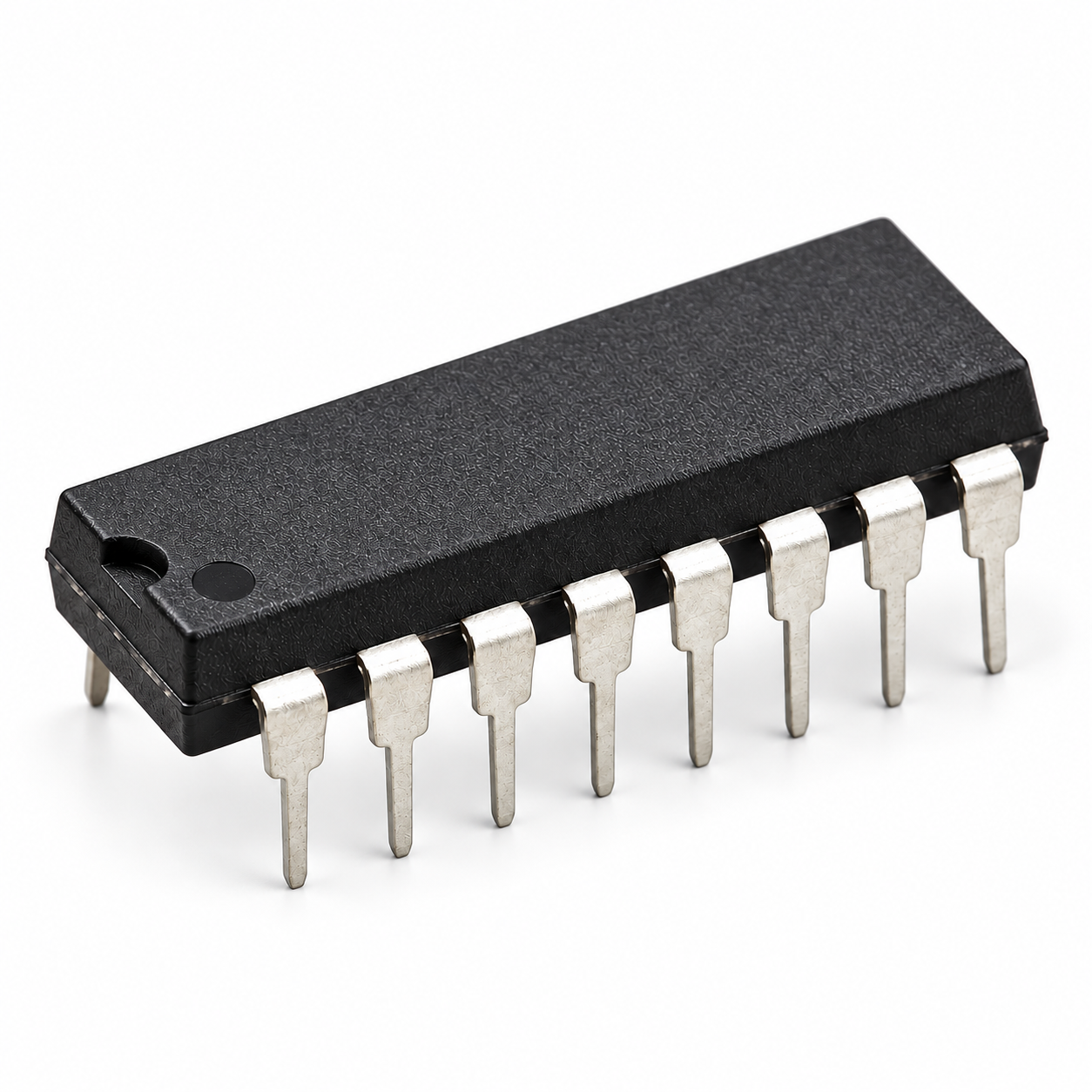

This is a pack of ten 74HC4543 BCD-to-7-segment latch/decoder/driver ICs. It is a 16-pin CMOS chip, made mainly for segmented LCDs, that turns 4-bit BCD data into seven segment outputs. Built-in latches hold the digit, and blanking and phase inputs give flexible display control from a 2V to 6V supply.

Key Features

  • Converts 4-bit BCD to seven-segment outputs
  • Designed mainly for segmented LCDs
  • Input latches store the BCD code
  • Blanking input
  • Phase input complements outputs for LCD drive
  • 2V to 6V supply, 16-pin CMOS
  • Fanout: 10 LSTTL loads (standard), 15 (bus driver)

Specifications

Part number 74HC4543
Function BCD-to-7-segment latch/decoder/driver
Display type Segmented LCD
Technology CMOS
Pins 16
Supply voltage 2V to 6V
Fanout 10 LSTTL loads (standard outputs); 15 LSTTL loads (bus driver outputs)
Quantity 10
SKU 1074HC4543PK10

What's Included

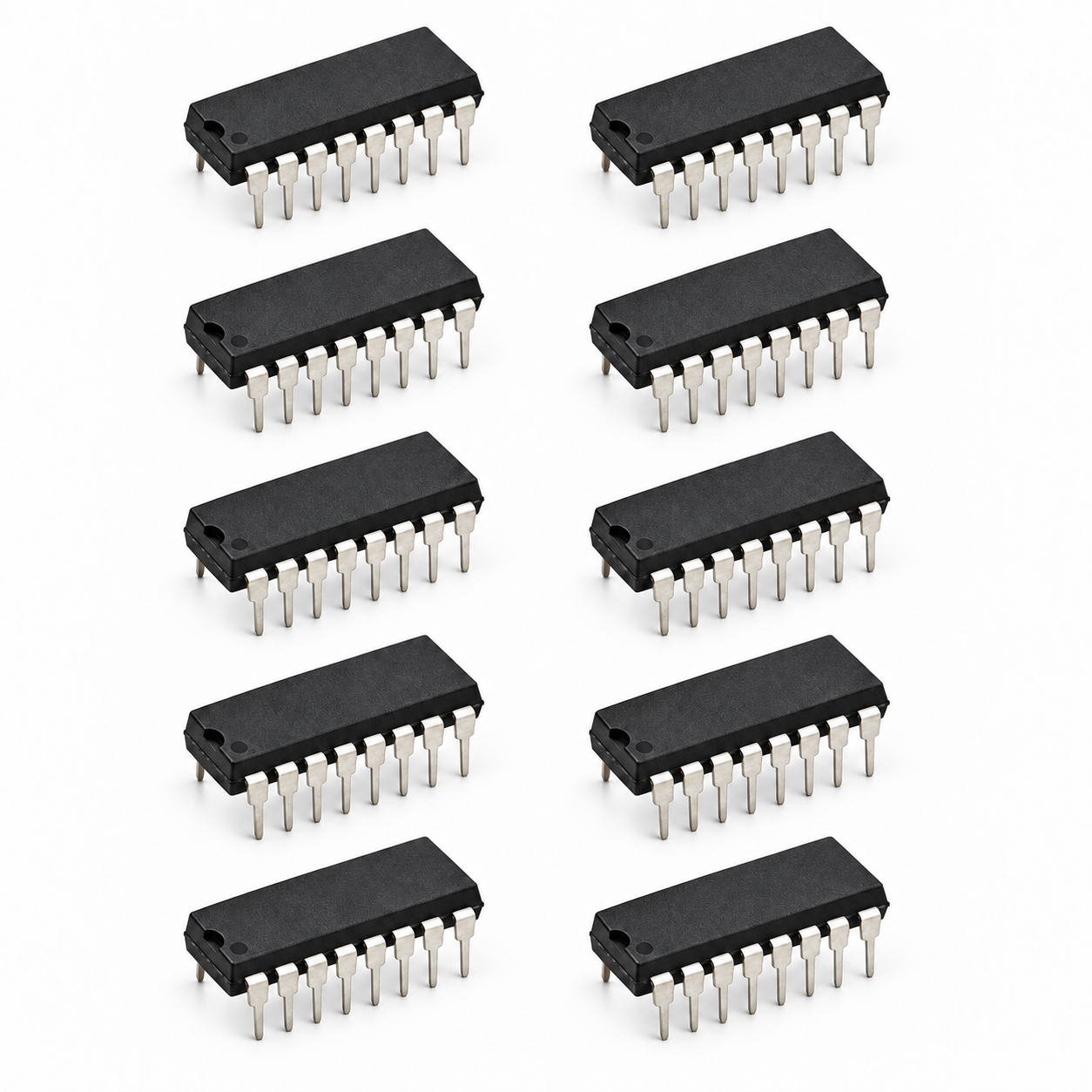

  • 10 x 74HC4543 ICs

Ideal For

Numeric LCD readouts, counters and educational display projects.

Frequently Asked Questions

Why does an LCD need a phase input?
LCD segments must be driven with alternating signals. A square wave on the phase input flips the outputs so the display gets AC drive.

What is BCD?
Binary-coded decimal uses four bits to represent each digit 0 to 9.
