Machine Tooled Low Profile IC Socket, 16-Pin DIP-16, Machined Contacts

19ICM16
Regular price
$0.65
Sale price
$0.65
Regular price
$0.60
Sold out
Unit price
per
Shipping calculated at checkout.

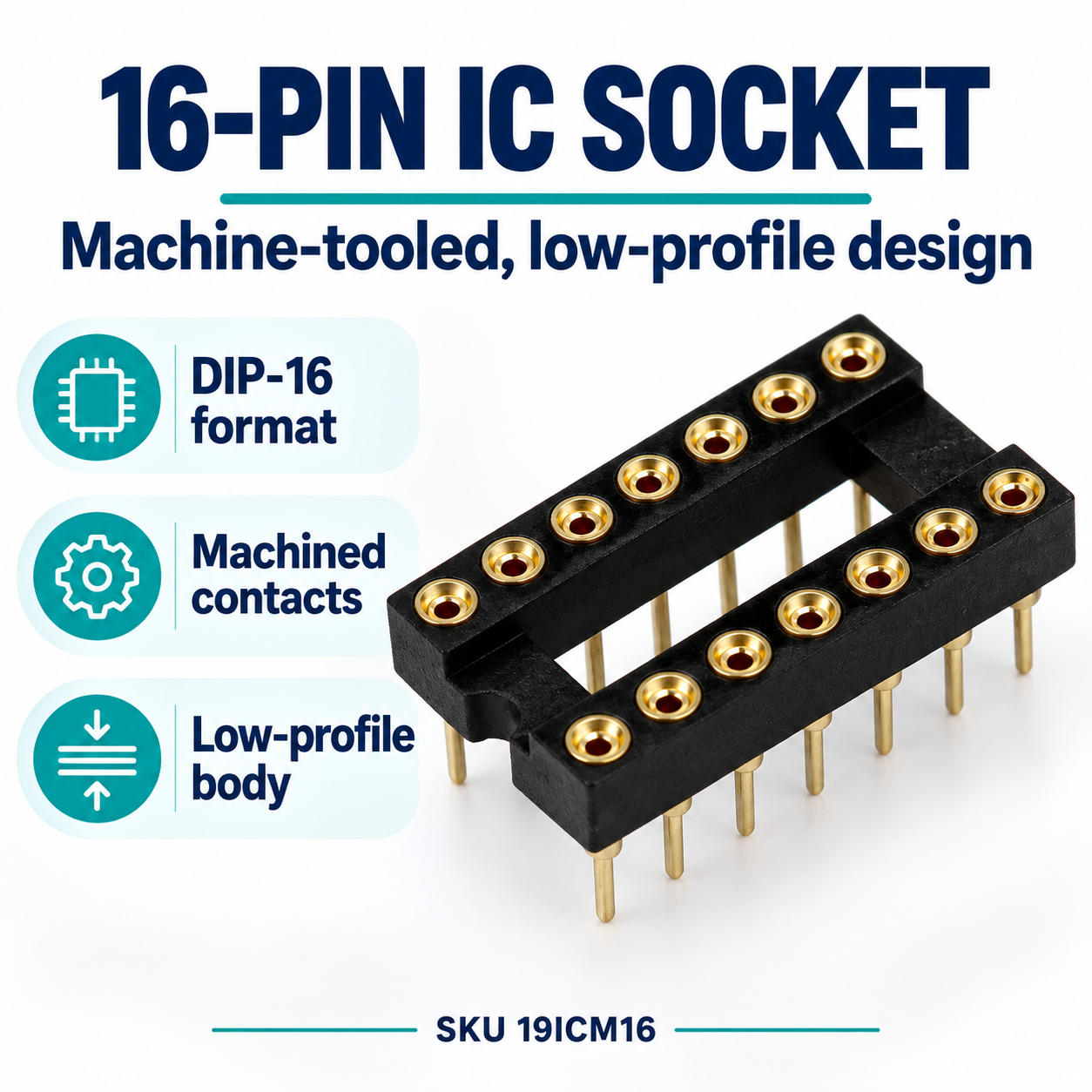

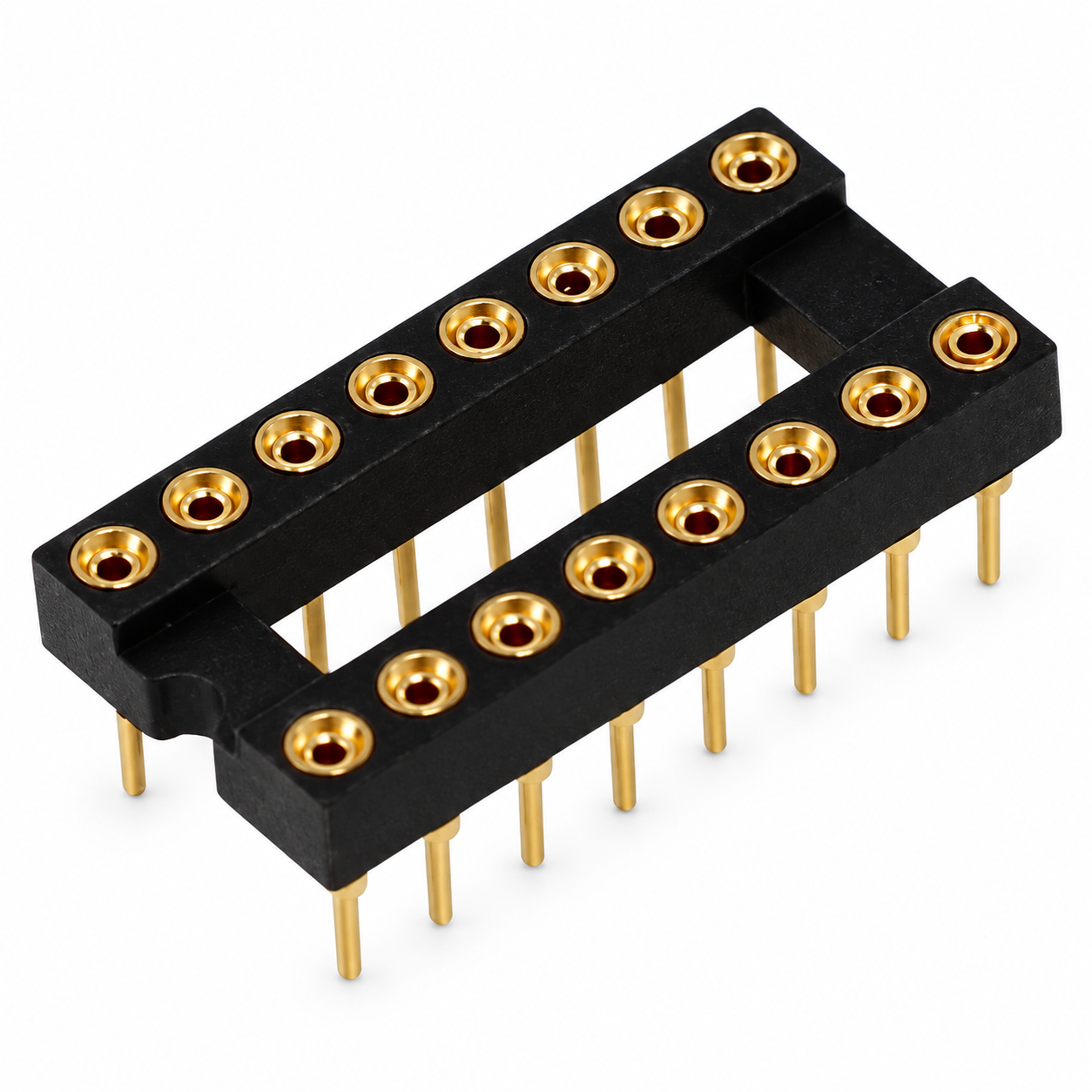

This is a single 16-pin machine-tooled, low-profile IC socket for DIP-16 integrated circuits. It has machined contacts and a compact profile, and once soldered in it lets you remove or replace the chip without repeated desoldering.

Key Features

  • 16 pins, fits DIP-16 devices
  • Machined contacts
  • Compact low-profile body
  • Swap ICs without desoldering
  • Useful for prototyping, troubleshooting, repairs and teaching

Specifications

Number of pins 16
Device type DIP-16
Contact style Machined
Profile Low profile
Quantity 1 socket
SKU 19ICM16

What's Included

  • 1 × 16-pin machine-tooled low-profile IC socket

Ideal For

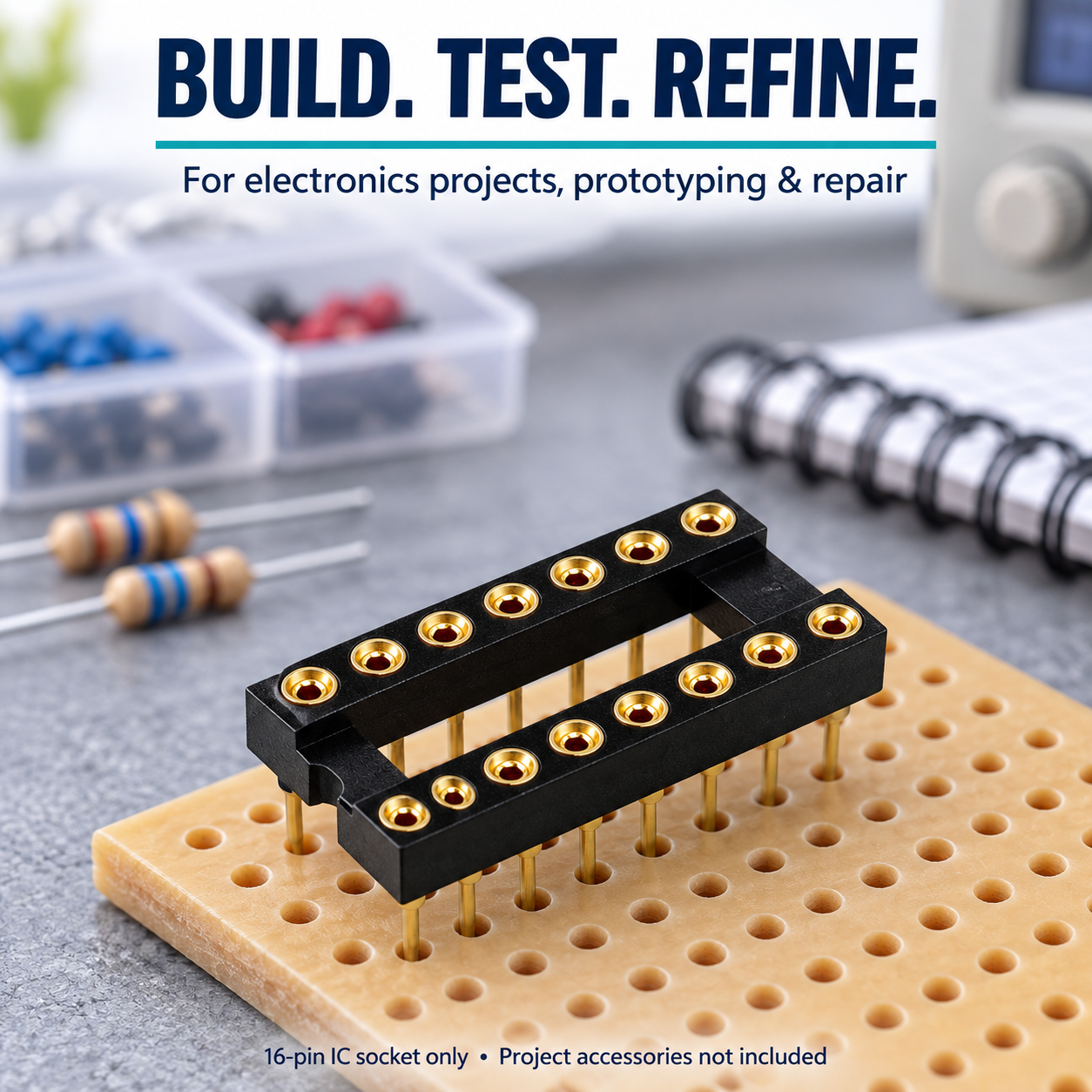

Prototypes, repairs and student projects using 16-pin DIP chips.

Frequently Asked Questions

What does machine tooled mean for an IC socket?

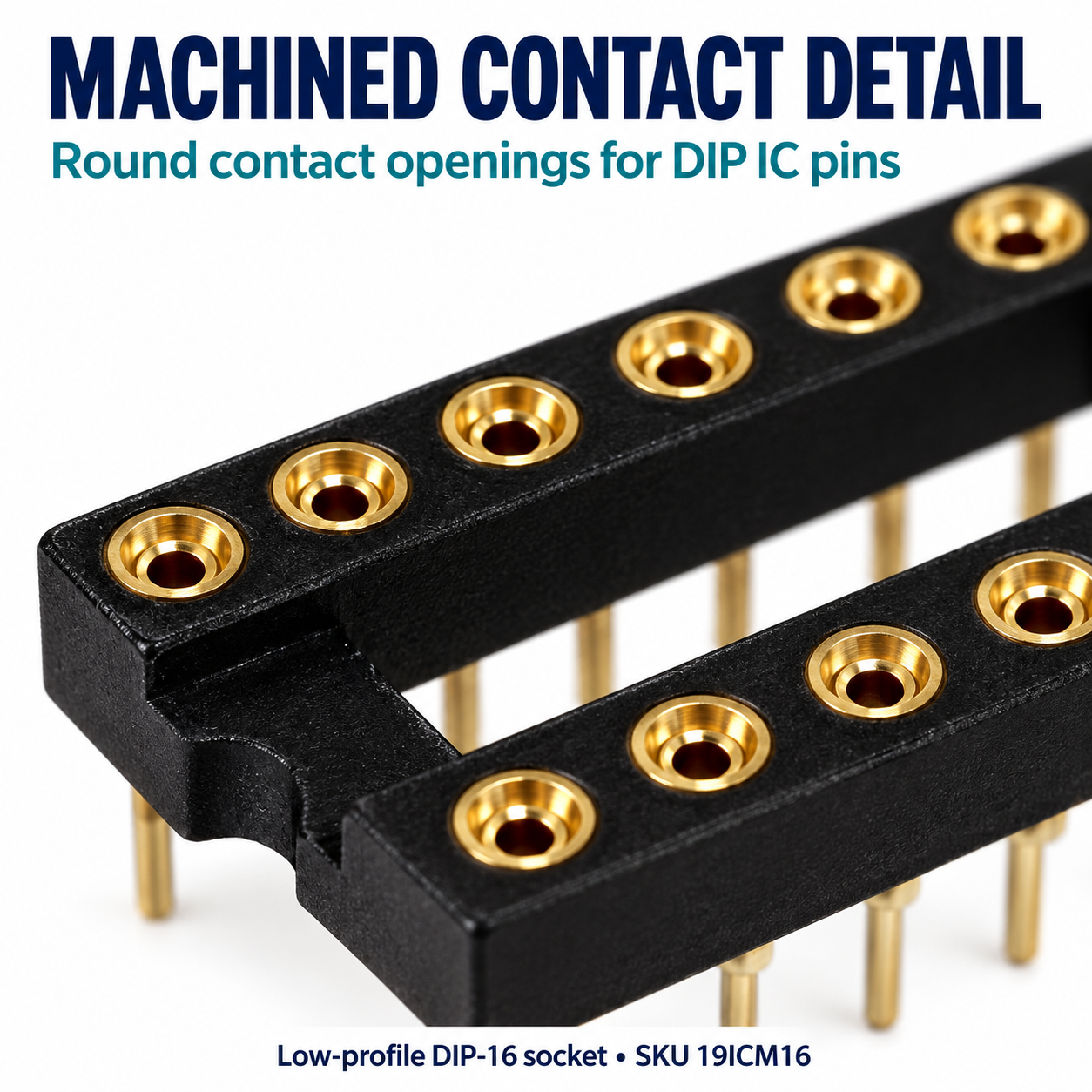

Machine-tooled (machined) sockets use precision-turned round contacts rather than stamped leaf springs. They generally grip IC leads firmly and hold up well to repeated chip insertions.

Why use a socket instead of soldering the IC directly?

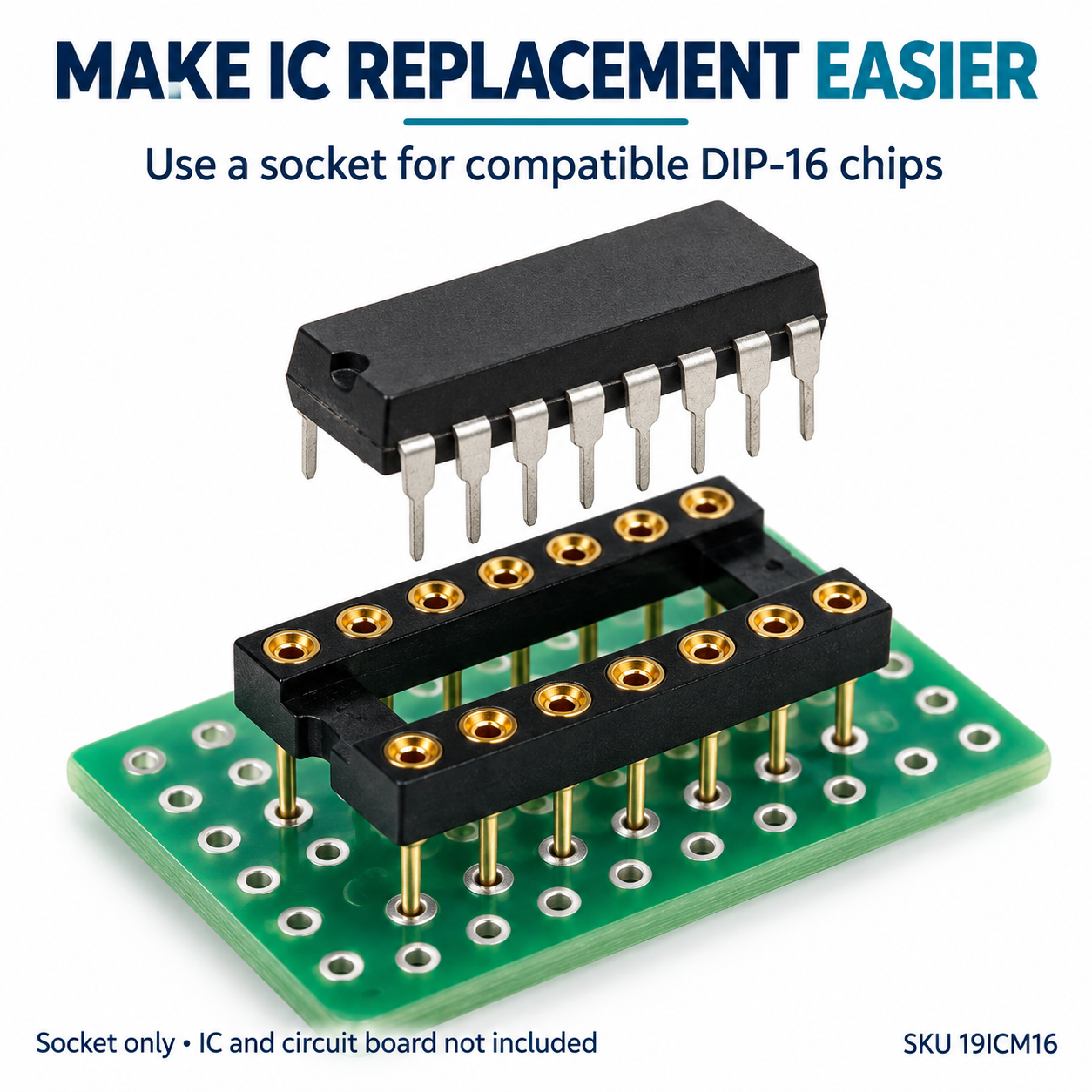

The socket protects the chip from soldering heat and lets you pull and replace it easily for testing, upgrades or repair.
