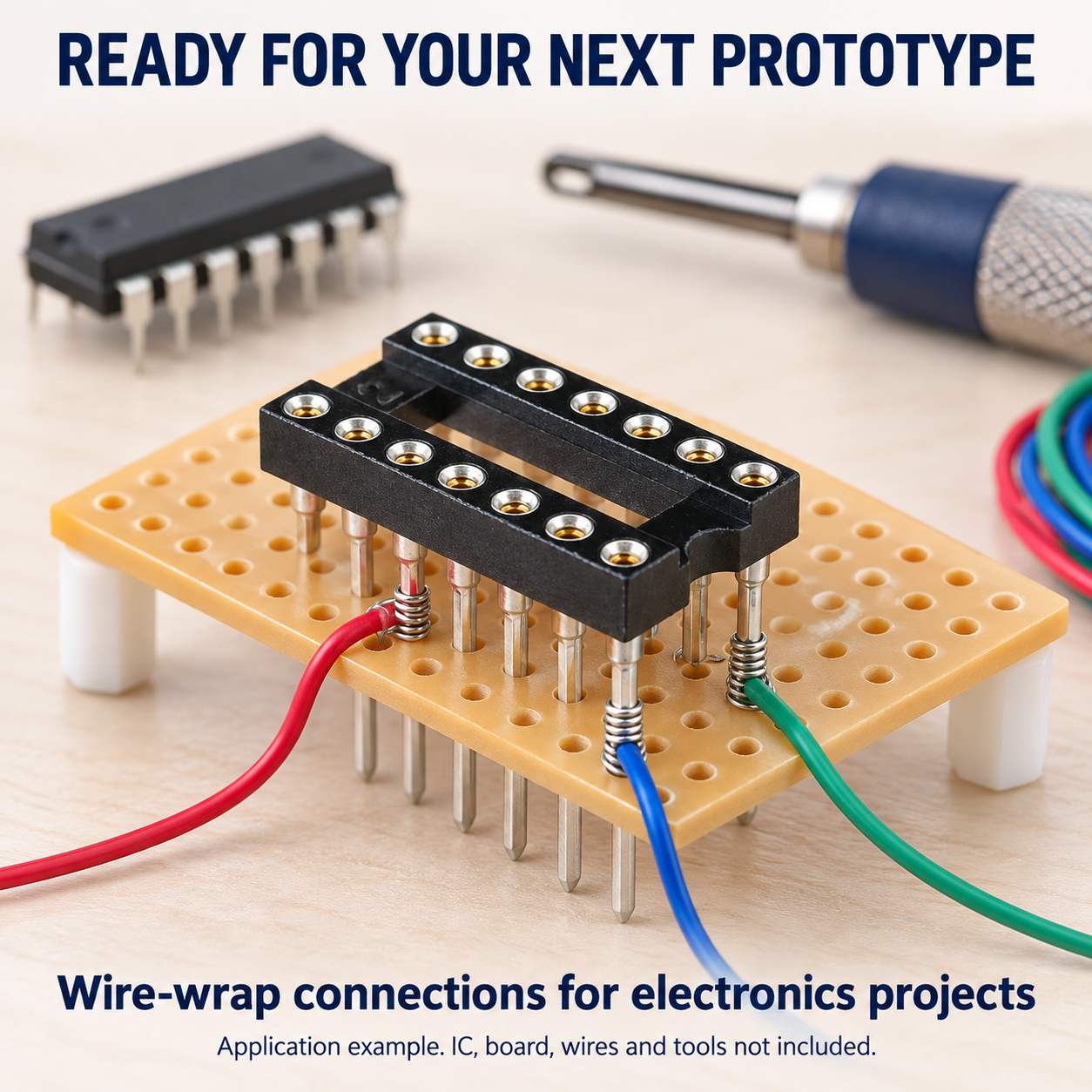

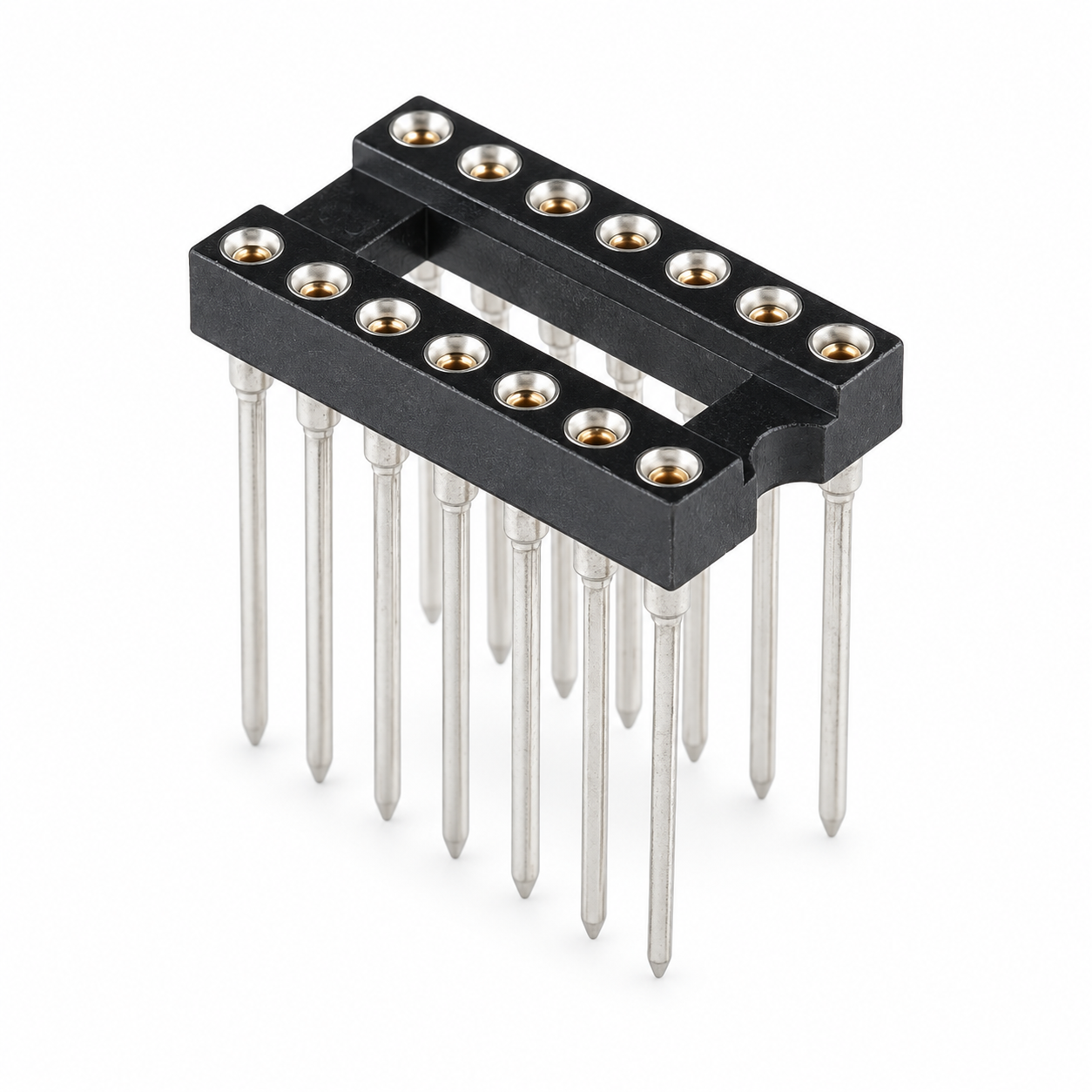

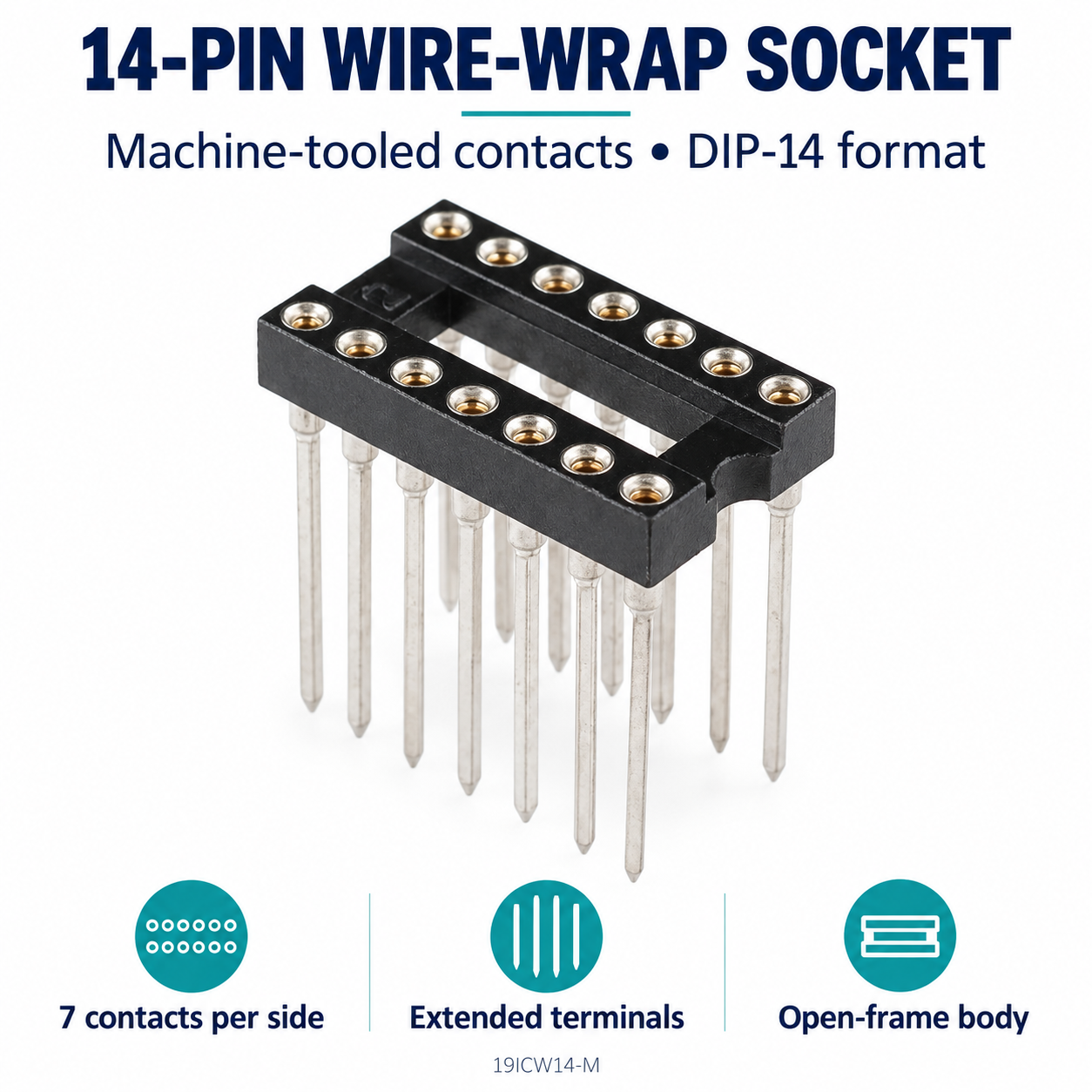

This is a single 14-pin machine-tooled wire-wrap IC socket for DIP-14 integrated circuits. It combines machined contacts with wire-wrap terminals for point-to-point wiring, so chips can be inserted or replaced without disturbing the wrapped connections.
Key Features
- 14 pins, fits DIP-14 devices

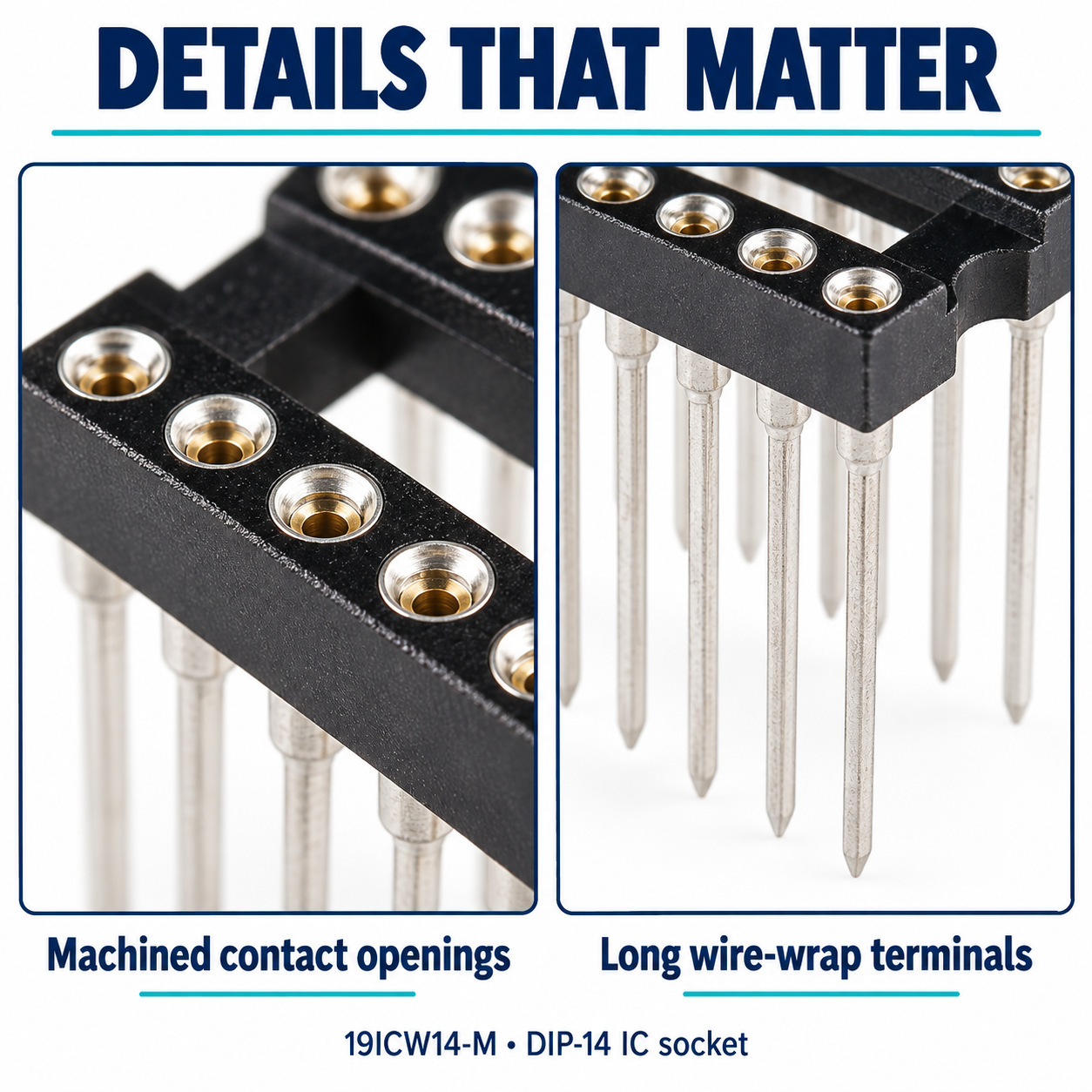

- Machined contacts
- Wire-wrap terminals for point-to-point wiring
- Replace ICs without disturbing wrapped wires
- Useful for prototyping, troubleshooting, repairs and teaching
Specifications
| Number of pins | 14 |
|---|---|
| Device type | DIP-14 |
| Contact style | Machined |
| Termination | Wire wrap |
| Quantity | 1 socket |
| SKU | 19ICW14-M |
What's Included
- 1 × 14-pin machine-tooled wire-wrap IC socket
Ideal For

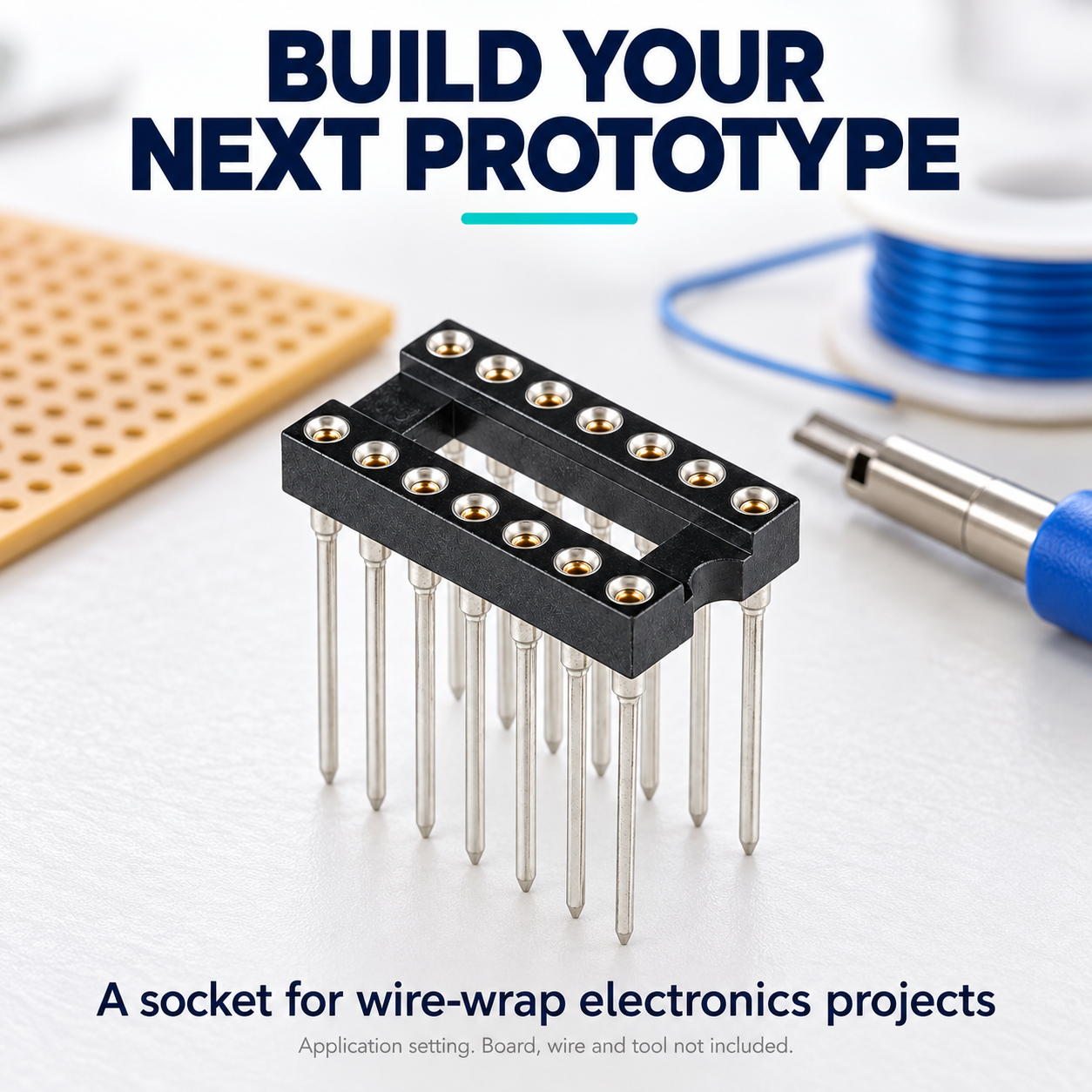

Wire-wrapped prototypes and repairs using 14-pin DIP chips.
Frequently Asked Questions
What is a wire-wrap socket?
A wire-wrap socket has long square terminals under the board. Wire is wrapped tightly around each terminal with a wrapping tool to make point-to-point connections without soldering.
What does machine tooled mean for an IC socket?
Machine-tooled (machined) sockets use precision-turned round contacts rather than stamped leaf springs. They generally grip IC leads firmly and hold up well to repeated chip insertions.
