Steel AA Battery Contact Clip with Solder Lug, Chassis Mount, 0.70 x 0.35 x 0.60 in
Steel AA Battery Contact Clip with Solder Lug, Chassis Mount, 0.70 x 0.35 x 0.60 in
  • Load image into Gallery viewer, Steel AA Battery Contact Clip with Solder Lug, Chassis Mount, 0.70 x 0.35 x 0.60 in
  • Load image into Gallery viewer, Steel AA Battery Contact Clip with Solder Lug, Chassis Mount, 0.70 x 0.35 x 0.60 in

Steel AA Battery Contact Clip with Solder Lug, Chassis Mount, 0.70 x 0.35 x 0.60 in

280199
Regular price
$0.30
Sale price
$0.30
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

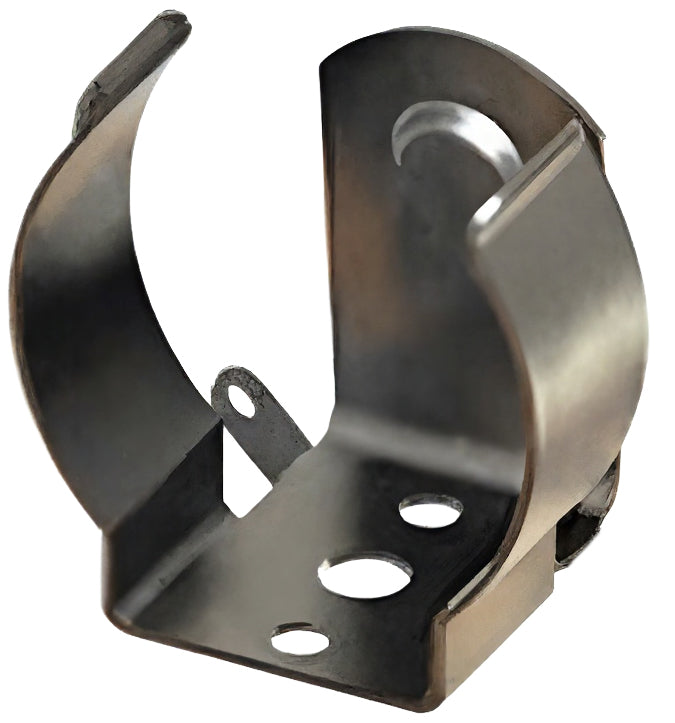

This is a steel AA battery contact clip with one solder lug for chassis mounting. The positive contact grips the battery securely, and the terminal is non-insulated. It measures 0.70 x 0.35 x 0.60 in overall.

Key Features

  • Grips an AA battery securely
  • One solder lug (ear)
  • Non-insulated terminal
  • Steel construction
  • Chassis mount

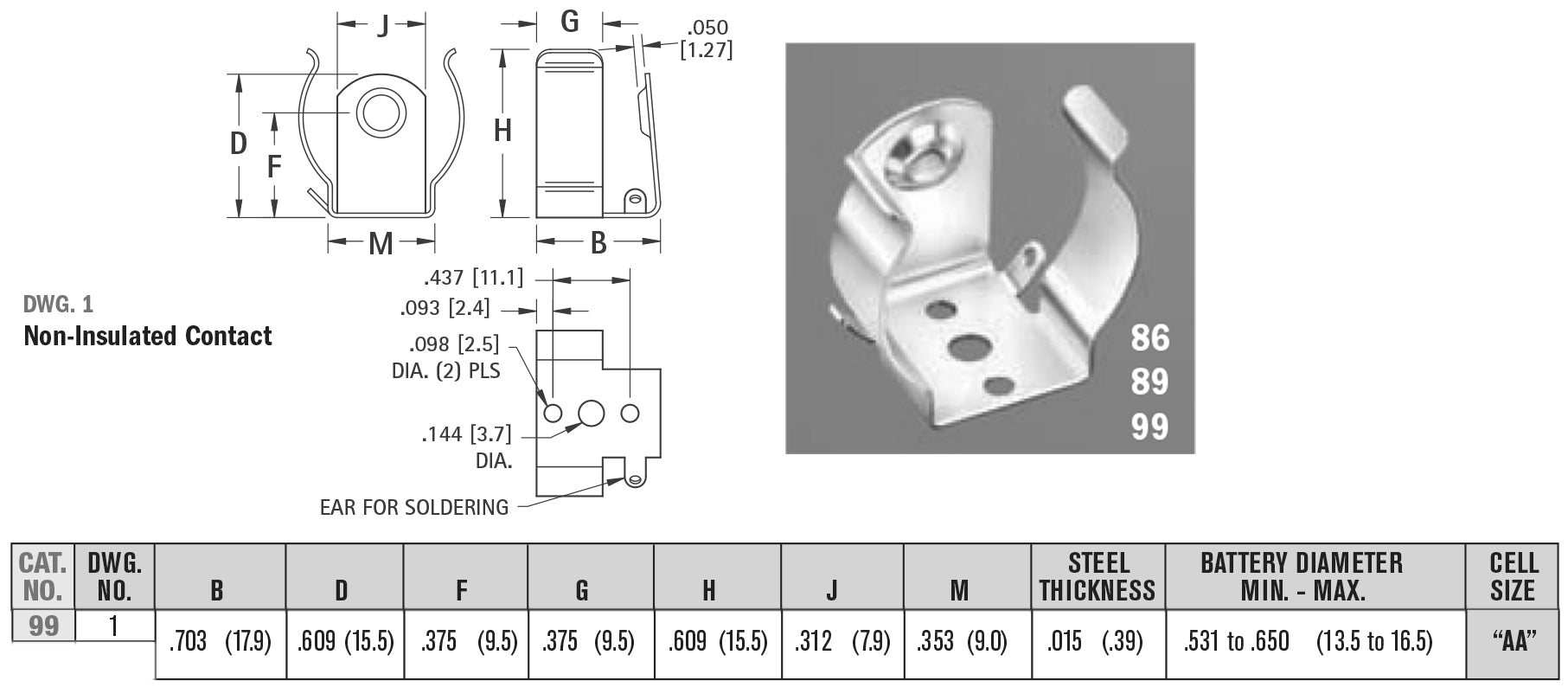

Specifications

Battery AA
Material Steel
Termination Solder lug (1)
Insulation Non-insulated
Mounting Chassis
Dimensions 0.70 x 0.35 x 0.60 in
SKU 280199

What's Included

  • 1 x AA battery contact clip

Ideal For

Building custom AA battery mounts in enclosures and DIY projects.

Frequently Asked Questions

Is it insulated?
No. The terminal is non-insulated, so keep it clear of other conductors.

How many solder points does it have?
One ear for soldering.
