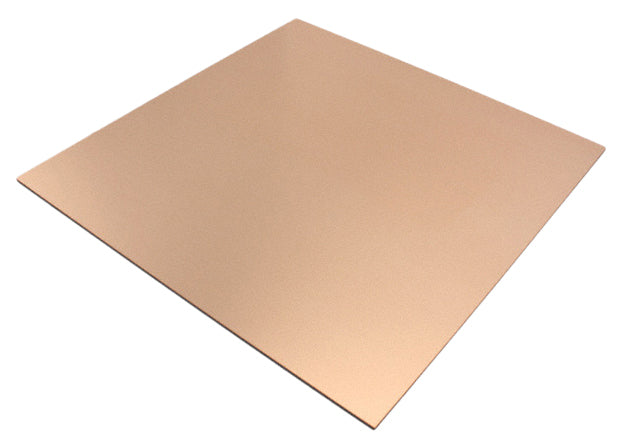

The 500 Series are copper clad laminates consisting of continuous woven glass cloth impregnated with epoxy resin. Compared to a 2 oz. copper clad board, 1oz. boards contain less copper making the etching process much quicker. They are made of FR4, which is a flame retardant version of G-10 material.
These boards are ideal for prototyping and small production runs. They require only an anti-etching pcb pen and copper etchant. They can easily be used by PCB manufacturers, design engineers, hobbyists, and students.
Features:
- Comply with UL (file number E214381) and IPC-4101C/21
- DICY (dicyandiamide) Cured System
- Easy to cut, with no specialized equipment required
- UV blocking
- Available in 1 oz (1.37 mil, 35 µm) and ½ oz (0.67 mil, 17 µm) copper cladding
- Available in 1/16” (1.60 mm) and 1/32” (0.80 mm) laminate thicknesses
Specifications:

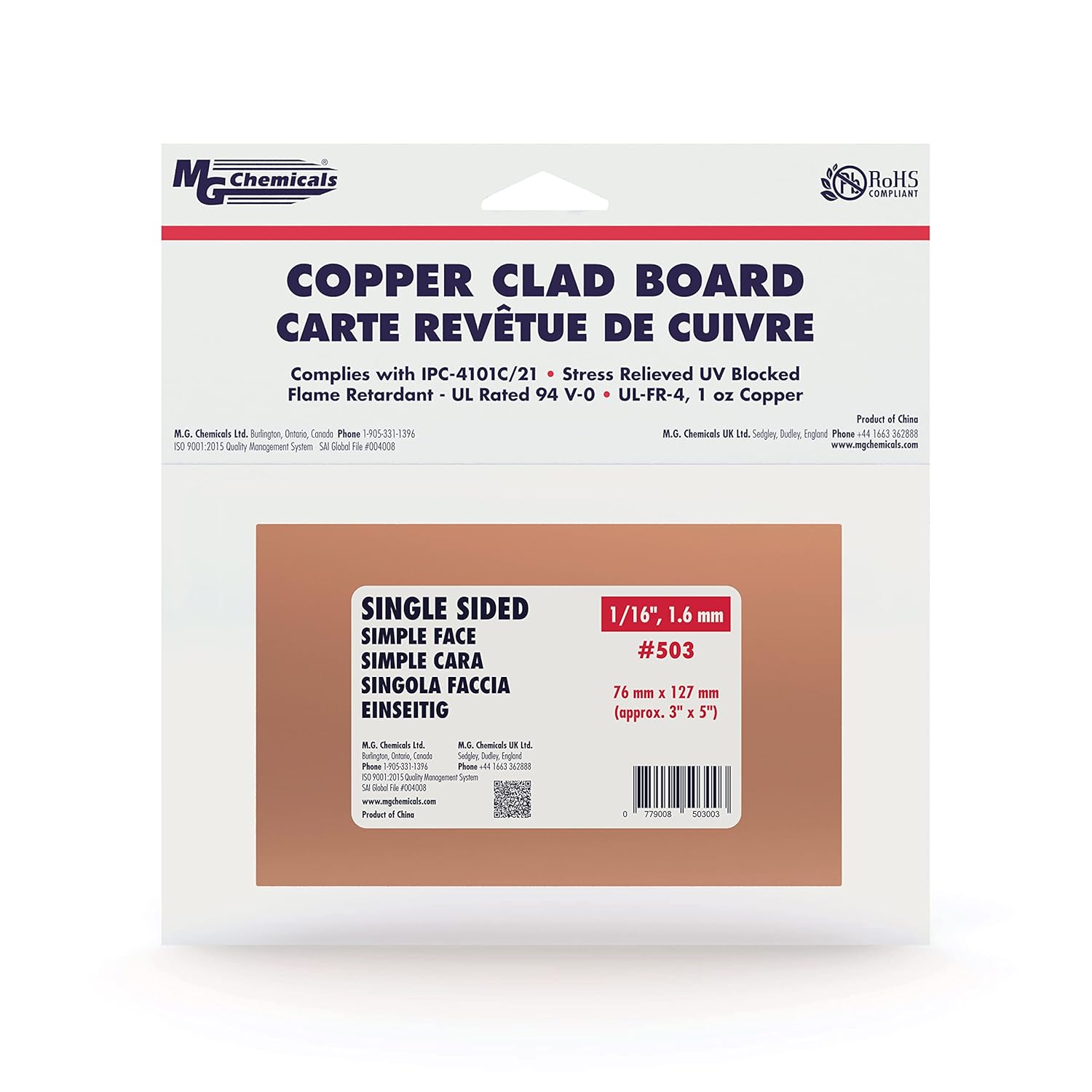

- Proto Board Type: Copper Clad, Uncoated
- Size / Dimension: 5.00" x 3.00" (127.0mm x 76.2mm)
- Board Thickness: 0.062" (1.57mm) 1/16"
- Material: Copper Clad FR4, Single Sided, 1 oz.
