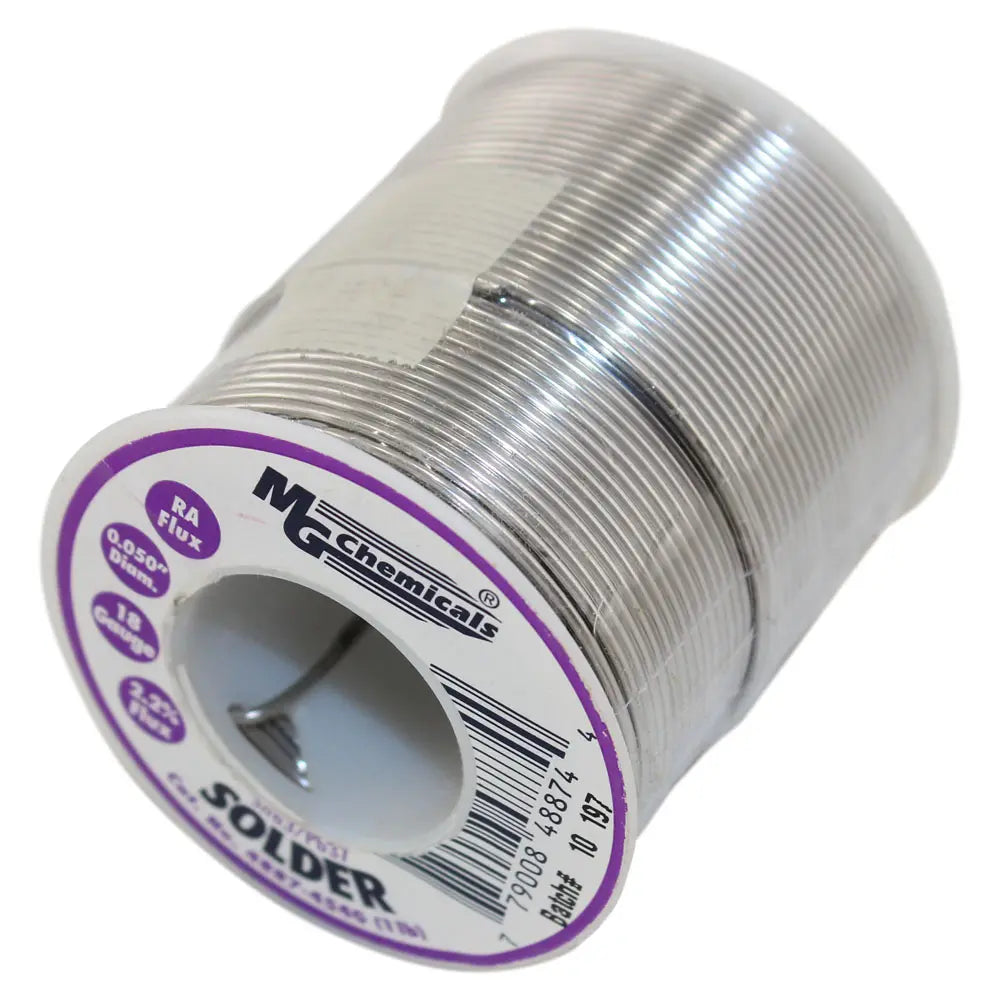

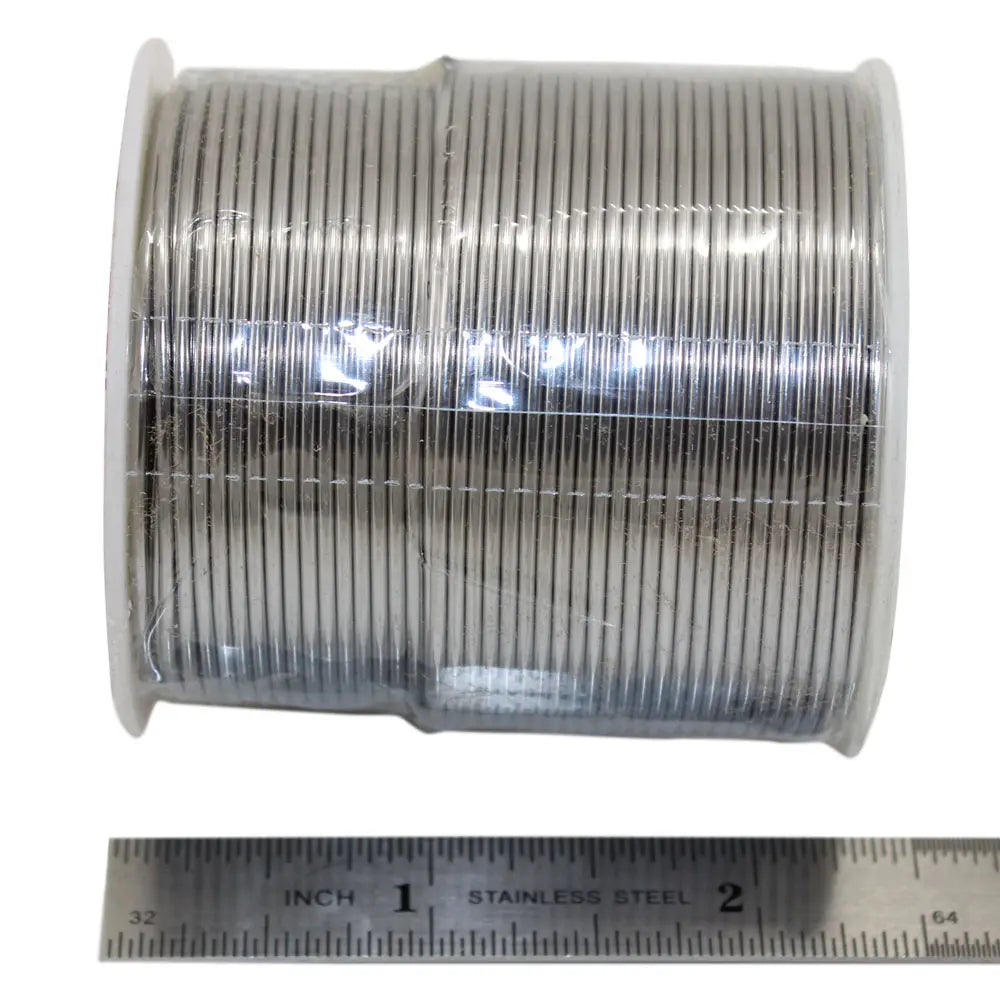

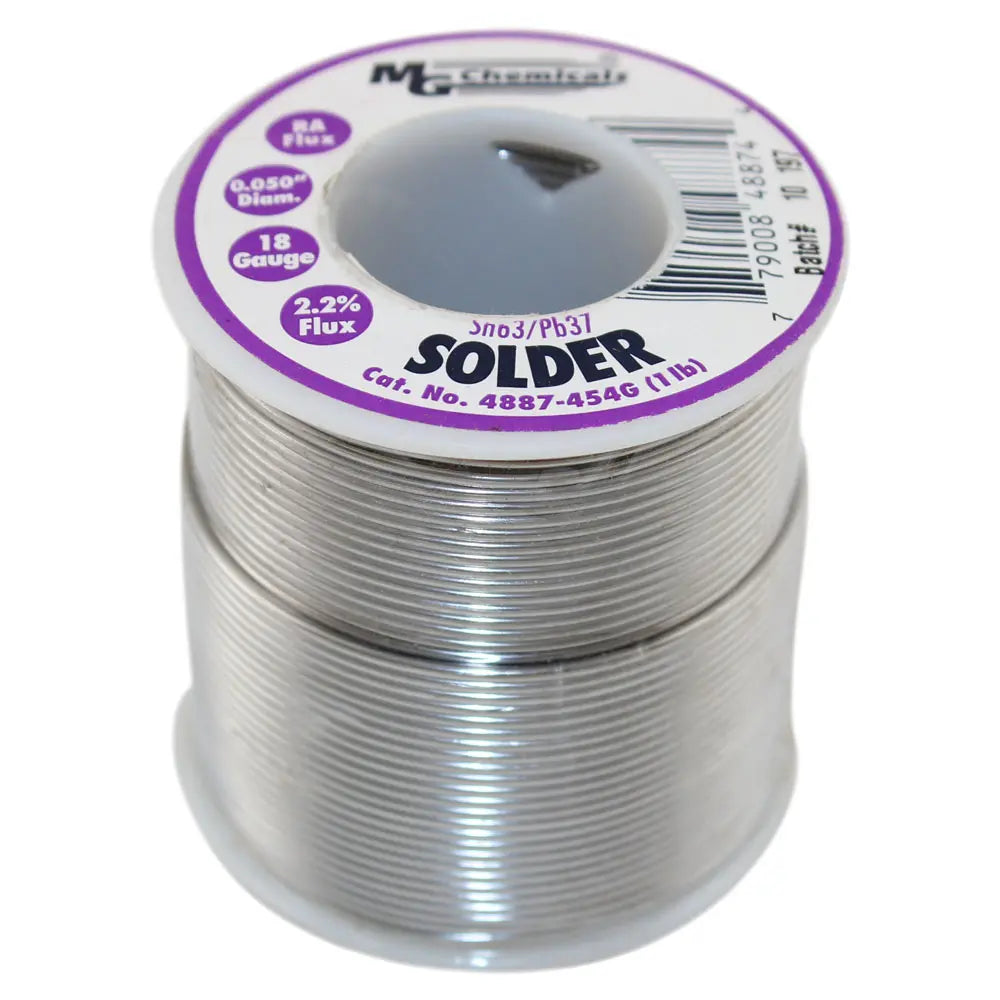

MG Chemicals 4887-454G is a 1 lb (454 g) spool of Sn63/Pb37 rosin core leaded solder wire, 0.050" (1.27 mm, 16 AWG) in diameter. 63/37 is a eutectic alloy, so it melts and solidifies sharply at 183°C (361°F), which makes it one of the easiest solders to work with. The rosin activated (RA) flux core wets and flows quickly and leaves a non-corrosive, non-conductive residue.
Key Features
- Eutectic Sn63/Pb37 alloy, sharp 183°C (361°F) melting point
- Rosin activated (RA) flux core: fast wetting and flowing
- Non-corrosive, non-conductive residue
- Alloy exceeds J-STD-006C and meets ASTM B 32; flux meets J-STD-004B
- Heavy 0.050" wire for larger joints and wires
Specifications
| Brand / model | MG Chemicals 4887-454G |
|---|---|
| Alloy | Sn63/Pb37 (leaded, eutectic) |
| Diameter | 0.050" (1.27 mm) |
| Wire gauge | 16 AWG / 18 SWG |
| Melting point | 183°C (361°F) |
| Flux type | Rosin activated (RA) |
| Form | Spool, 1 lb (454 g) |
| Shelf life | 60 months from manufacture |
| Storage | 50–86°F (10–30°C) |
| SKU | 06074887-454G |
What's Included
- 1 spool of MG Chemicals 4887 solder wire, 1 lb
Ideal For
Soldering heavier wires, terminals and connectors where a thick leaded solder speeds up the job.
Frequently Asked Questions
What does eutectic mean?
The alloy goes straight from liquid to solid at one temperature, with no pasty stage, which helps prevent disturbed joints.
Is 0.050" good for fine circuit board work?
It's a thick wire best for larger joints; thinner diameters are easier for small pads.
Contains lead (Sn63/Pb37 alloy).
