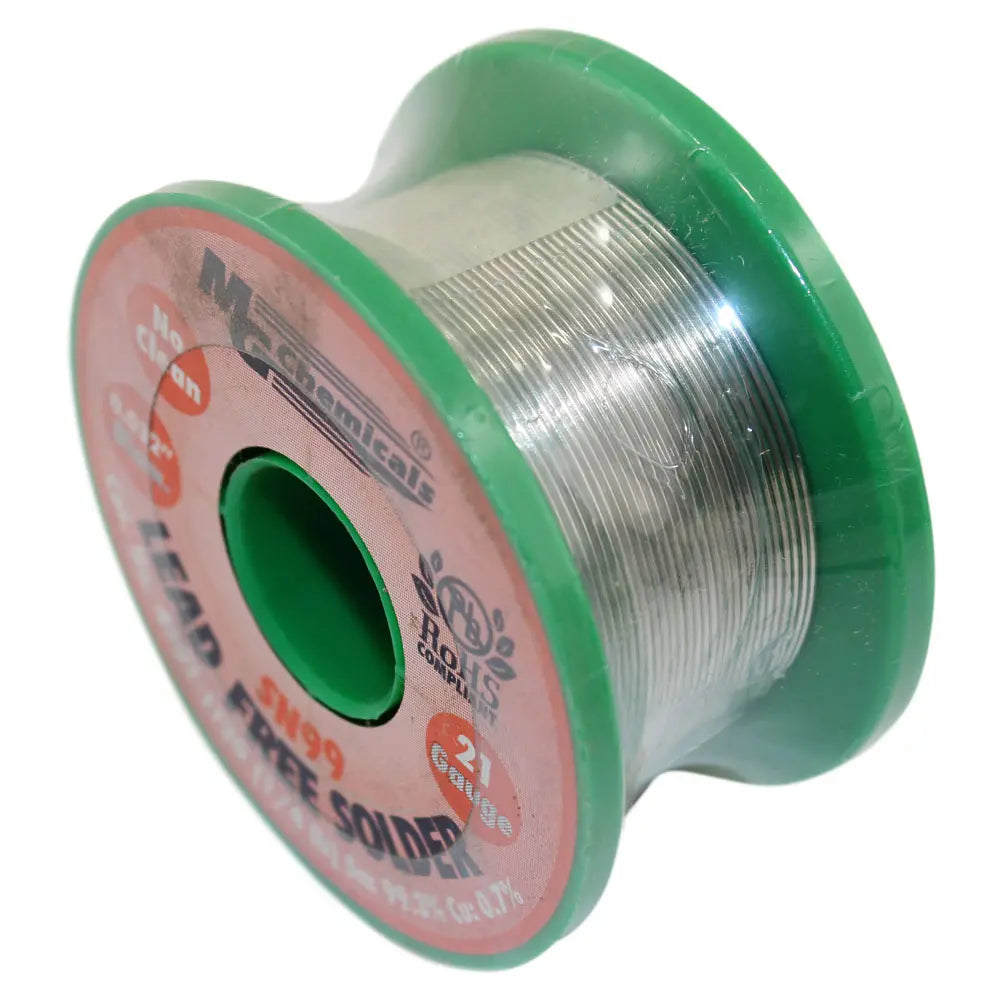

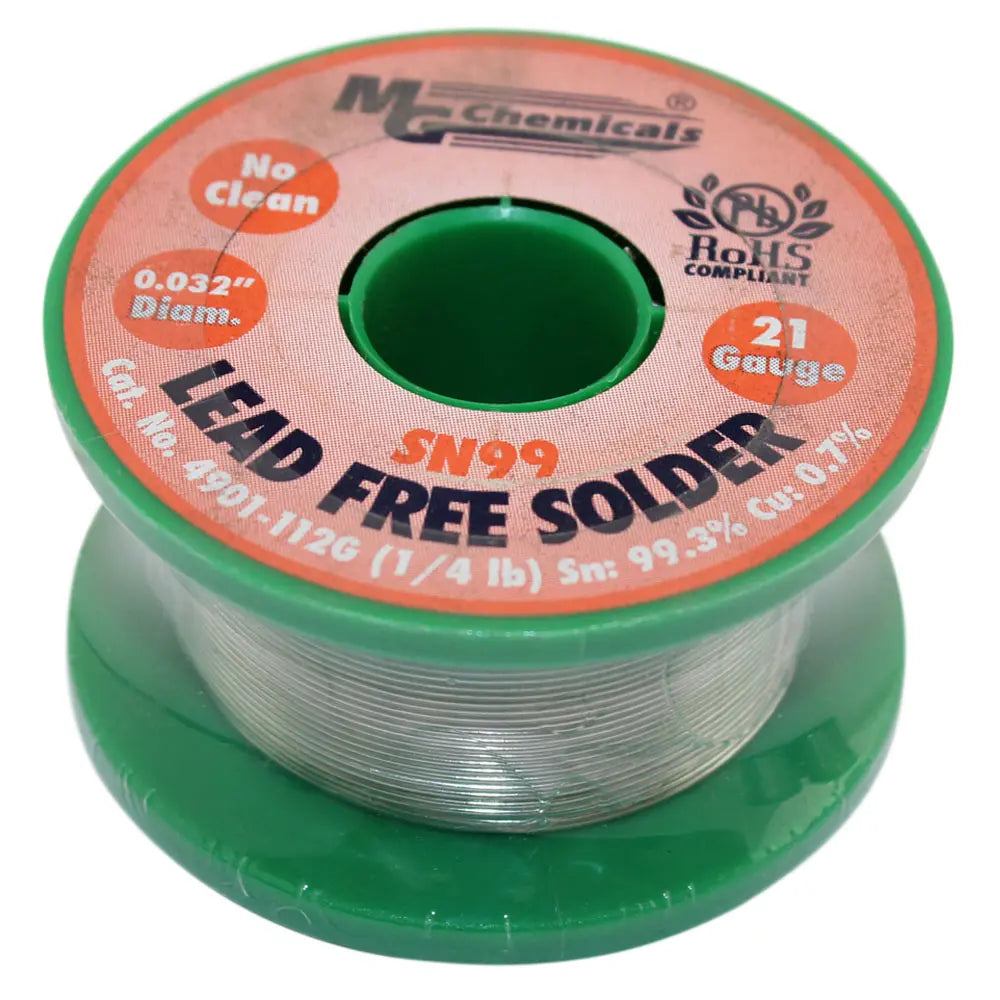

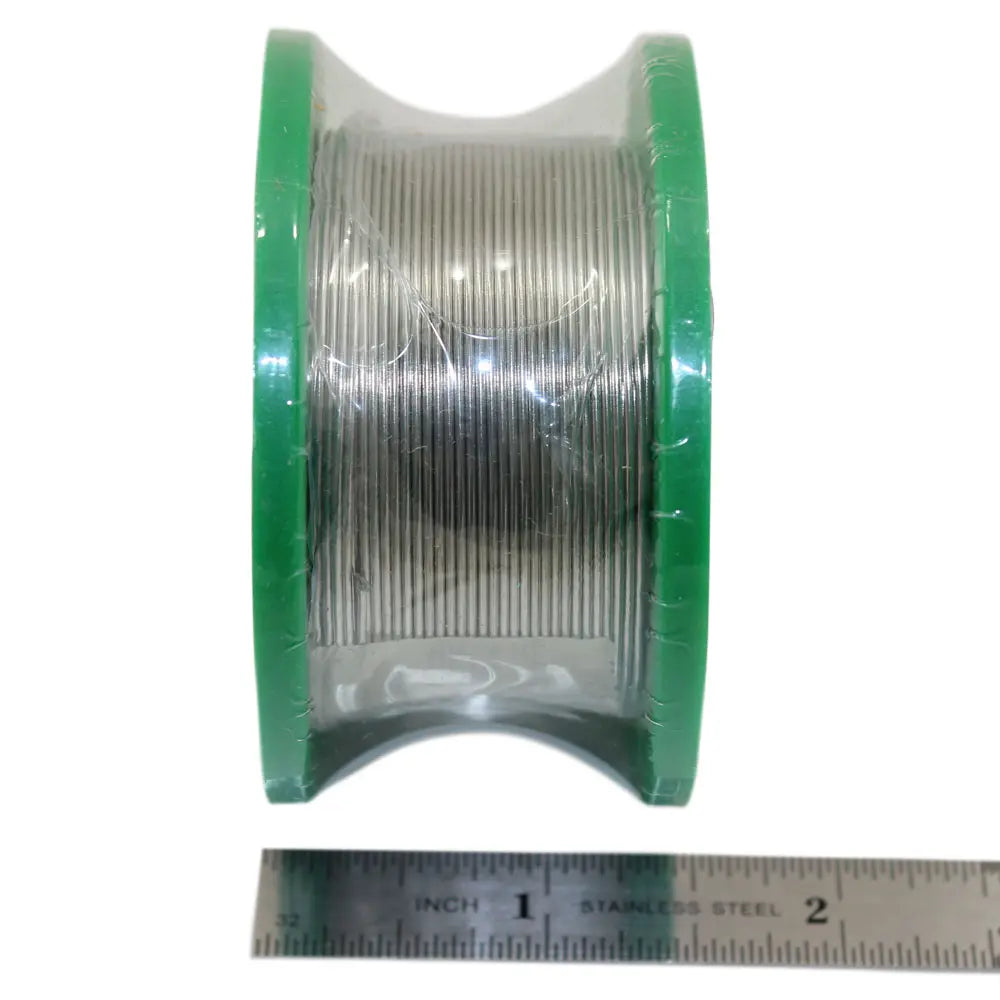

MG Chemicals 4901-112G is a 1/4 lb (4 oz) spool of Sn99.3/Cu0.7 no-clean lead-free solder wire, 0.032" (0.81 mm, 20 AWG) in diameter. The tin-copper alloy is eutectic, melting at 227°C (442°F), and the synthetic resin flux core spreads like a rosin-activated flux with virtually no spatter. Residue is non-corrosive and non-conductive.
Key Features
- Eutectic Sn99.3/Cu0.7 lead-free alloy, melts at 227°C (442°F)
- No-clean, halide-free resin flux core; virtually non-spattering
- Non-corrosive, non-conductive residue
- Alloy exceeds J-STD-006C and meets ASTM B 32; flux meets J-STD-004B
- Listed as suitable for use in food facilities as a non-food chemical
Specifications
| Brand / model | MG Chemicals 4901-112G |
|---|---|
| Alloy | Sn99.3/Cu0.7 (lead-free) |
| Diameter | 0.032" (0.81 mm) |
| Wire gauge | 20 AWG / 21 SWG |
| Melting point | 227°C (442°F) |
| Flux type | No-clean |
| Form | Spool, 4 oz (113.4 g) |
| Shelf life | 60 months |
| Storage | 50–86°F (10–30°C) |
| SKU | 06074901-112G |
What's Included
- 1 spool of MG Chemicals 4901 solder wire, 1/4 lb
Ideal For

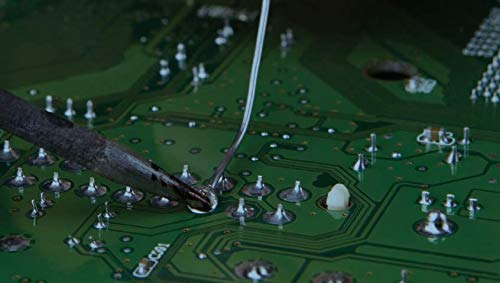

Lead-free electronics assembly and repair with a silver-free, no-clean solder.
Frequently Asked Questions
Why is tin-copper solder used?
It's a lead-free, silver-free alloy. It melts hotter than tin-lead solder, so use a temperature-controlled iron.
Is the flux residue a problem?
It's a no-clean flux, and the listing says the residue is non-corrosive and non-conductive.
