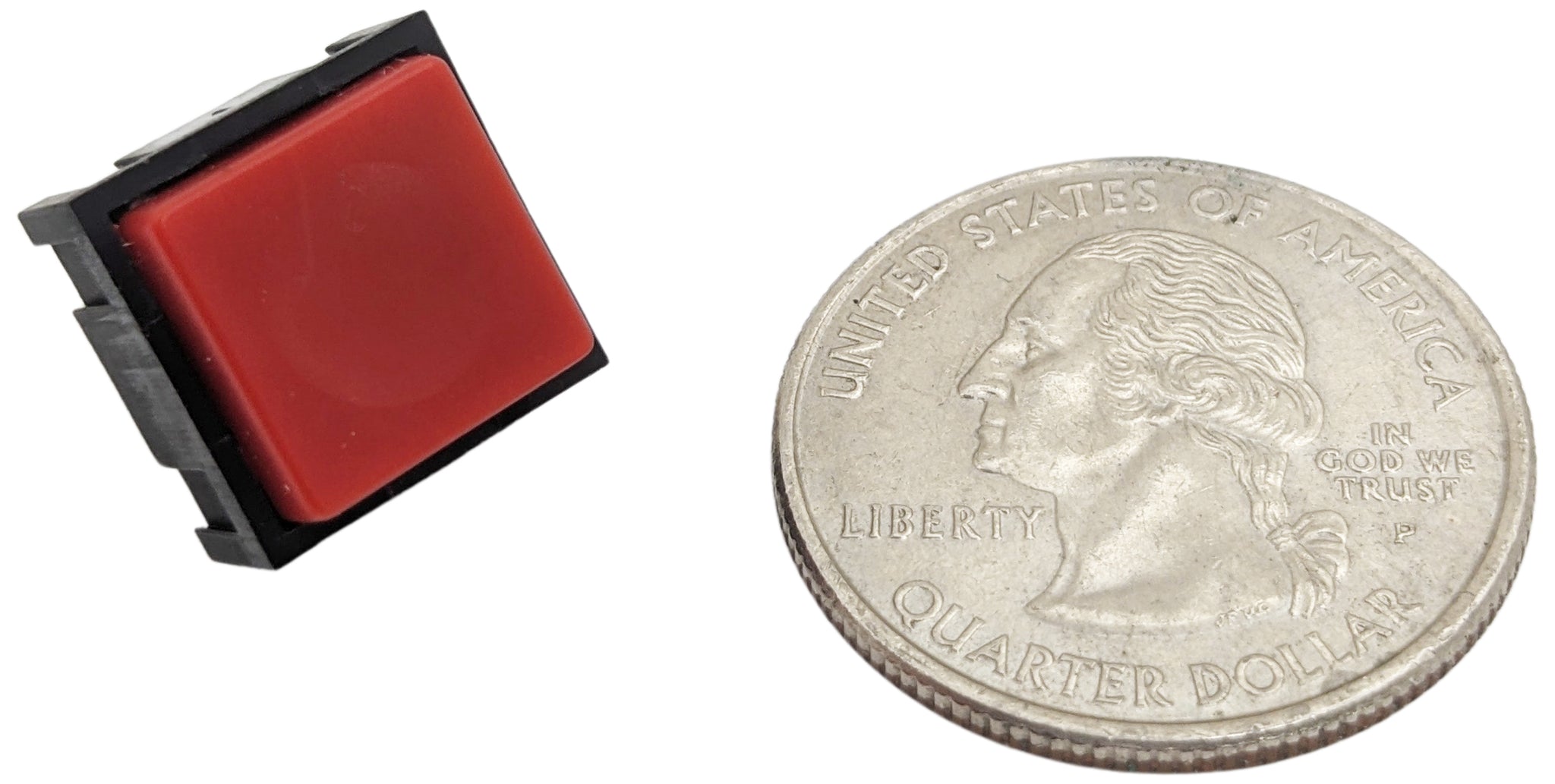

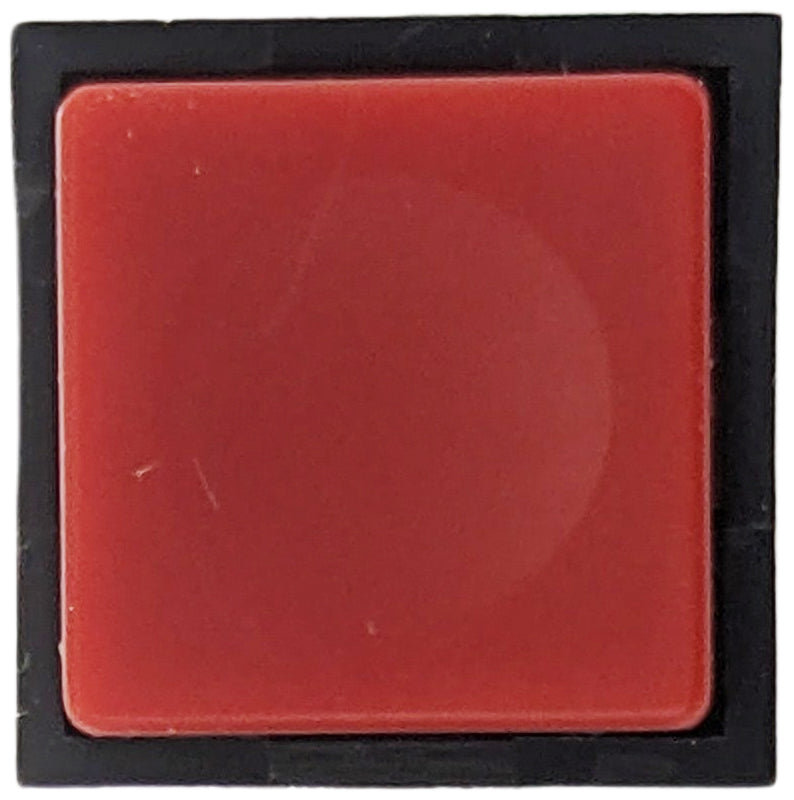

- Square SPST switch
- Number of pins: 2
- Body color: Black
- Button color: Red

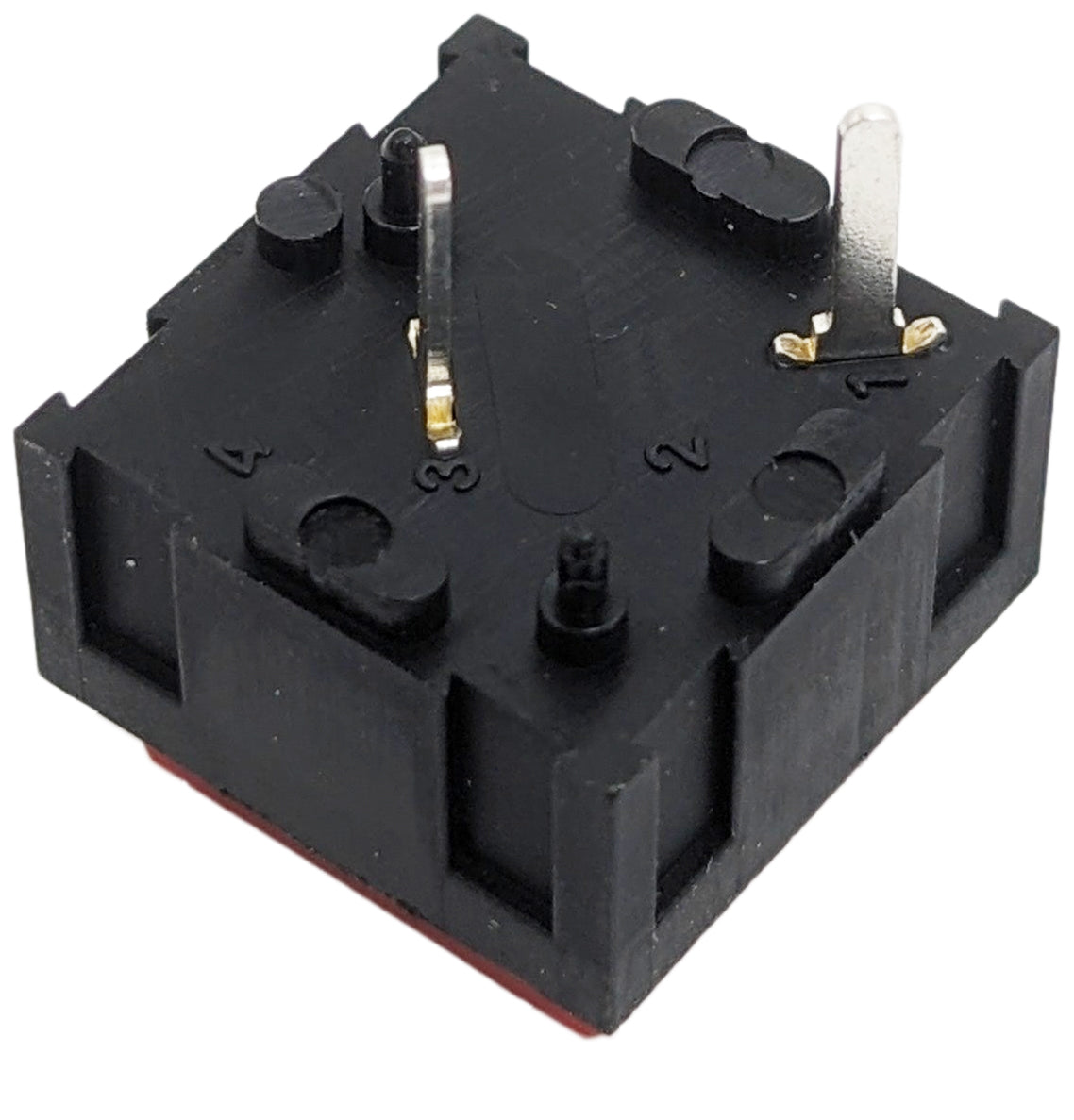

- Termination: PC Pins
- Measures 12.4mm x 12.4mm x 10.4mm (height not including leads)
Specifications:
Rating: 1A 125VAC
Insulation Resistance: 100MΩ min.
Contact Resistance: 30mΩ max.
Dielectric Strength: 500 VAC
Electrical Life: 40,000 cycles
Operating Force: 250±50g
