Momentary Tactile Push Button Switch, 2-Pin Through Hole Mount for PCB or Breadboard, Size 6x6x7mm

17DTS2P
$0.99
$0.99
Sold out
Shipping calculated at checkout.

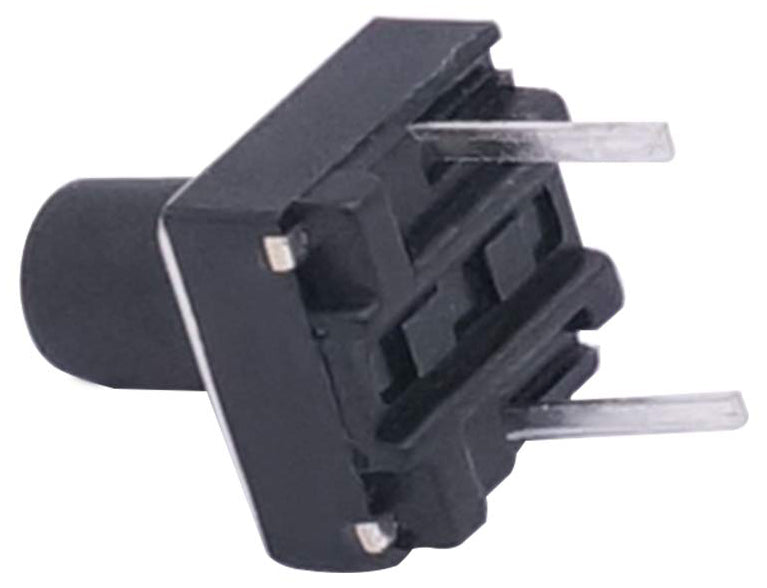

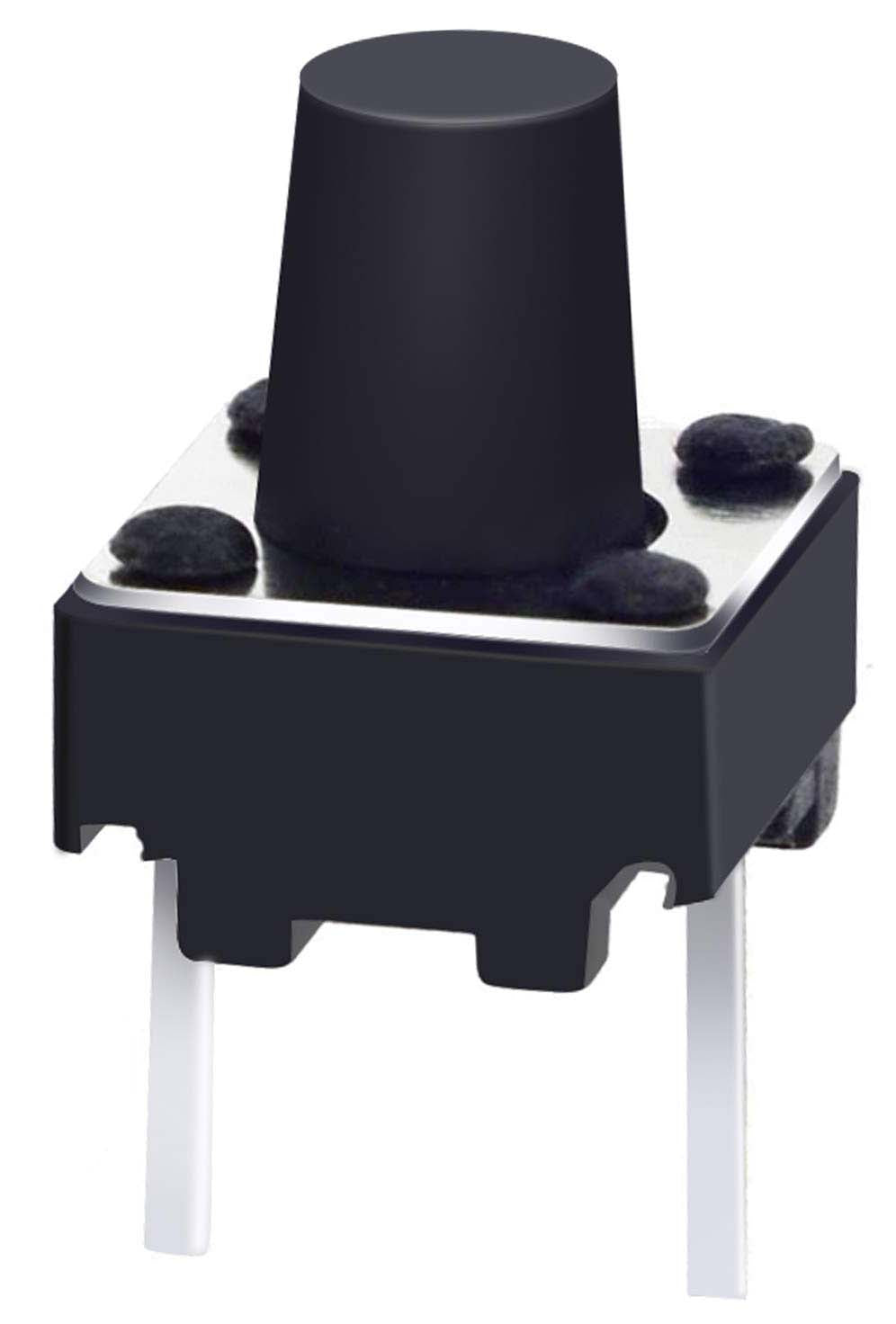

  • Tactile Push Button Switch with round black button
  • Total Size: 6 x 6 x 7mm / 0.24" x 0.24" x 27" (L*W*H)
  • Good tactile feel

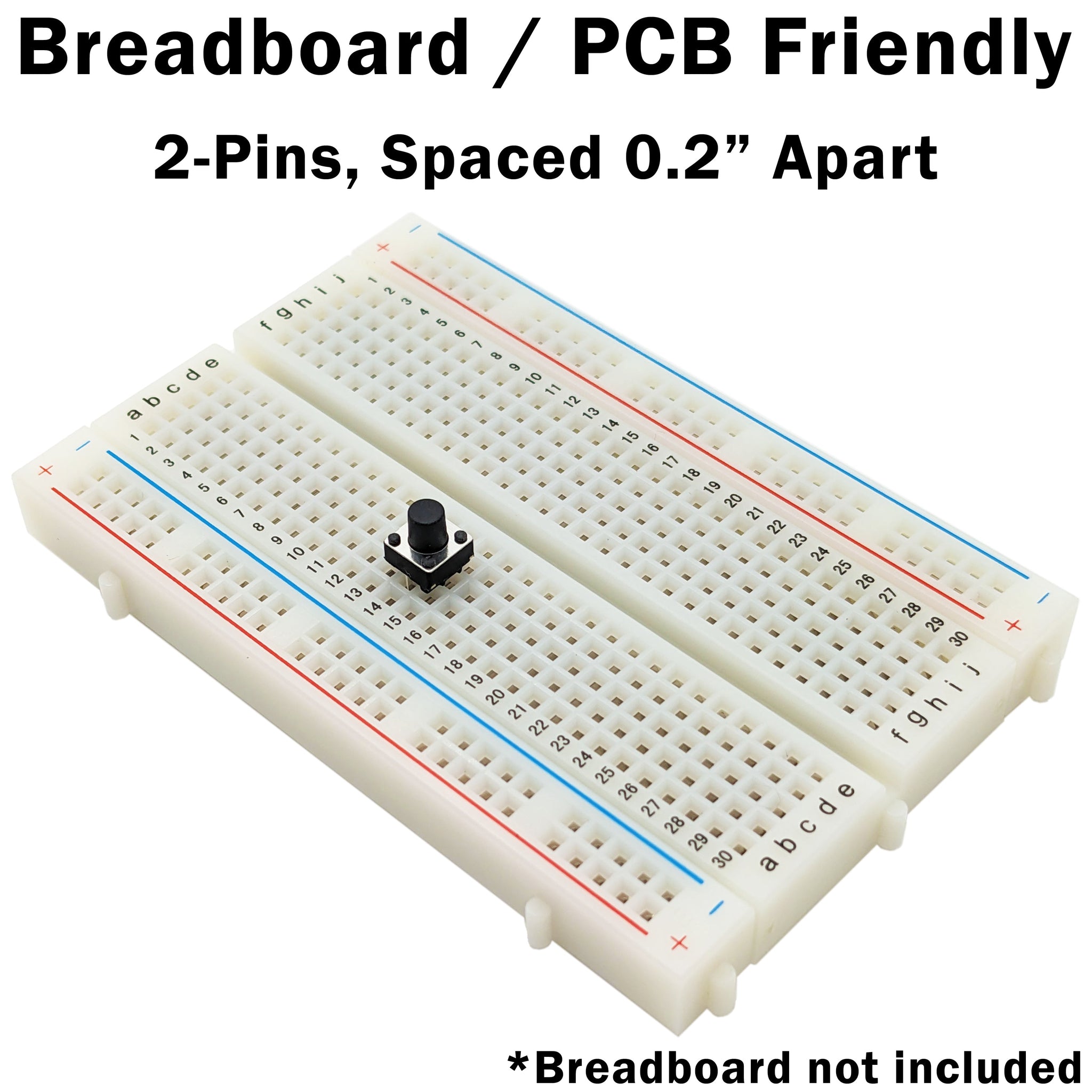

  • Breadboard friendly, 0.2" Pin Spacing
  • Operating temperature range: -25~85℃
  • Withstand Voltage: AC250V
  • Rated load: DC 12V 50mA
  • Contact resistance: 50mΩ MAX
  • Insulation Resistance: ≥100MΩ
  • Mechanical life: 100,000 times
  • Pin Length: 4.2mm / 0.16"
  • Material: Plastic, Metal
  • Color: Black, Silver
