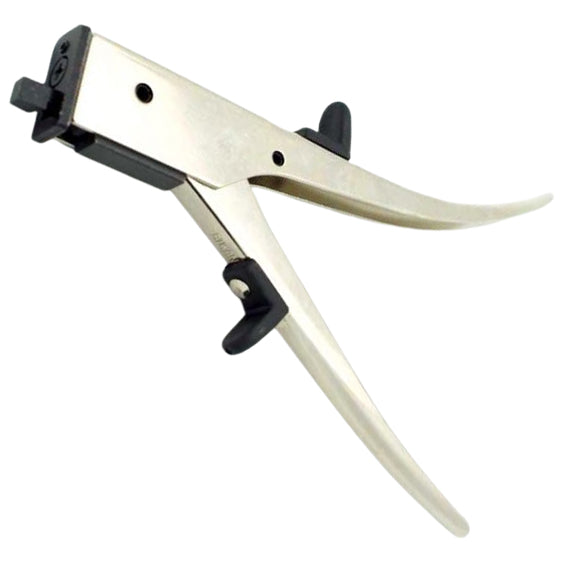

Nibbing Tool for Cutting Non-hardened Metals Up to 18 AWG

0602NT
Regular price
$19.99
Sale price
$19.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

This nibbing / cutter tool cuts aluminum, copper, and other non-hardened metals up to 18 AWG (0.5-1.2mm). Also suitable for cutting plastics up to 0.5-1.6mm thick. Cuts sheet metal like a pinch and die. Drill a 3/8" (or 9.5ψ) hole for starting cuts. Cuts round, square or irregular holes to any shape and size over 7/16". Features a nickel plated finish.

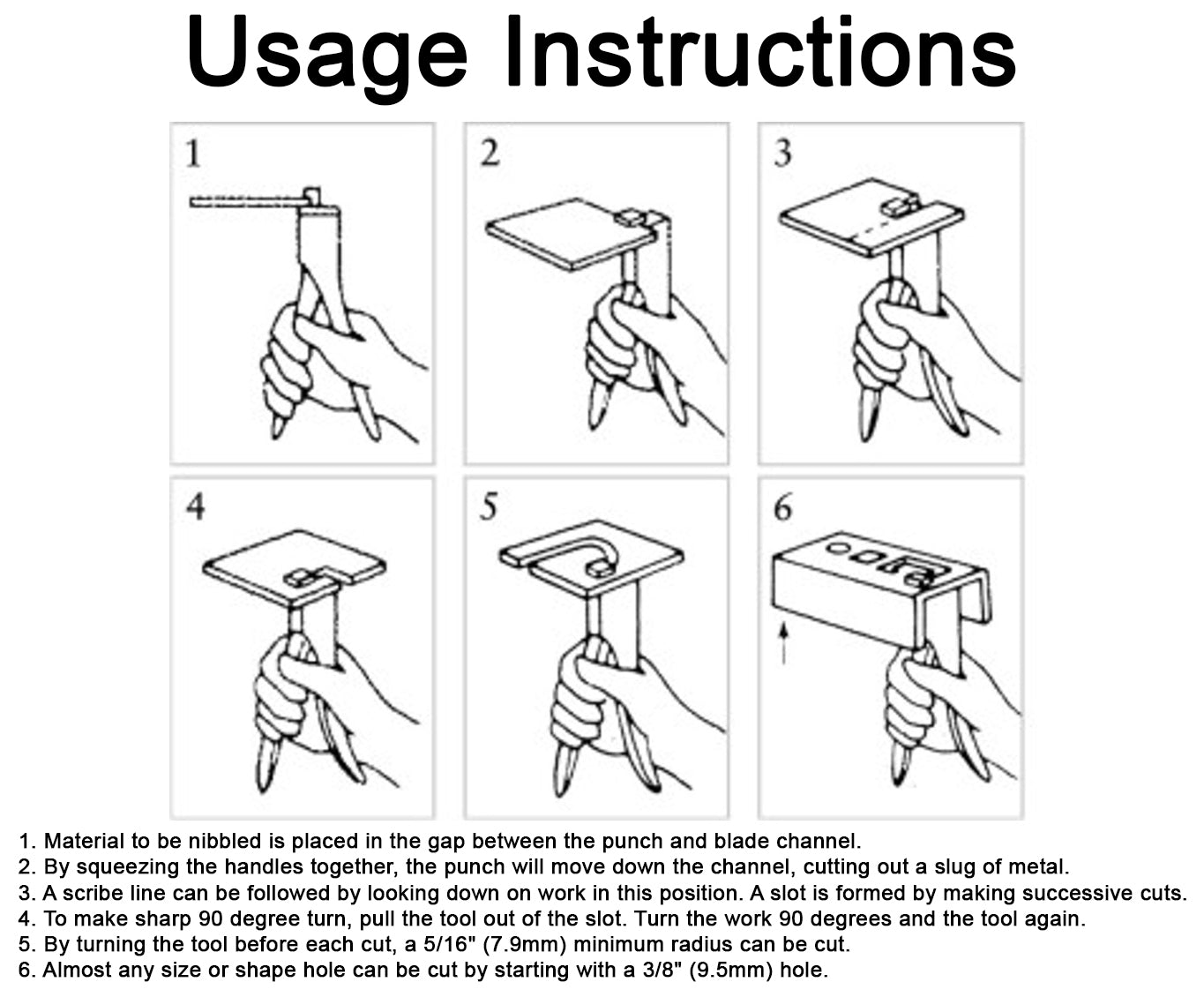

Usage Instructions:
1. Material to be nibbled is placed in the gap between the punch and blade channel.
2. By squeezing the handles together, the punch will move down the channel, cutting out a slug of metal.
3. A scribe line can be followed by looking down on work in this position. A slot is formed by making successive cuts.
4. To make sharp 90 degree turn, pull the tool out of the slot. Turn the work 90 degrees and the tool again.
5. By turning the tool before each cut, a 5/16" (7.9mm) minimum radius can be cut.
6. Almost any size or shape hole can be cut by starting with a 3/8" (9.5mm) hole.
