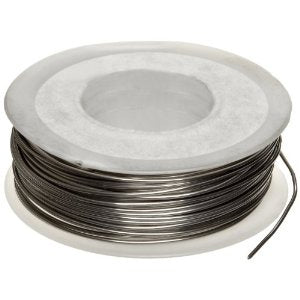

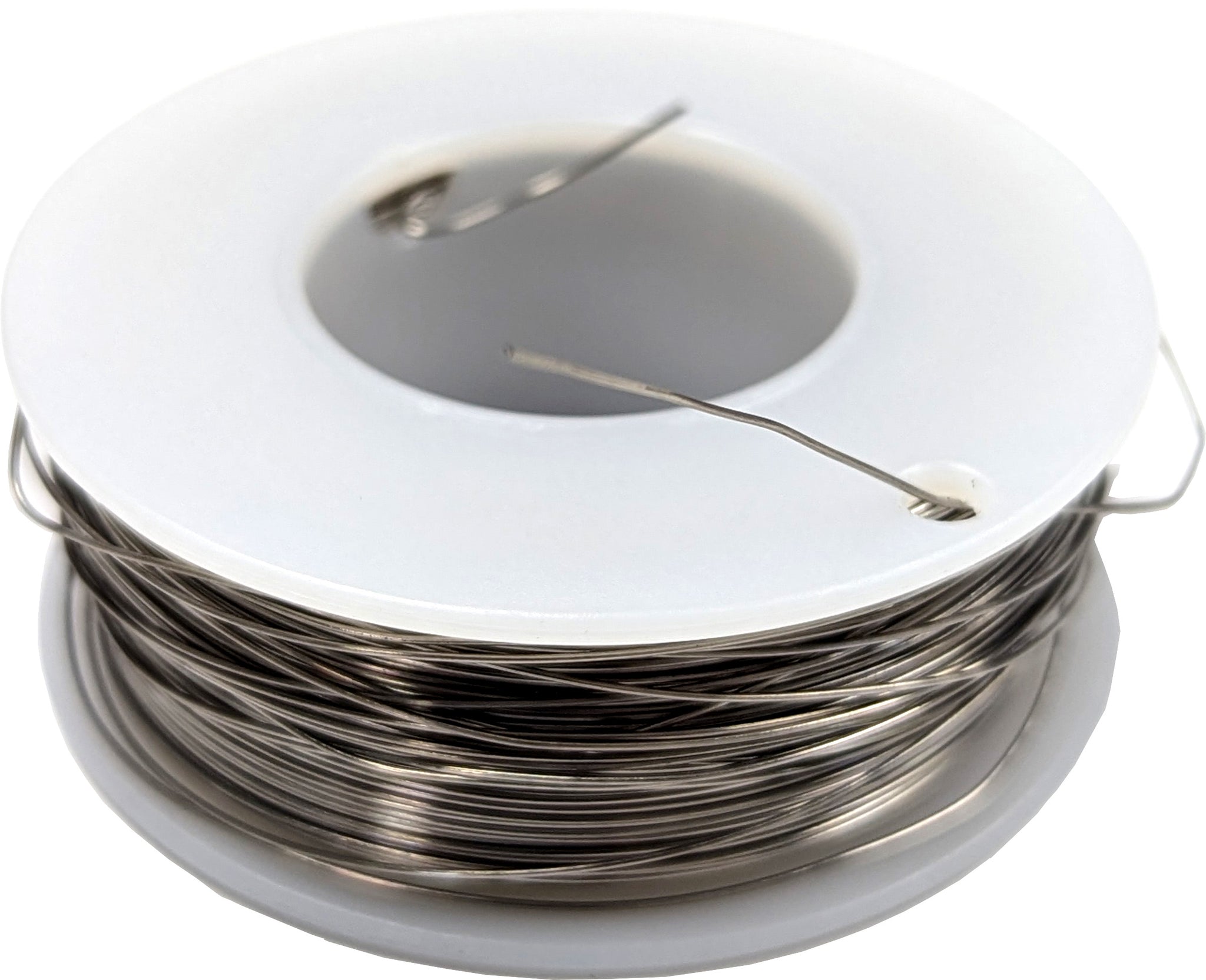

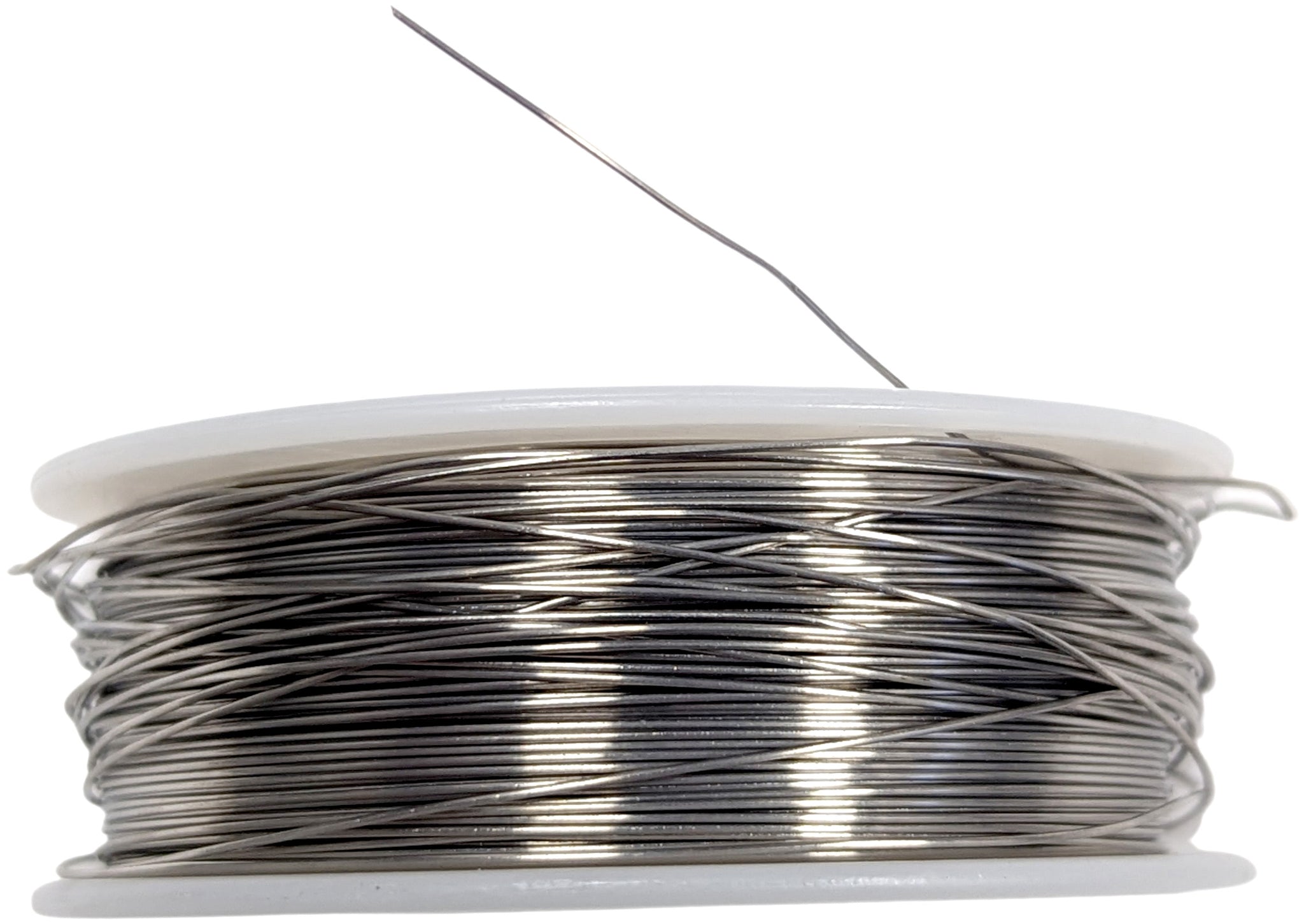

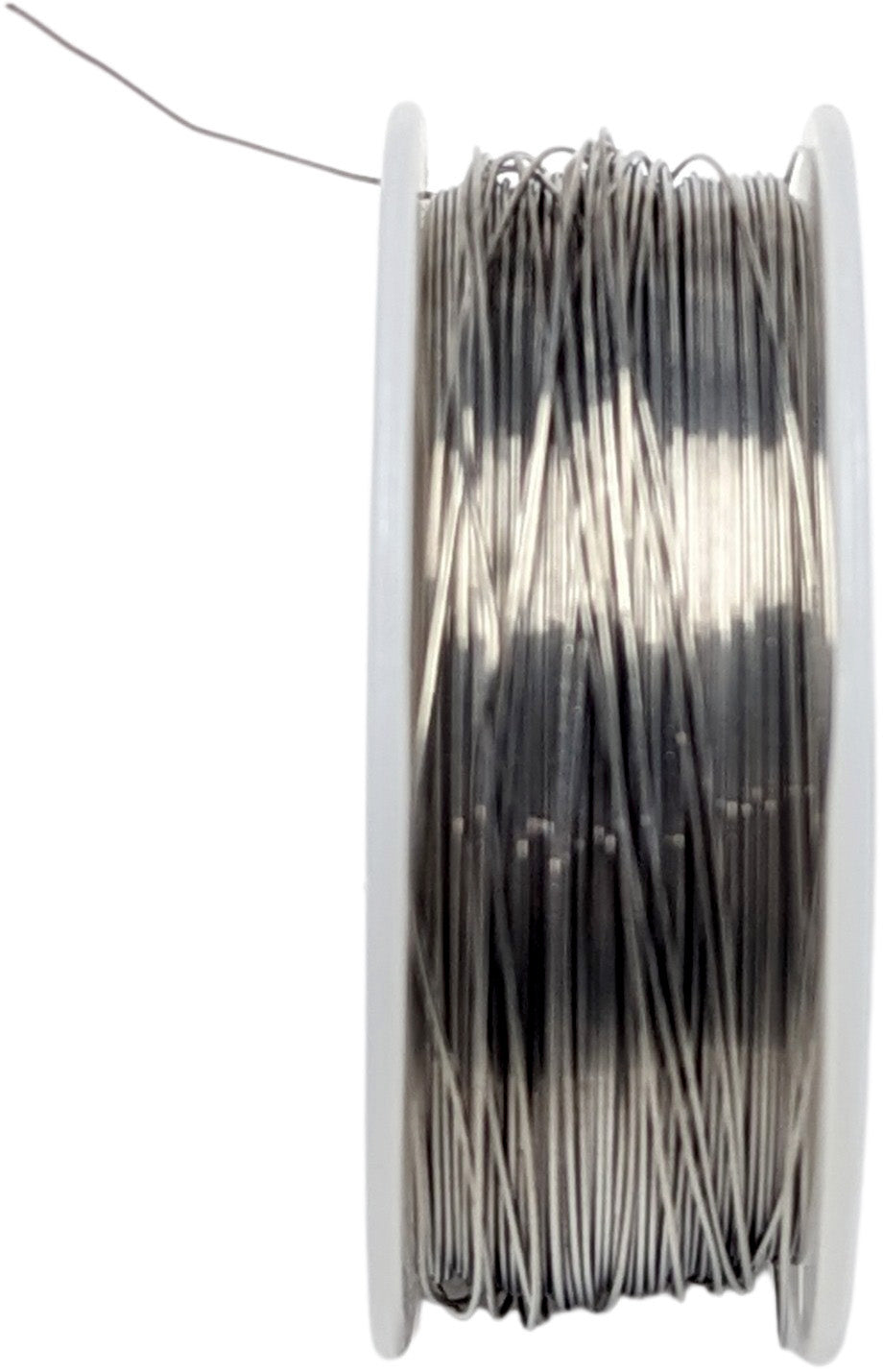

Nichrome Resistance Wire, 1/4 Lb Spool, 26 AWG, Composition: 60% Nickel, 16% Chromium and 24% Iron ASTM B267
Nichrome Resistance Wire, 1/4 Lb Spool, 26 AWG, Composition: 60% Nickel, 16% Chromium and 24% Iron ASTM B267
Nichrome Resistance Wire, 1/4 Lb Spool, 26 AWG, Composition: 60% Nickel, 16% Chromium and 24% Iron ASTM B267
Nichrome Resistance Wire, 1/4 Lb Spool, 26 AWG, Composition: 60% Nickel, 16% Chromium and 24% Iron ASTM B267
  • Load image into Gallery viewer, Nichrome Resistance Wire, 1/4 Lb Spool, 26 AWG, Composition: 60% Nickel, 16% Chromium and 24% Iron ASTM B267
  • Load image into Gallery viewer, Nichrome Resistance Wire, 1/4 Lb Spool, 26 AWG, Composition: 60% Nickel, 16% Chromium and 24% Iron ASTM B267
  • Load image into Gallery viewer, Nichrome Resistance Wire, 1/4 Lb Spool, 26 AWG, Composition: 60% Nickel, 16% Chromium and 24% Iron ASTM B267
  • Load image into Gallery viewer, Nichrome Resistance Wire, 1/4 Lb Spool, 26 AWG, Composition: 60% Nickel, 16% Chromium and 24% Iron ASTM B267

Nichrome Resistance Wire, 1/4 Lb Spool, 26 AWG, Composition: 60% Nickel, 16% Chromium and 24% Iron ASTM B267

27BNC26-1
Regular price
$29.99
Sale price
$29.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

Specifications:

  • Solid soft drawn and annealed, Composition: 60% Nickel, 16% Chromium and 24% Iron ASTM B267
  • Nichrome 60 (Chromel C)
  • 26 AWG Wire
  • 1/4 Lb Spool
  • Diameter: .0159 (inches)/.404 (mm)
  • Nominal impedance: 2.667 Ohms/Feet
  • Max. Operating Temperature: 1148°C (2100°F)
  • Melting Point: 1350°C (2462°F)
  • Tensile Strength: 100-120 KSI
  • Yield: 45-55 KSI
  • Elongation: 20%
  • Element resistance at 68F (Ohms)
  • Density .298 lbs/cubic in.

Applications:

  • Suitable for electric heating elements or applications that need corrosion resistance
