4N25 Optocoupler, Infrared LED to NPN Phototransistor, 6-Pin DIP

084N25
Regular price
$0.59
Sale price
$0.59
Regular price
$0.55
Sold out
Unit price
per
Shipping calculated at checkout.

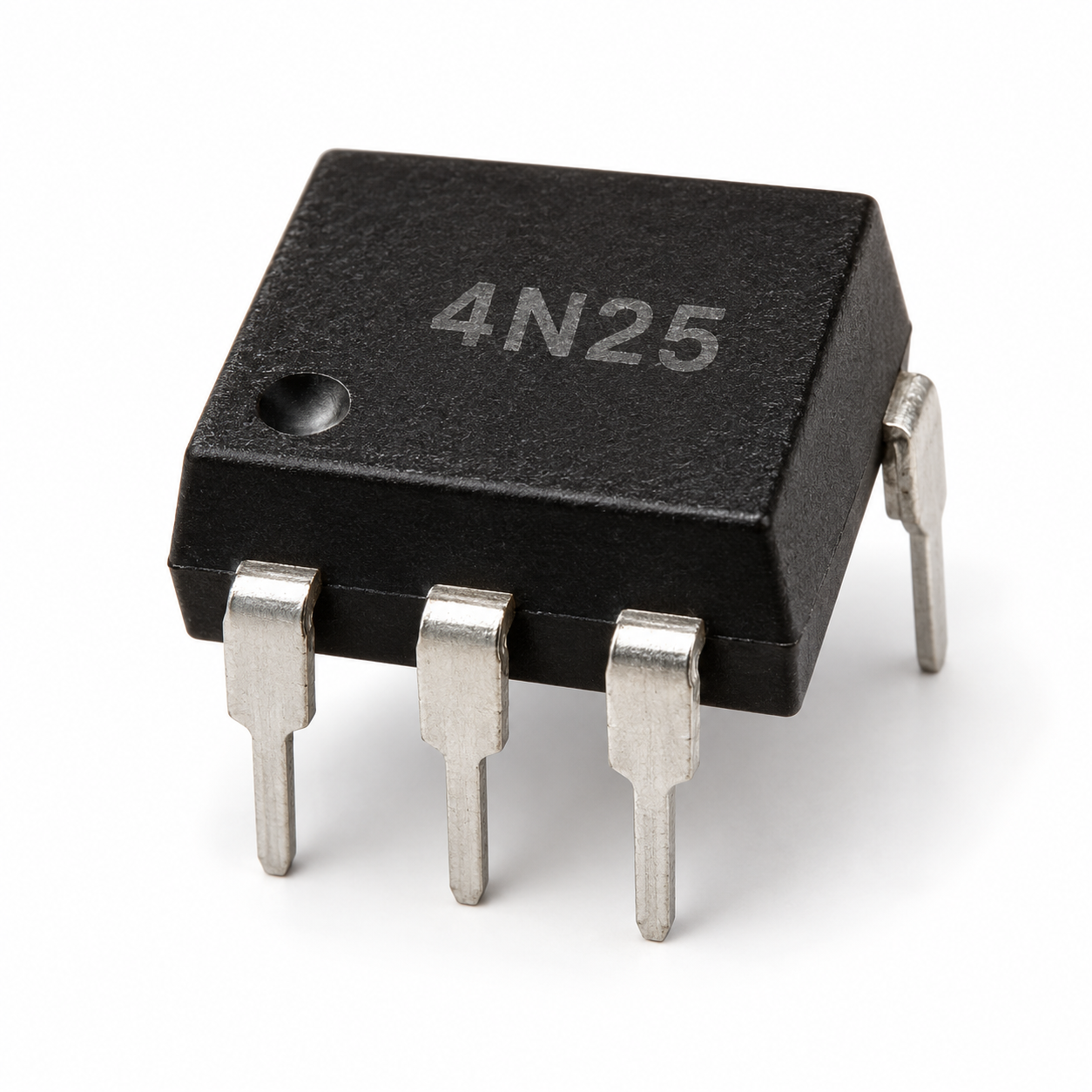

The 4N25 is an optocoupler that passes signals between electrically isolated circuits using an infrared LED and an NPN phototransistor. It comes in a 6-pin DIP package that fits breadboards, sockets and circuit boards. It suits prototyping, electronics education and repairs.

Key Features

  • Infrared LED input, NPN phototransistor output
  • Transfers signals between electrically isolated circuits
  • 6-pin DIP package
  • Fits breadboards, IC sockets and circuit boards
  • For logic isolation, control interfaces and power supply feedback

Specifications

Part number 4N25
Type Optocoupler, phototransistor output
Input Infrared LED
Output NPN phototransistor

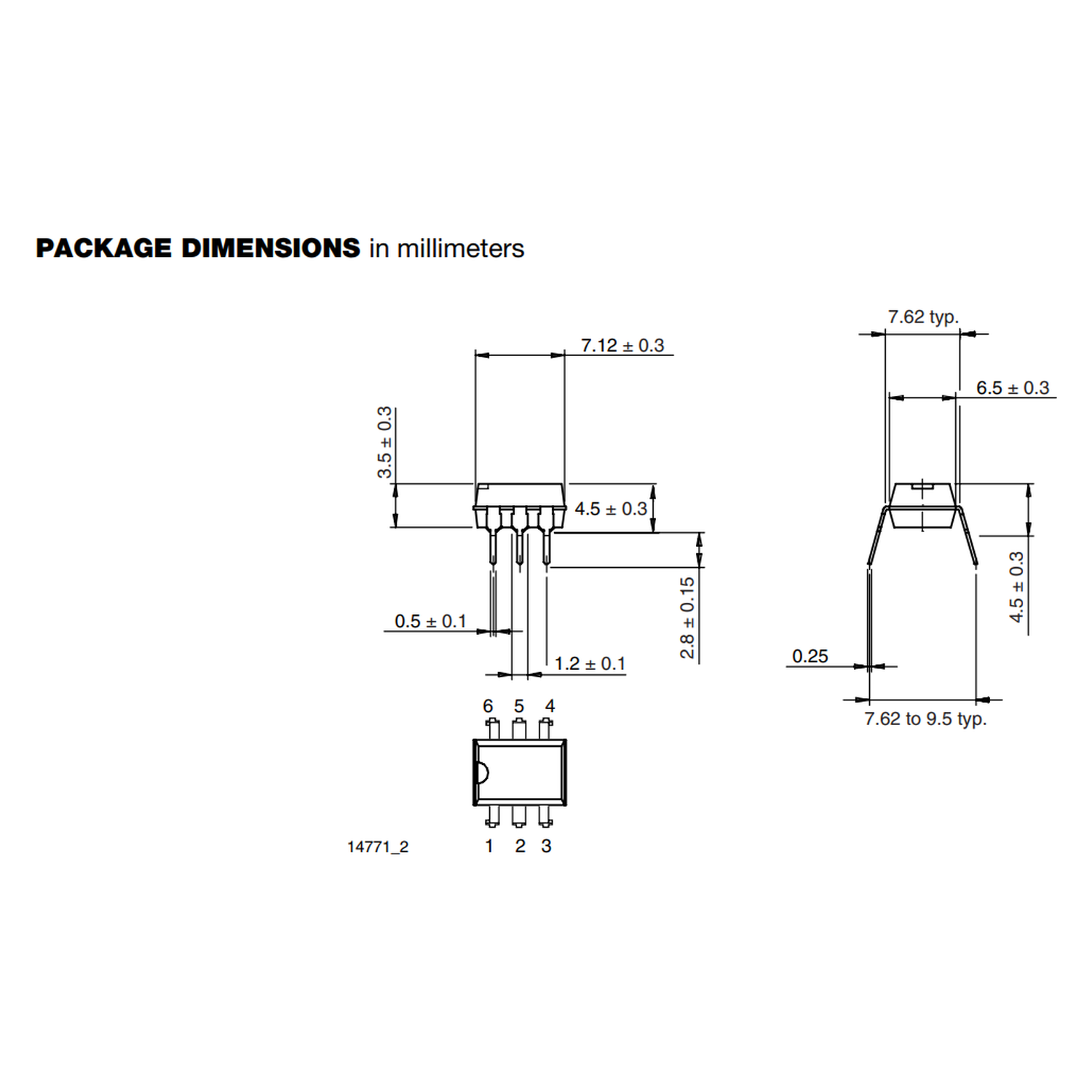

Package 6-pin DIP
SKU 084N25

What's Included

  • 1 4N25 optocoupler

Ideal For

Isolating a microcontroller from a higher-voltage or noisy circuit.

Frequently Asked Questions

What does an optocoupler do?
It sends a signal across a light path inside the chip, so the input and output sides have no direct electrical connection.

Is it breadboard friendly?
Yes, the 6-pin DIP package fits standard breadboards and IC sockets.
