Orange 1000 Feet, UL 1007/1569, 24 Gauge Solid Hook Up Wire (Tinned Copper), 300V Rating, 80ºC Temperature Rating
Orange 1000 Feet, UL 1007/1569, 24 Gauge Solid Hook Up Wire (Tinned Copper), 300V Rating, 80ºC Temperature Rating
  • Load image into Gallery viewer, Orange 1000 Feet, UL 1007/1569, 24 Gauge Solid Hook Up Wire (Tinned Copper), 300V Rating, 80ºC Temperature Rating
  • Load image into Gallery viewer, Orange 1000 Feet, UL 1007/1569, 24 Gauge Solid Hook Up Wire (Tinned Copper), 300V Rating, 80ºC Temperature Rating

Orange 1000 Feet, UL 1007/1569, 24 Gauge Solid Hook Up Wire (Tinned Copper), 300V Rating, 80ºC Temperature Rating

2700324OR
Regular price
$54.99
Sale price
$54.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

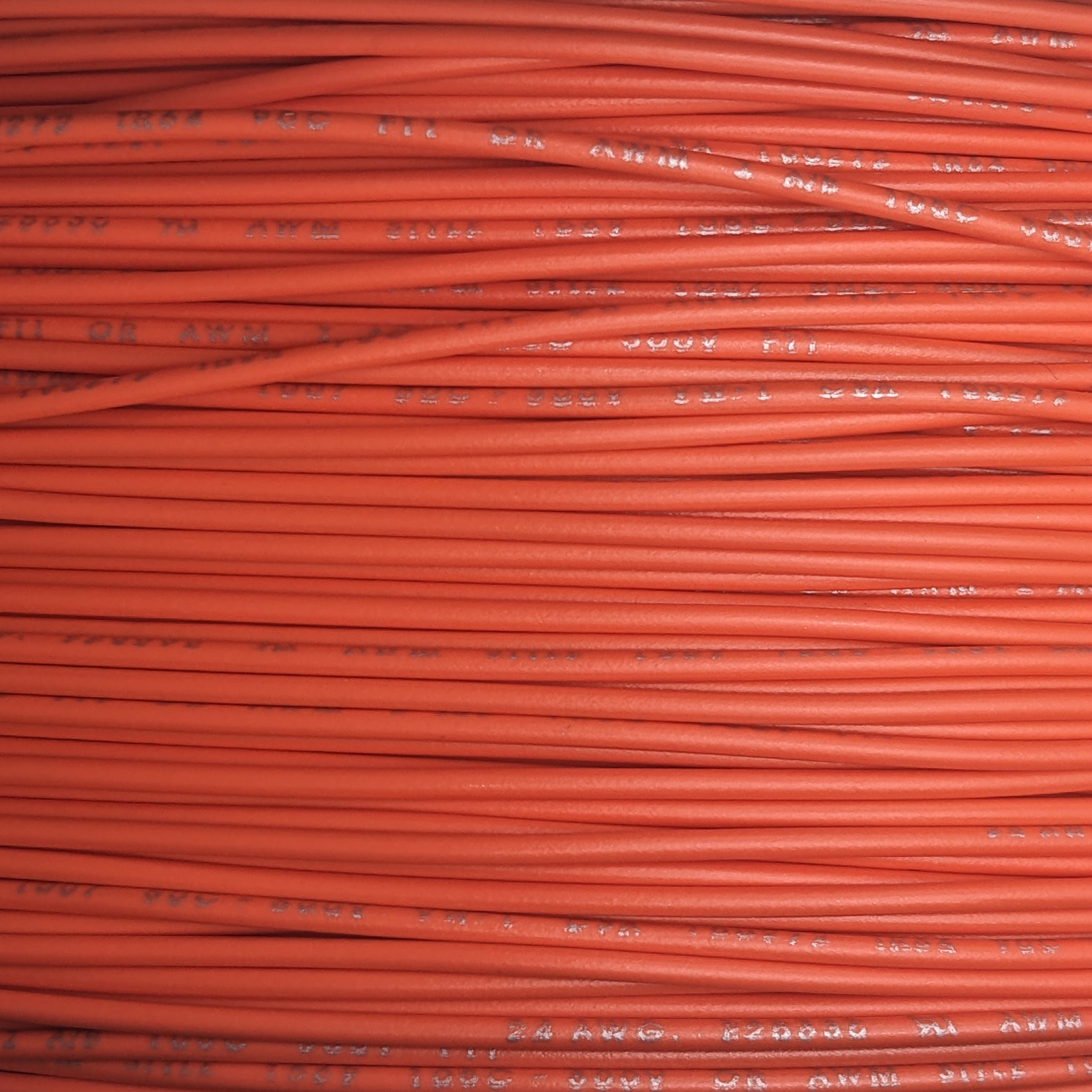

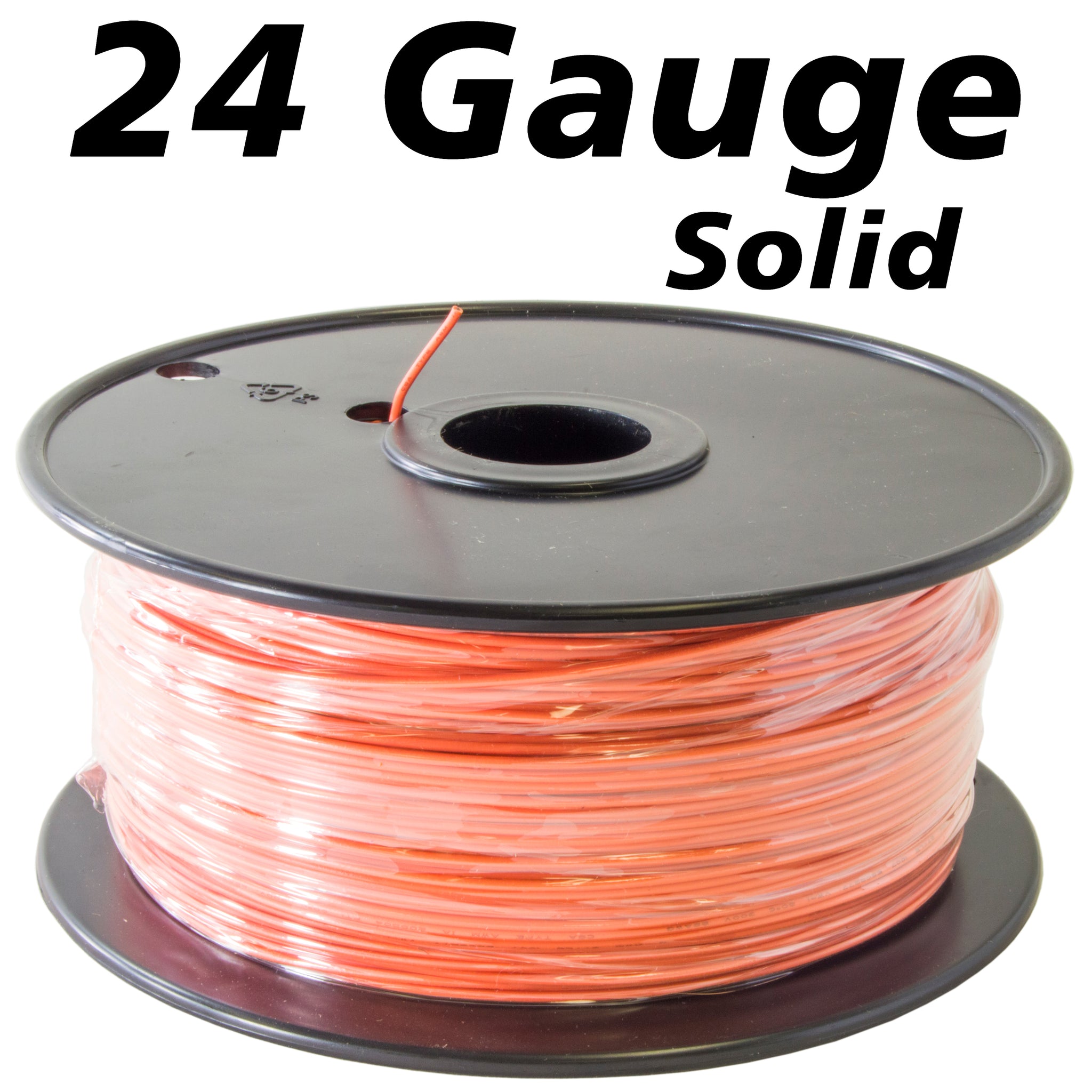

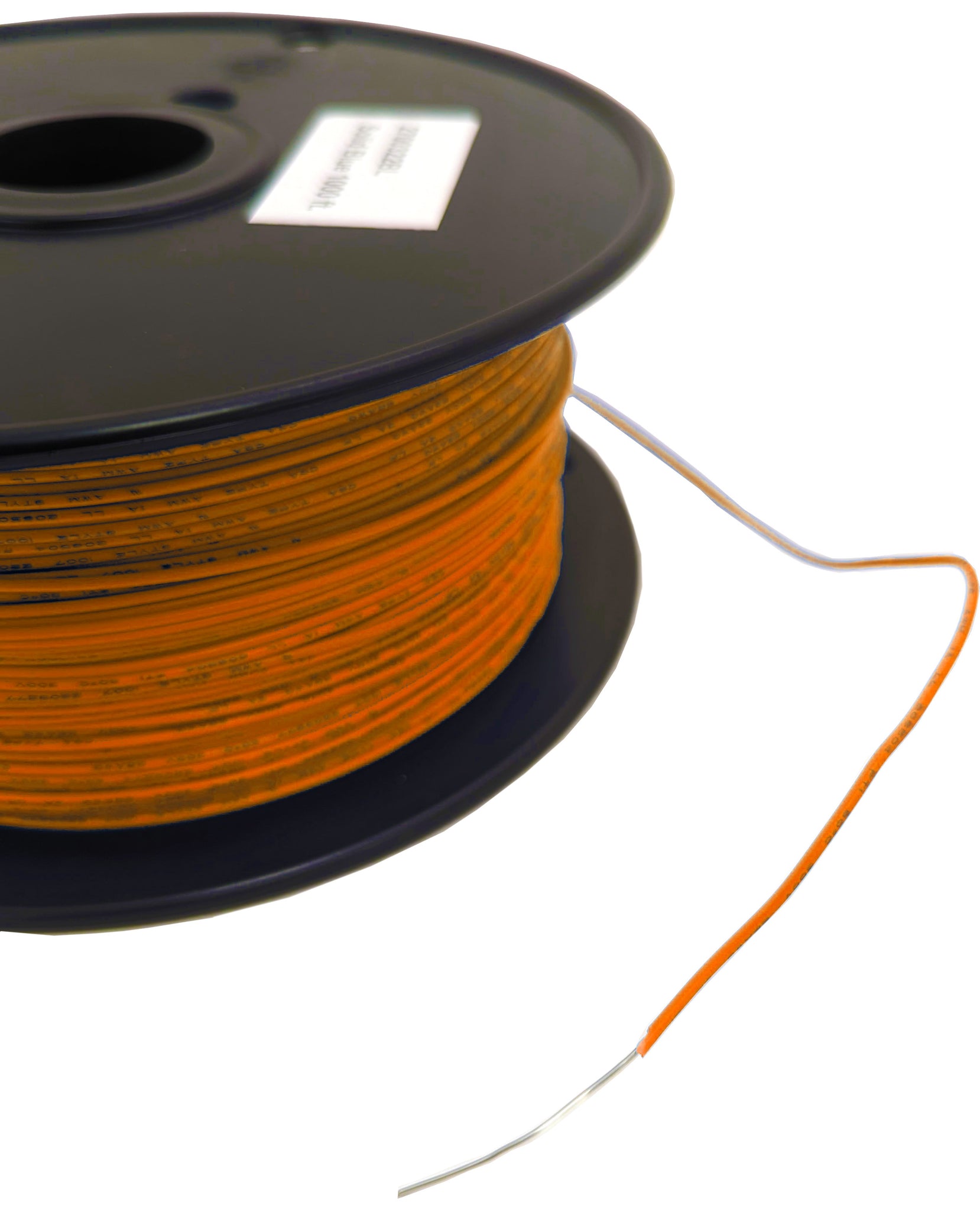

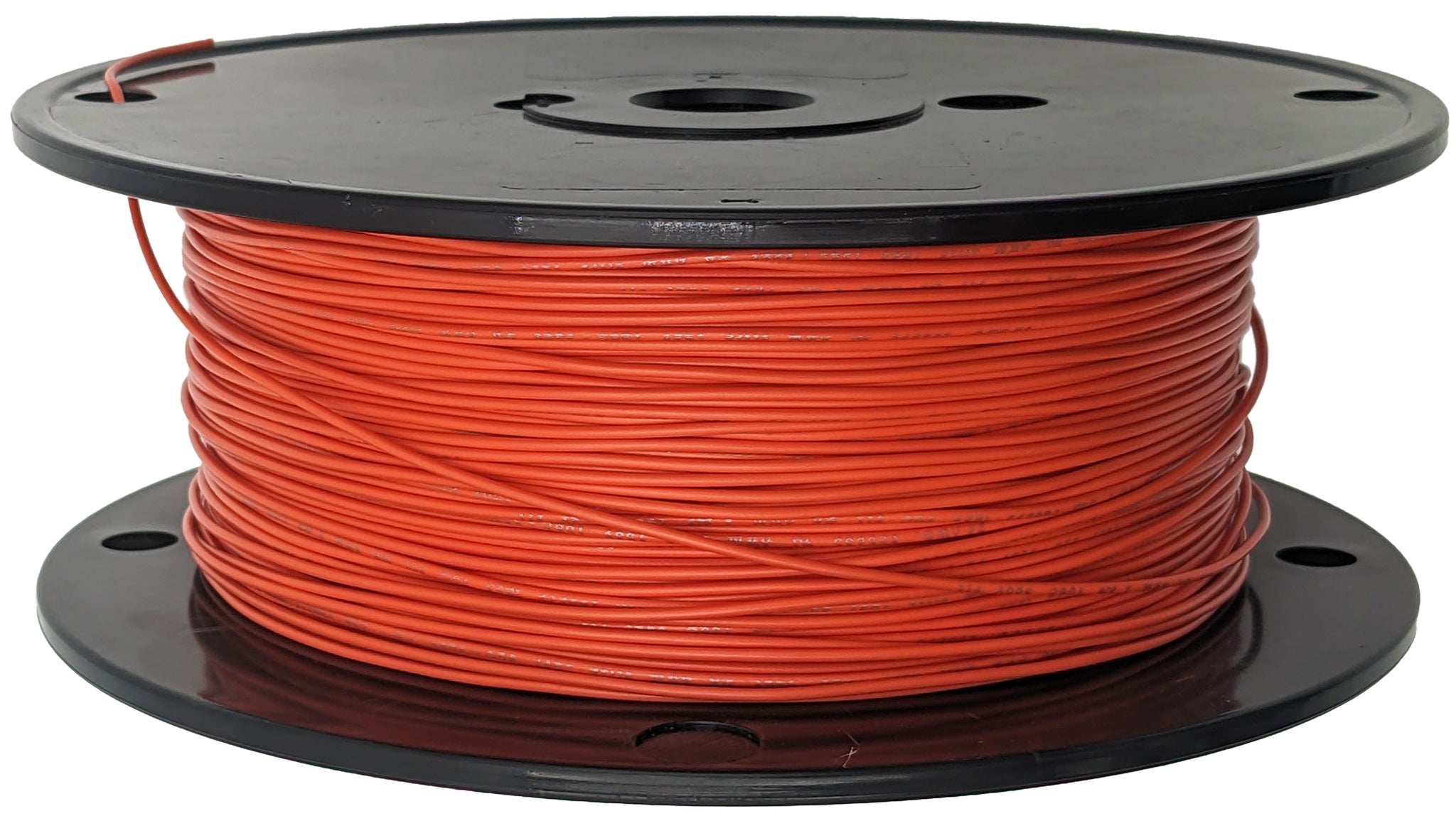

This 24 AWG, Orange wire is crafted with Tinned Copper and PVC insulation. It has a voltage rating of 300V and can be used in temperatures of up to 80ºC. Additionally, the insulation thickness is 0.016 inches, the outside diameter is 0.057 inches, and the weight is 0.0024 lbs per ft. The product is also ROHS Compliant. Ideal for general internal wiring, this wire is perfect for wiring of meters, panels, electrical, and electronic equipment.


Specifications:

  • Size: 24 AWG
  • Color: Orange
  • Conductor Material: Tinned Copper
  • ROHS Compliant
  • Insulation Material: Polyvinyl Chloride (PVC)
  • Voltage: 300V
  • Temp: 80ºC
  • Insulation Thickness: 0.016 inches
  • Outside Diameter: 0.057 inches
  • Weight: 0.0024 lbs per ft

Standards:

  • UL 1007/1569
  • CSA TR-64

Applications:

  • For general purpose internal wiring
  • Internal wiring of meters, panels, electrical and electronic equipment
