Parallax PIR Motion Sensor Rev B (555-28027) – Passive Infrared, 15 or 30 ft Range, ~90° Field of View, 3–6 VDC

32PX555-28027*
Regular price
$19.99
Sale price
$19.99
Regular price
$0.00
Sold out
Unit price
per
Shipping calculated at checkout.

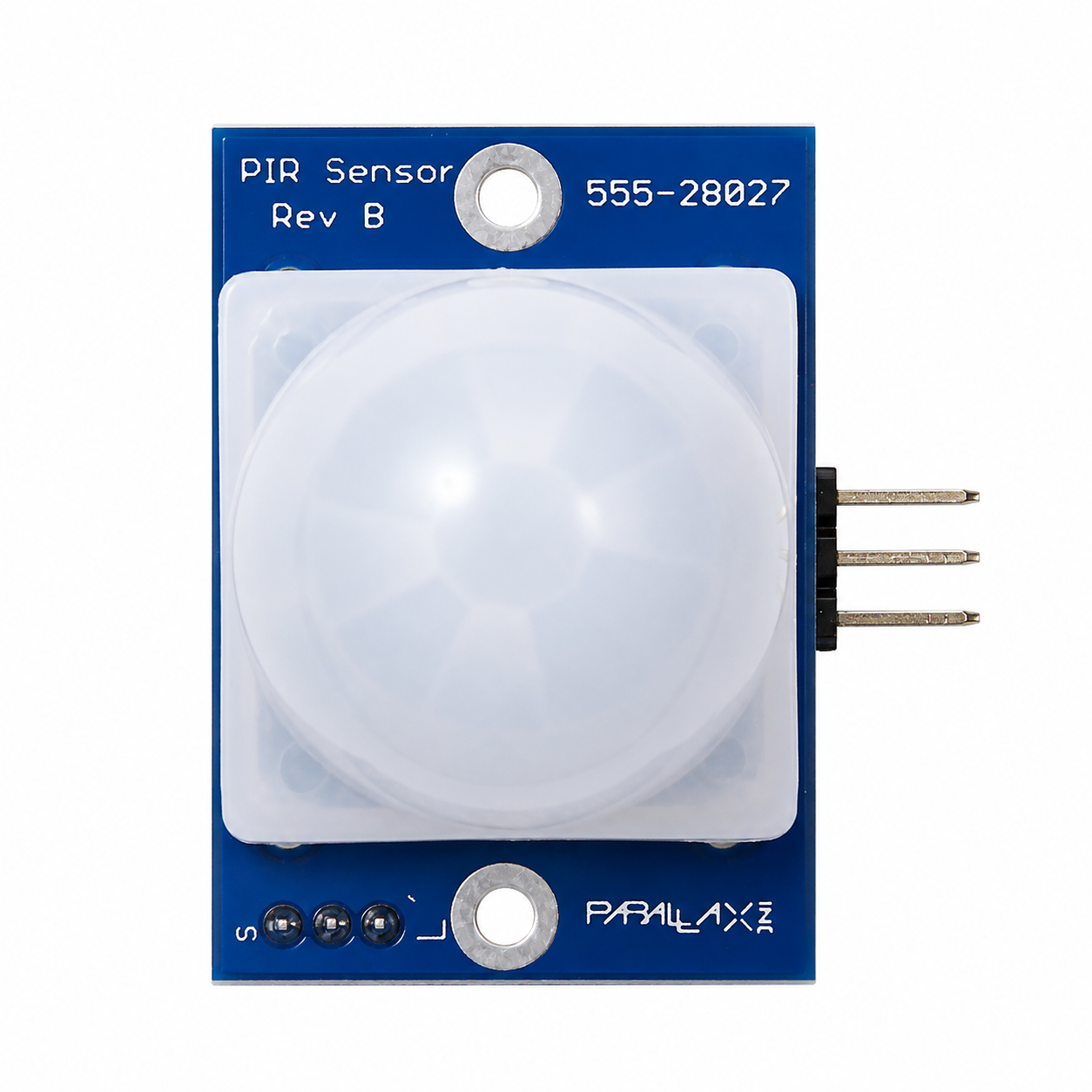

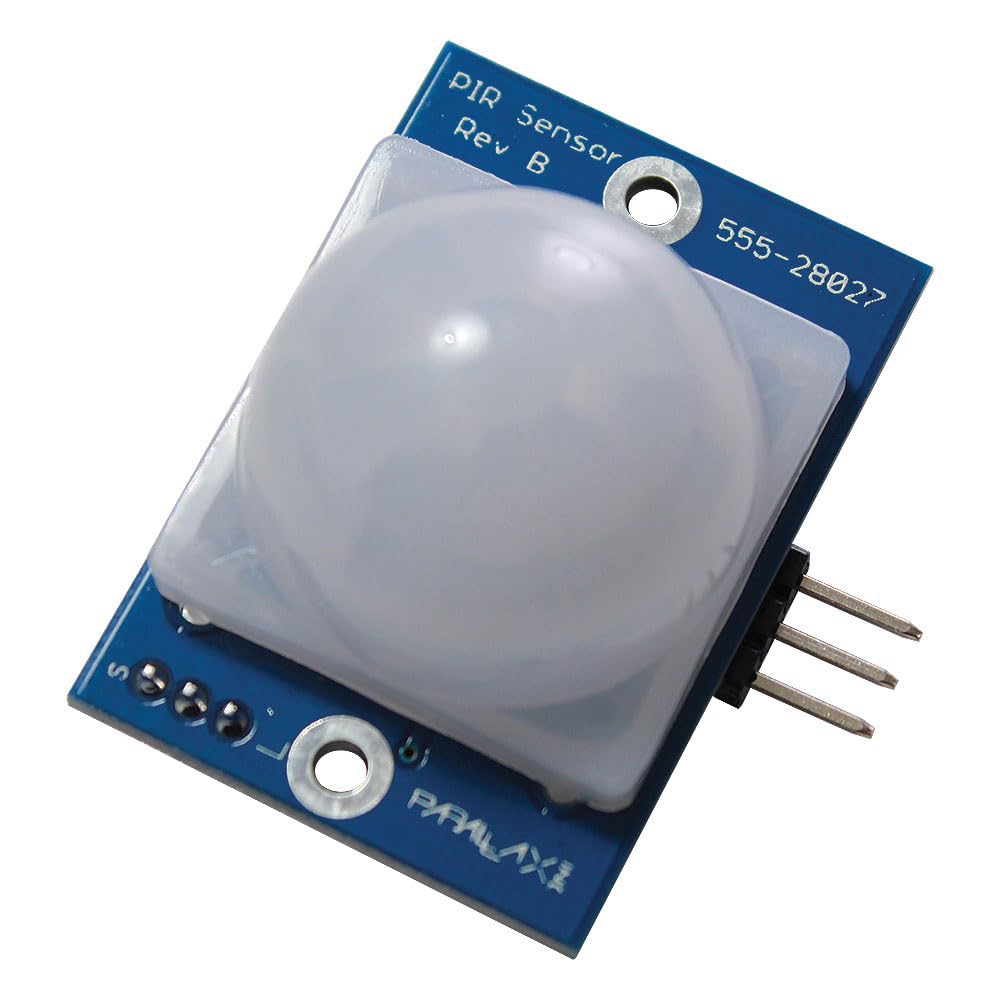

The Parallax PIR Motion Sensor (Rev B) is a passive infrared sensor that detects movement from body heat and sends a digital signal to a microcontroller. It covers about 90° and reaches up to 30 ft, or 15 ft when set to reduced sensitivity with the onboard jumper. An LED inside the translucent dome lights when motion is sensed, and Rev B adds a wider 3–6 VDC supply range and higher output current.

Key Features

  • Range up to 30 ft, or 15 ft in reduced-sensitivity mode (jumper)
  • About 90° field of view
  • LED lights the dome when motion is detected
  • Runs on 3 to 6 VDC
  • Output can drive small loads directly (up to 23 mA at 5 V)

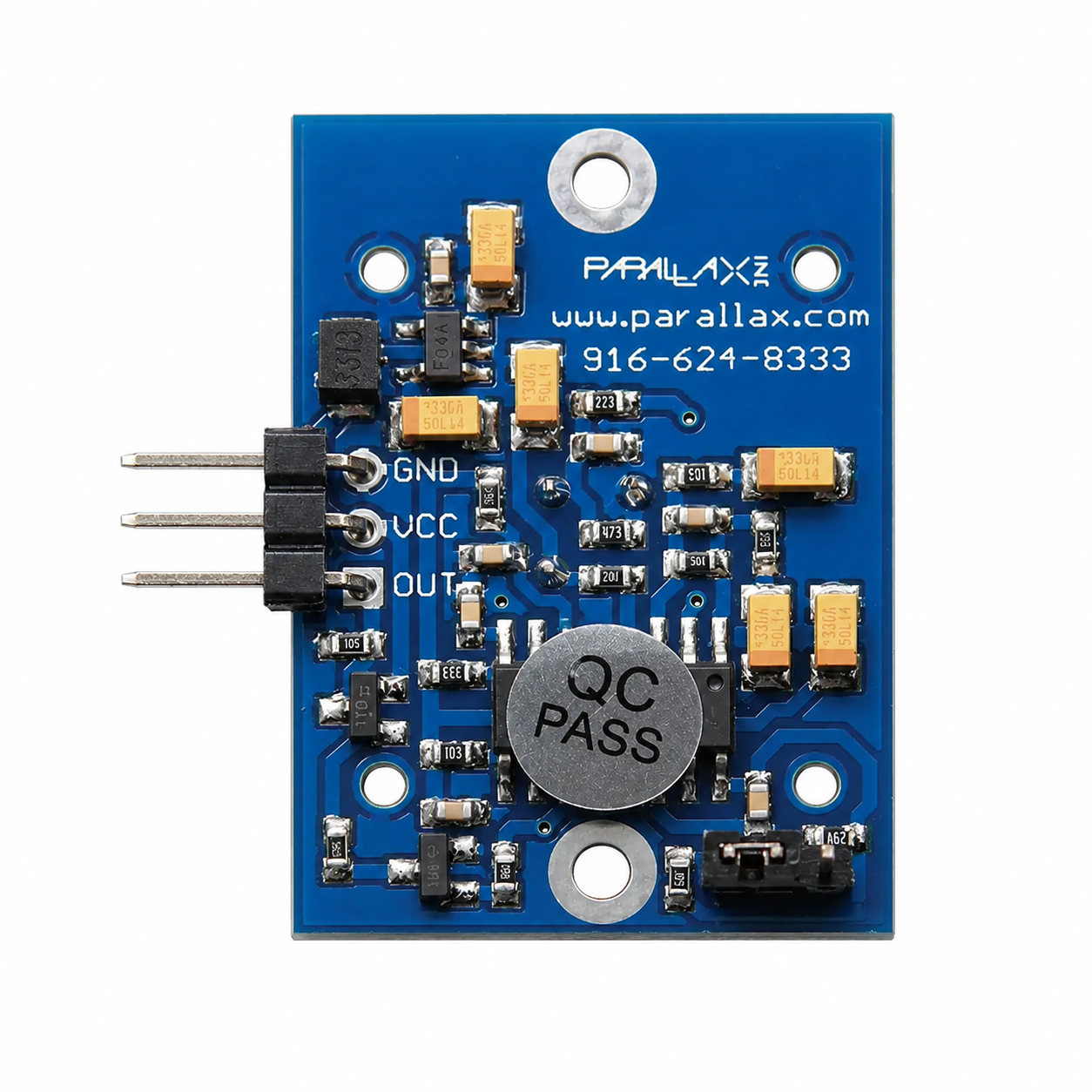

  • 3-pin SIP layout and mounting holes for 2-56 screws
  • Works with Arduino, Raspberry Pi and BASIC Stamp projects

Specifications

Brand / model Parallax PIR Sensor, Rev B (555-28027)
Sensing Passive infrared
Range Up to 30 ft (normal) / 15 ft (reduced)
Field of view Approx. 90°
Supply voltage 3 to 6 VDC
Current draw 130 µA idle / 3 mA active
Output current Up to 12 mA at 3 V / 23 mA at 5 V
Dimensions 1.41 x 1.0 x 0.8 in (3.6 x 2.5 x 2.0 cm)
SKU 32PX555-28027*

What's Included

  • Parallax PIR Motion Sensor (Rev B), 1

Ideal For

Motion-triggered lights, alarms and occupancy projects on Arduino, Raspberry Pi or BASIC Stamp.

Frequently Asked Questions

How does a PIR sensor work?
It watches for changes in infrared (heat) across its field of view, such as a person walking past, and switches its output when it sees one.

Can I shorten the range?
Yes. An onboard jumper switches from normal (up to 30 ft) to reduced sensitivity (up to 15 ft).

Will it work with 3.3 V boards?
Yes, it is rated for 3 to 6 VDC.
