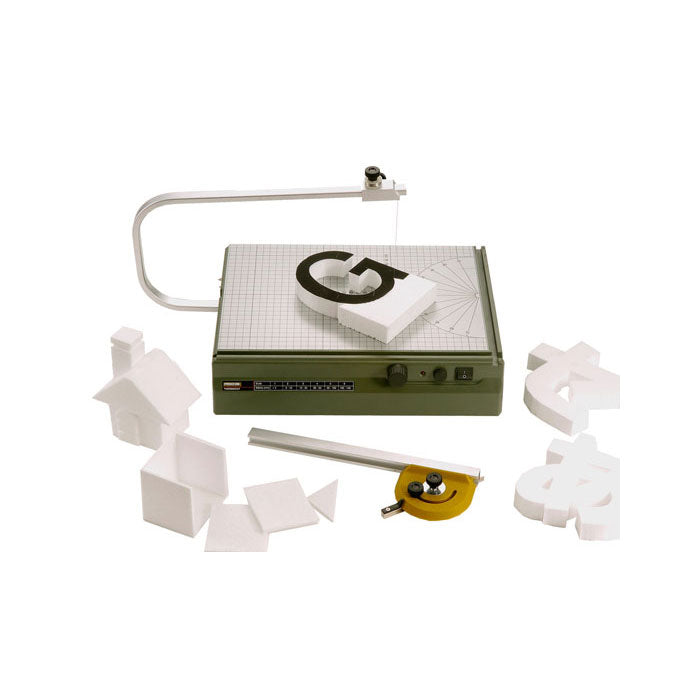

Cuts Styrofoam and thermoplastic materials fast! Ideal for architects, designers, decorators, artists and teachers. For building architectural models, prototypes as well as classic model railroad, plane and boat items.

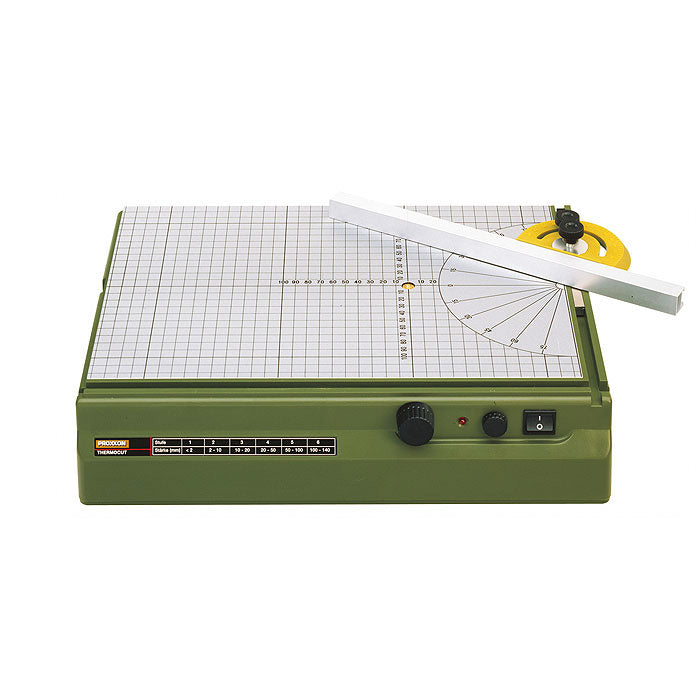

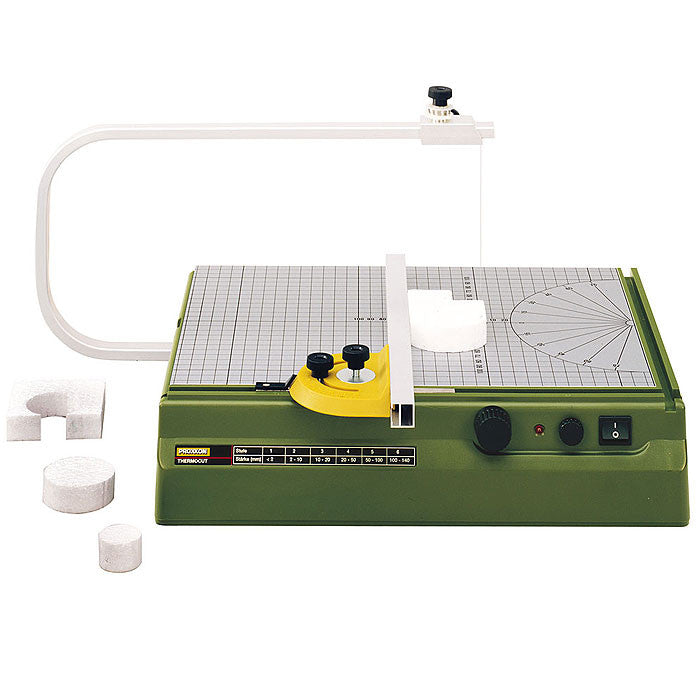

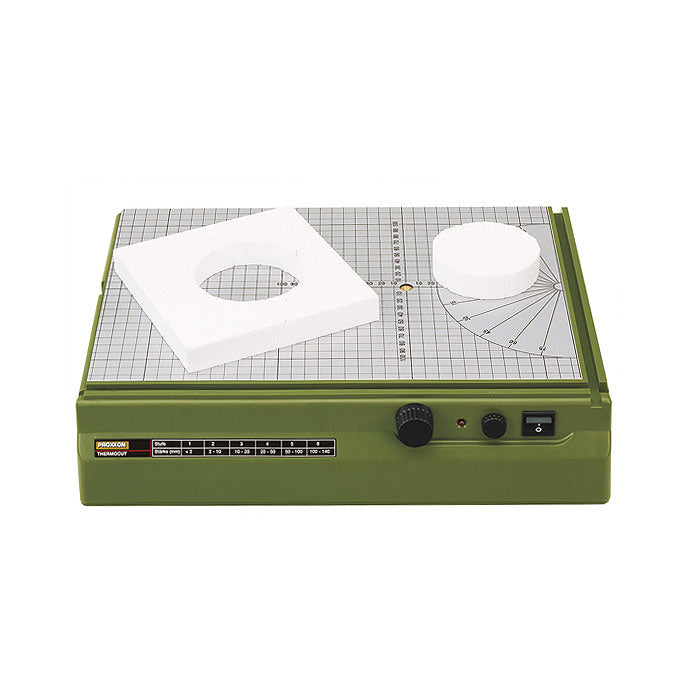

The large table with 15 11/32" x 11" (390 x 280mm) ensures smooth and easy movement of the work piece. The printed grid and protractor assist with division and cutting. The solid aluminum overarm has a 13 3/4" (350mm) throat and offers 5 1/2" (140mm) in height. The holder and wire coil (one spool of wire 98ft., 0.008" diameter is included) may be shifted and adjusted along the overarm to enable miter cutting. An LED indicates operation and thus reminds you not to touch the hot wire to prevent burns (the wire heats to a maximum in less than 1 second).
Note: The correct temperature, being material and thickness dependent, is learned from experience. Profiles are ideally cut at lower temperatures and while applying less cutting force.
Technical data:
- Cutting wire temperature 210 - 390 °F (100 - 200 °C)
- Transformer secondary max. 10V at 1.0A
- Volts 110 - 120V AC, 60 Hz
- Weight 6.6 lb (3kg)
