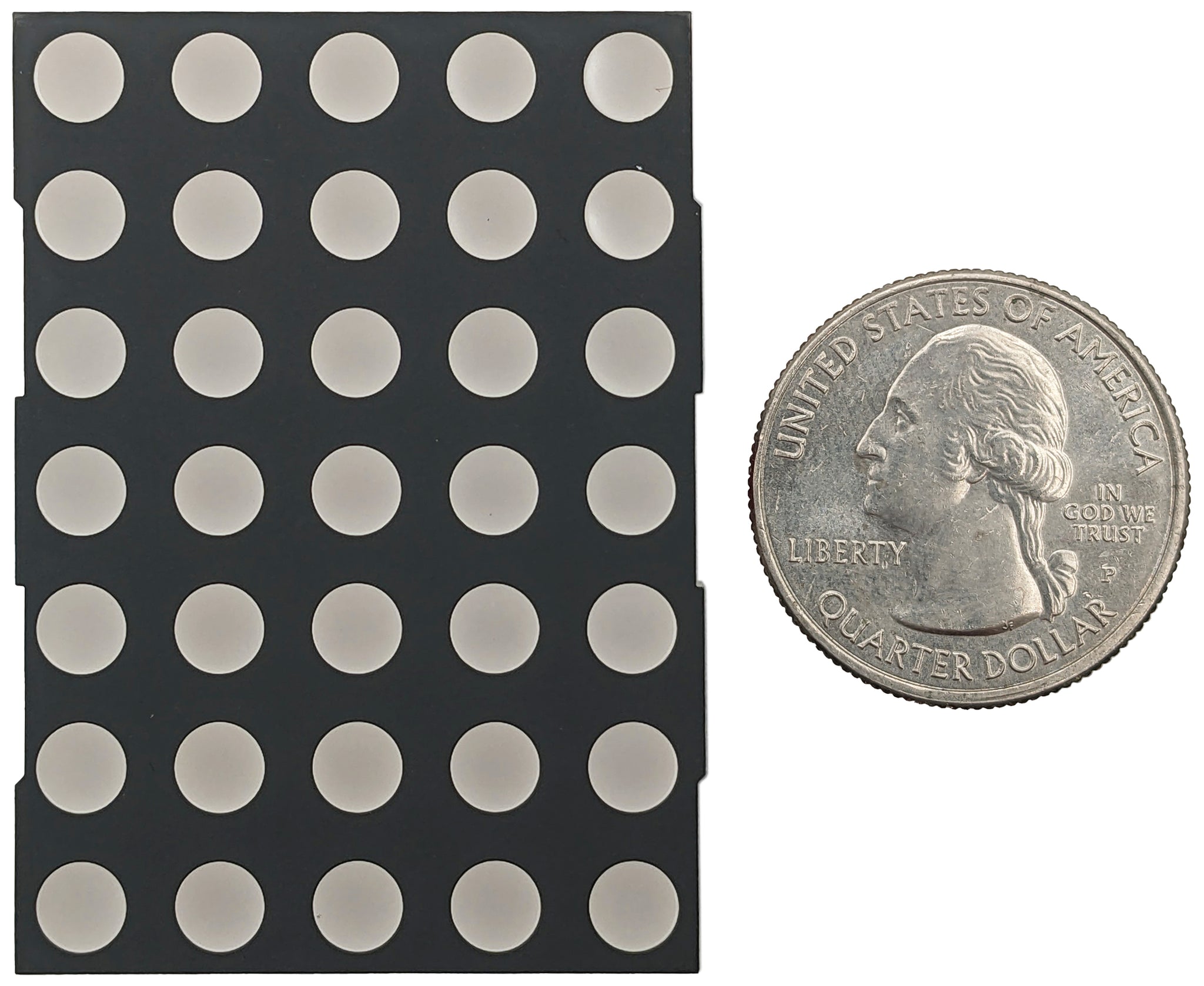

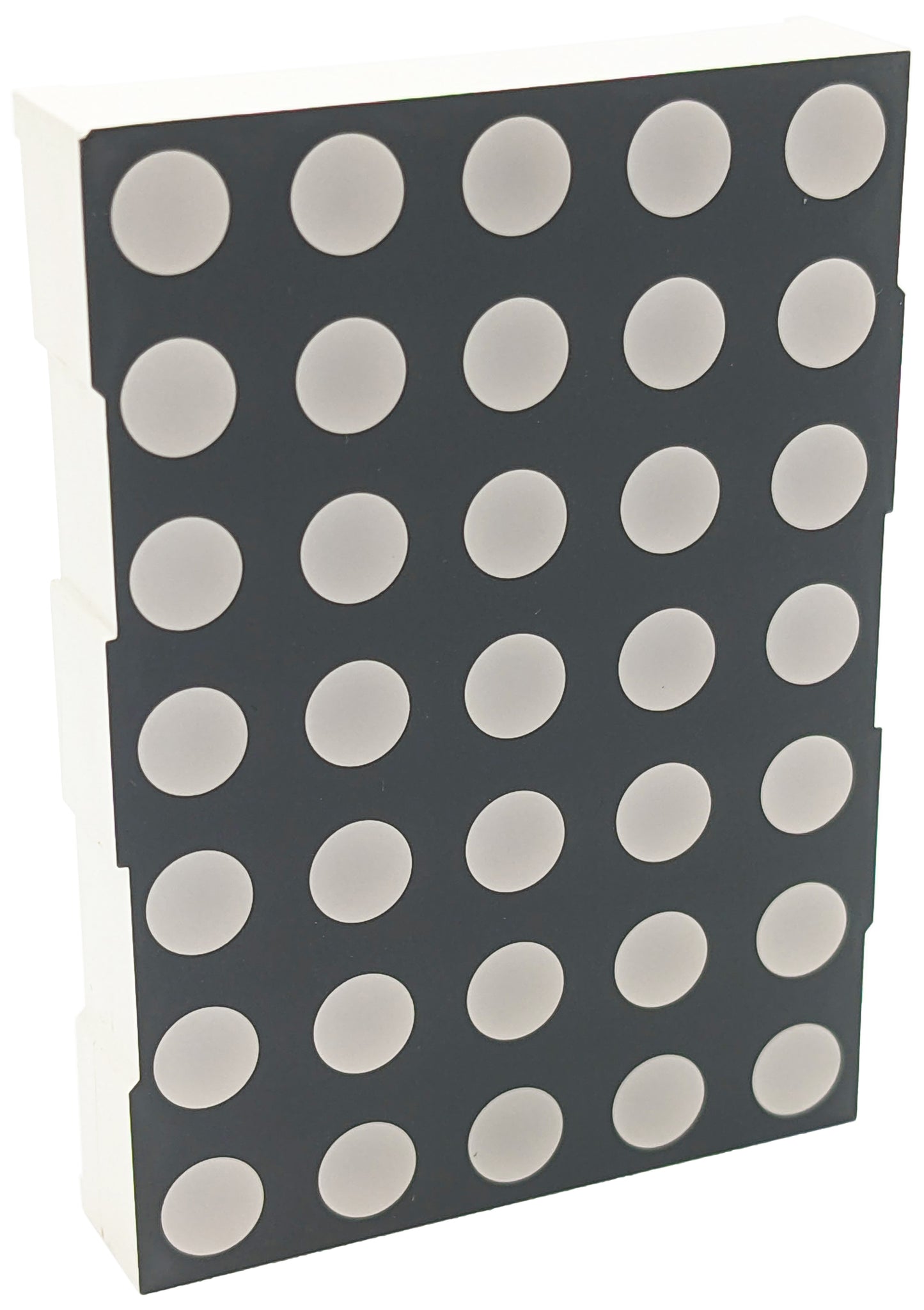

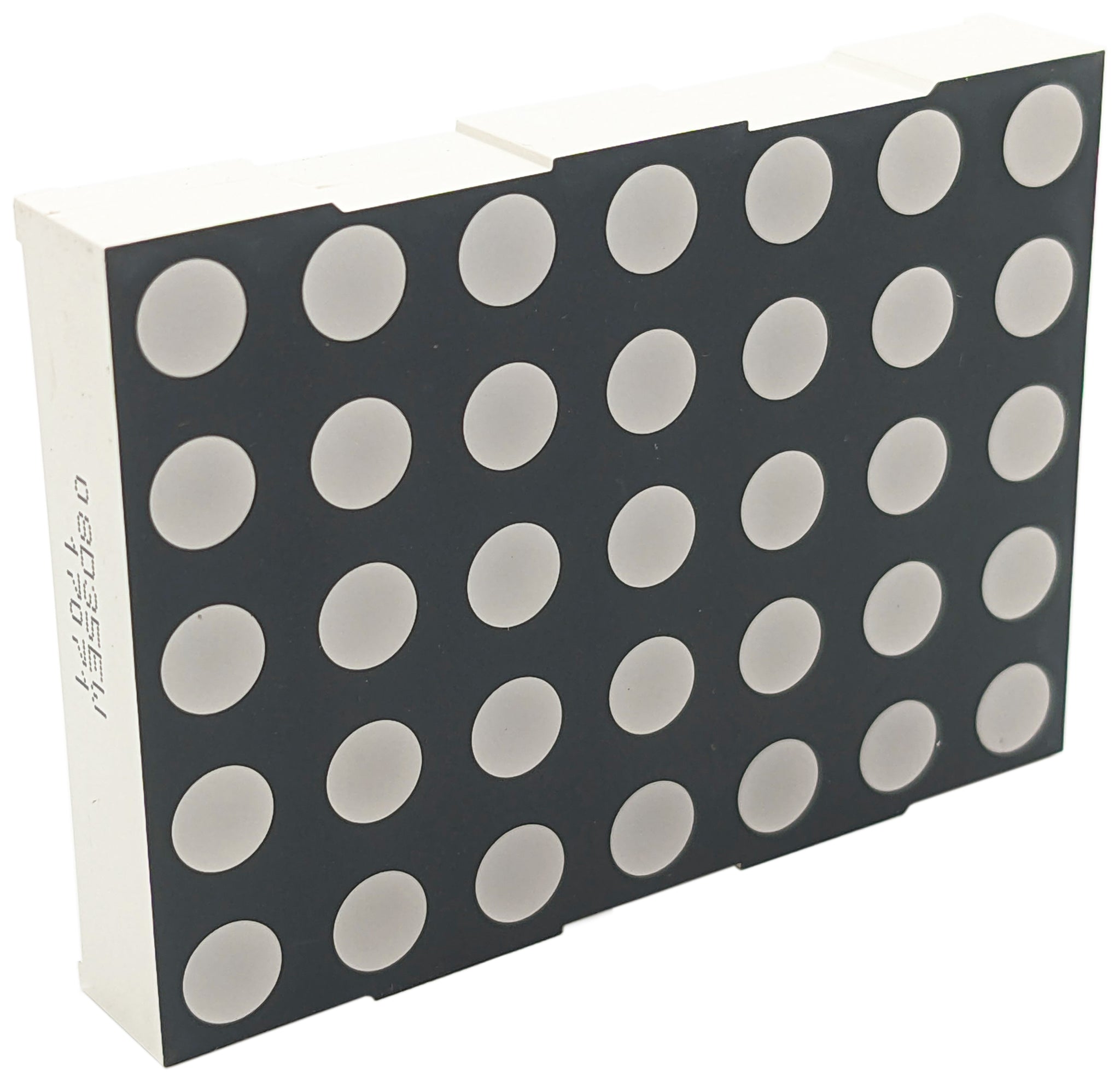

This is a red 5x7 dot matrix LED display with anode columns and cathode rows. It has 14 pins and measures 1.48" x 2.09" x 0.33" (height excludes pins). A 5x7 matrix can show letters, numbers and simple symbols when the rows and columns are scanned.
Key Features
- 5x7 grid of red LEDs
- Anode column, cathode row wiring

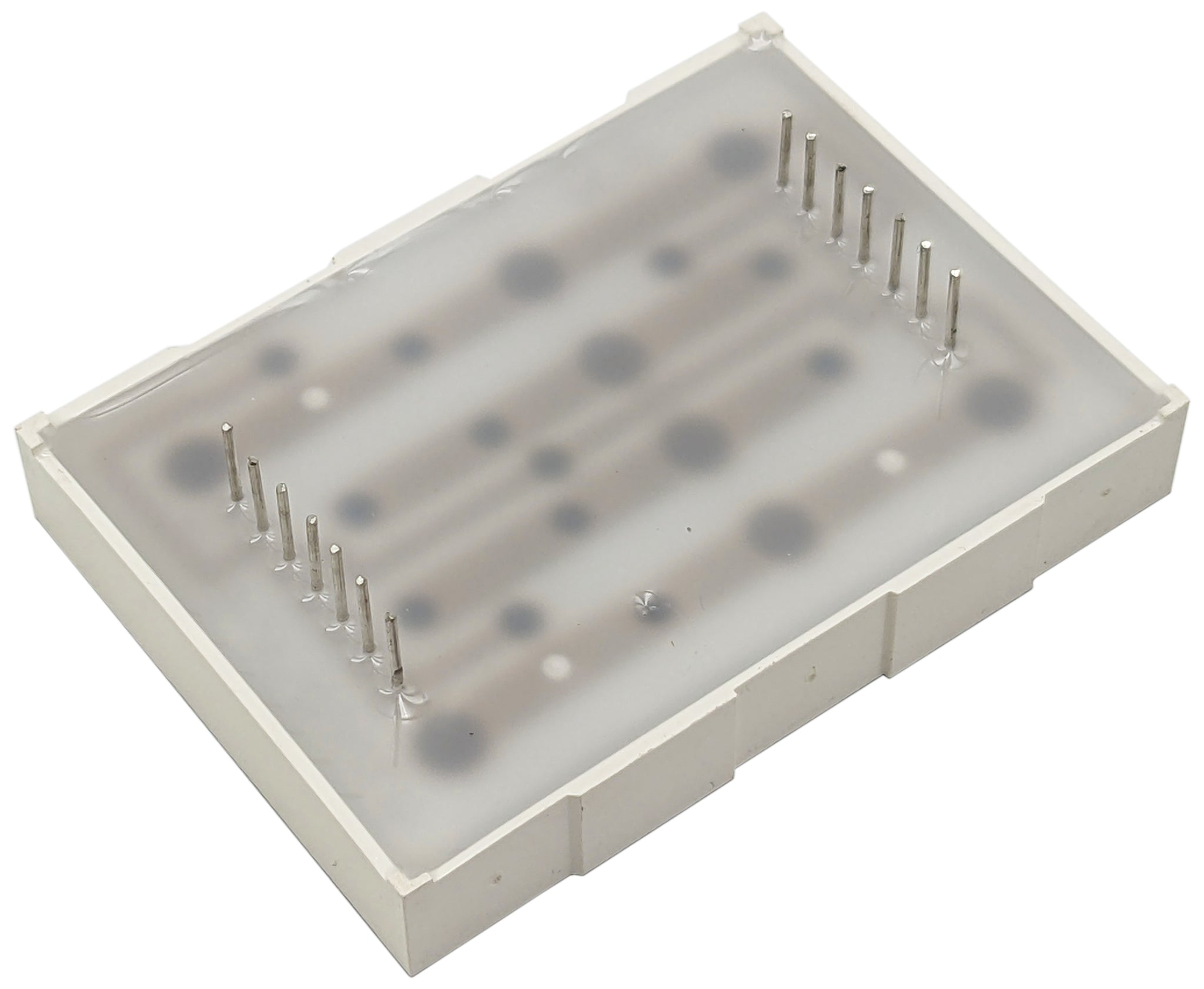

- 14 pins
- 1.48" x 2.09" face
Specifications
| Format | 5x7 dot matrix |
|---|---|
| Color | Red |
| Configuration | Anode column, cathode row |
| Pins | 14 |

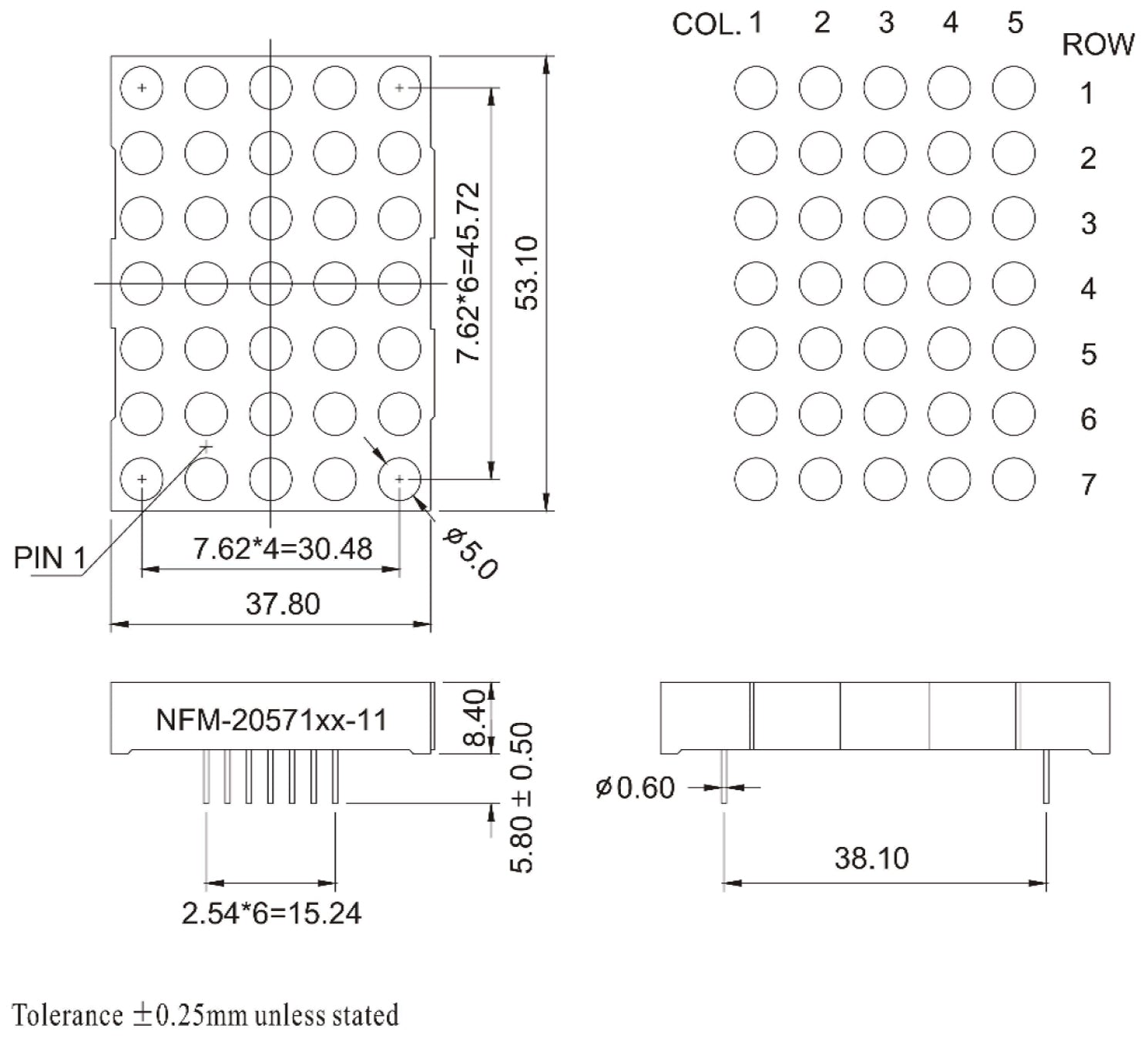

| Dimensions | 1.48" x 2.09" x 0.33" (excluding pins) |
| SKU | 08D35EW |
What's Included
- 1 red 5x7 dot matrix display
Ideal For
Character displays and scrolling-text projects with Arduino or other microcontrollers.
Frequently Asked Questions

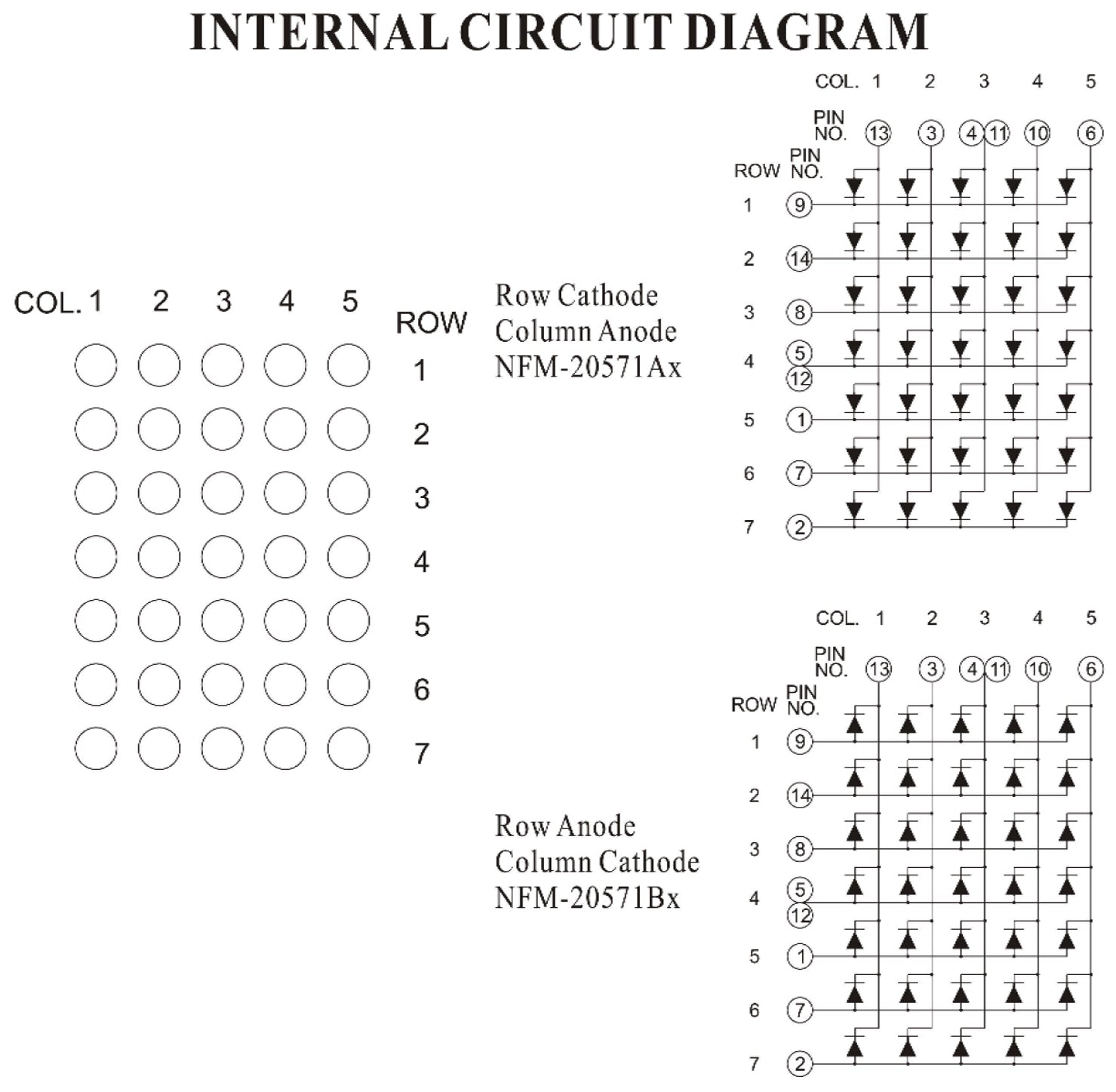

What does anode column, cathode row mean?
Each column connects the LED anodes and each row the cathodes; you light a dot by driving its column high and its row low.
Can it show letters?
Yes, a 5x7 grid is a common size for showing one alphanumeric character.
