Red Stackable 4mm Banana Plug Connector – Nickel-Plated Beryllium Copper, PVC Handle, 30A, Solder Type

*070332270
Regular price
$0.99
Sale price
$0.99
Regular price
$0.90
Sold out
Unit price
per
Shipping calculated at checkout.

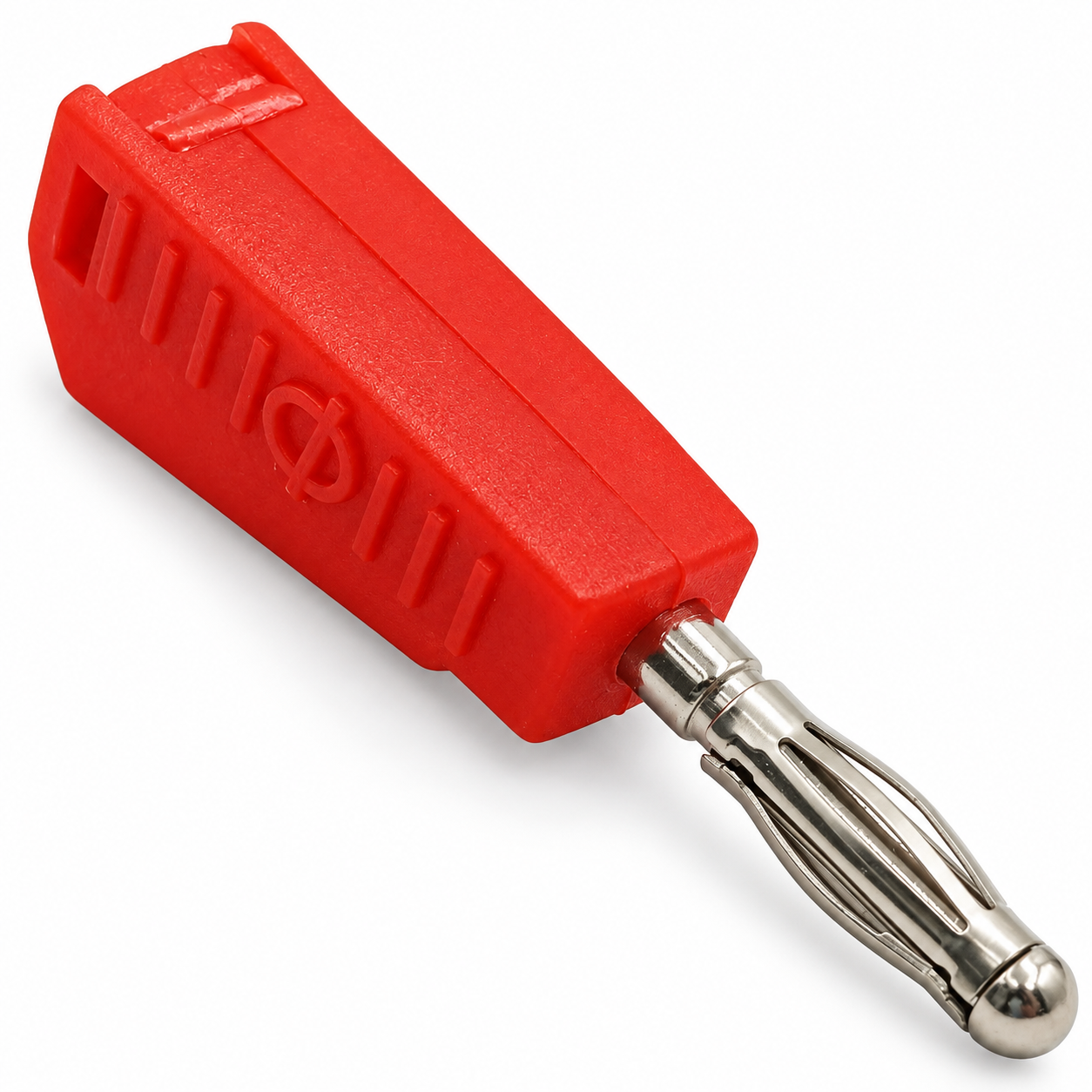

This is a red 4 mm stackable banana plug for building or repairing test leads. The plug contact is nickel-plated, heat-treated beryllium copper with a PVC handle, and the wire attaches by soldering. Its stackable design lets you plug another banana plug into the back of it.

Key Features

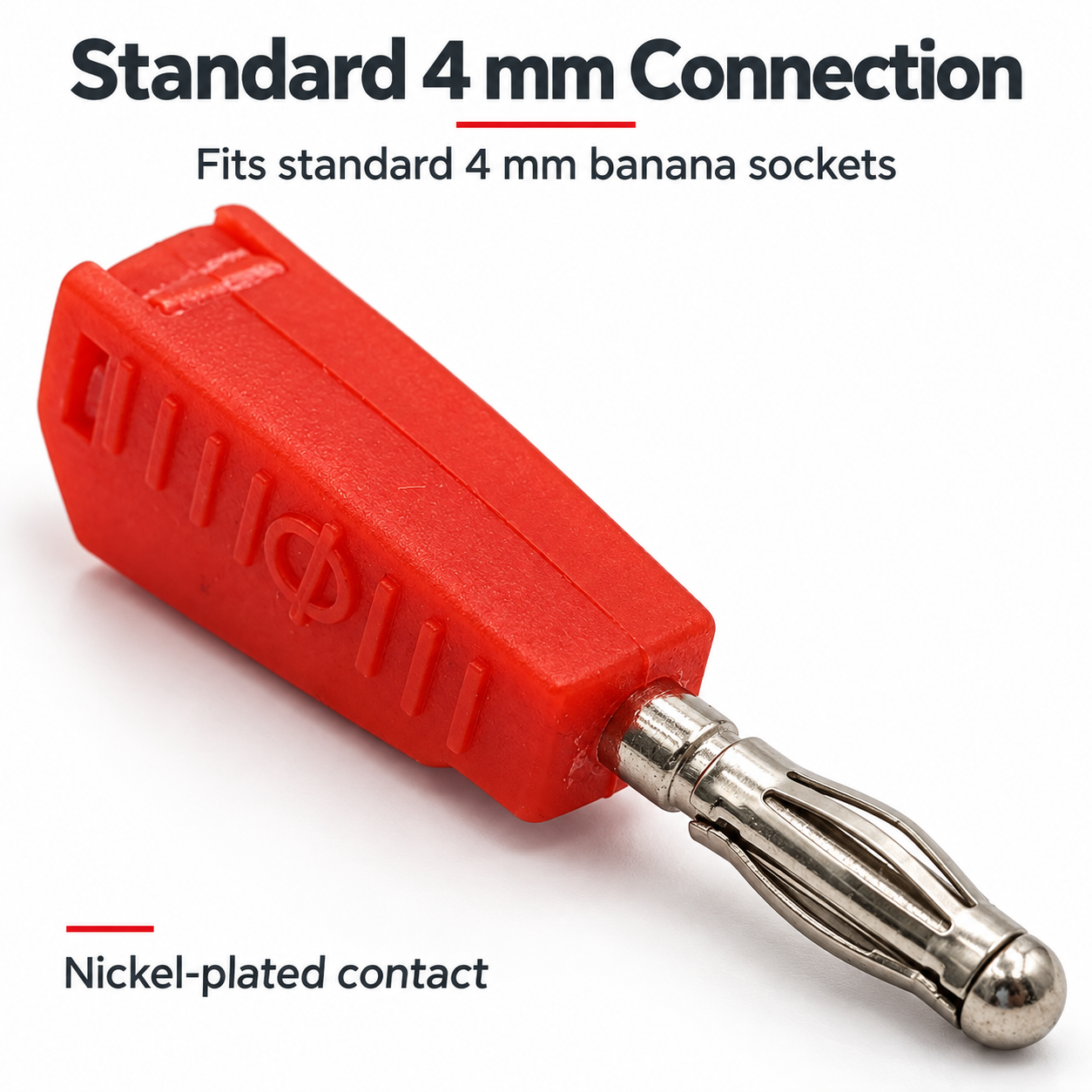

  • Standard 4 mm banana plug, red

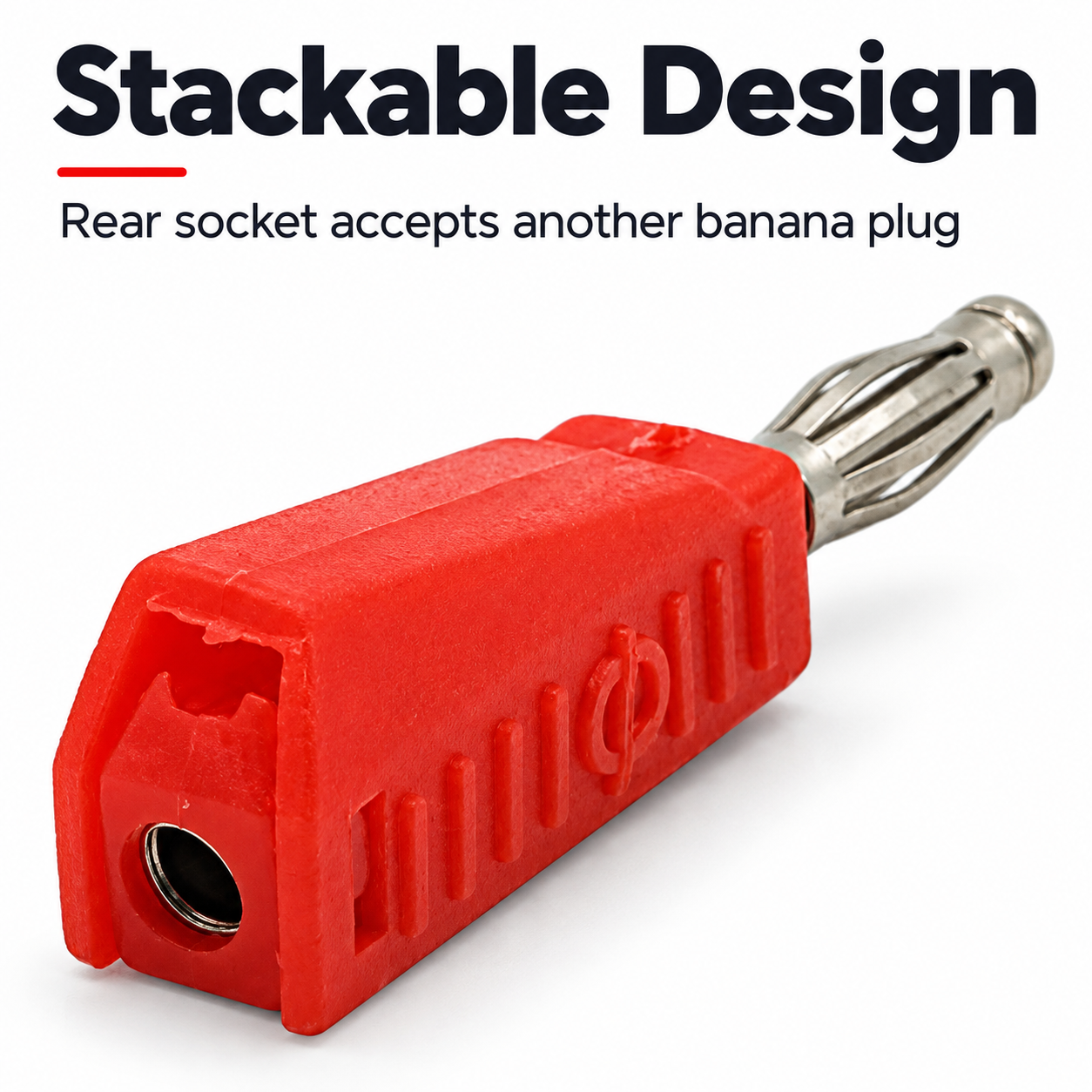

  • Stackable: accepts another plug in the rear
  • Nickel-plated, heat-treated beryllium copper contact
  • PVC insulating handle
  • Solder wire connection
  • Rated 30 A

Specifications

Size 4 mm
Color Red
Contact material Nickel-plated, heat-treated beryllium copper
Handle PVC
Insulation rating DC 500 V, 100 MΩ
Withstand voltage AC 1,500 V (1 minute)
Current rating 30 A
Wire connection Solder
SKU *070332270

What's Included

  • 1 × red stackable 4 mm banana plug

Ideal For

Making custom test leads and patch cords for meters, power supplies and lab equipment.

Frequently Asked Questions

What does 'stackable' mean on a banana plug?
The back of the plug has its own 4 mm socket, so a second banana plug can be inserted into it to connect more than one lead to the same terminal.

How is the wire attached?
The listing describes a soldered wire connection.
