Rigol DG1022Z Function/Arbitrary Waveform Generator – 25 MHz, 2 Channels, 14-Bit, 2 Mpts Arb Memory, 200 MHz Counter

01DG1022Z
Regular price
$379.99
Sale price
$379.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

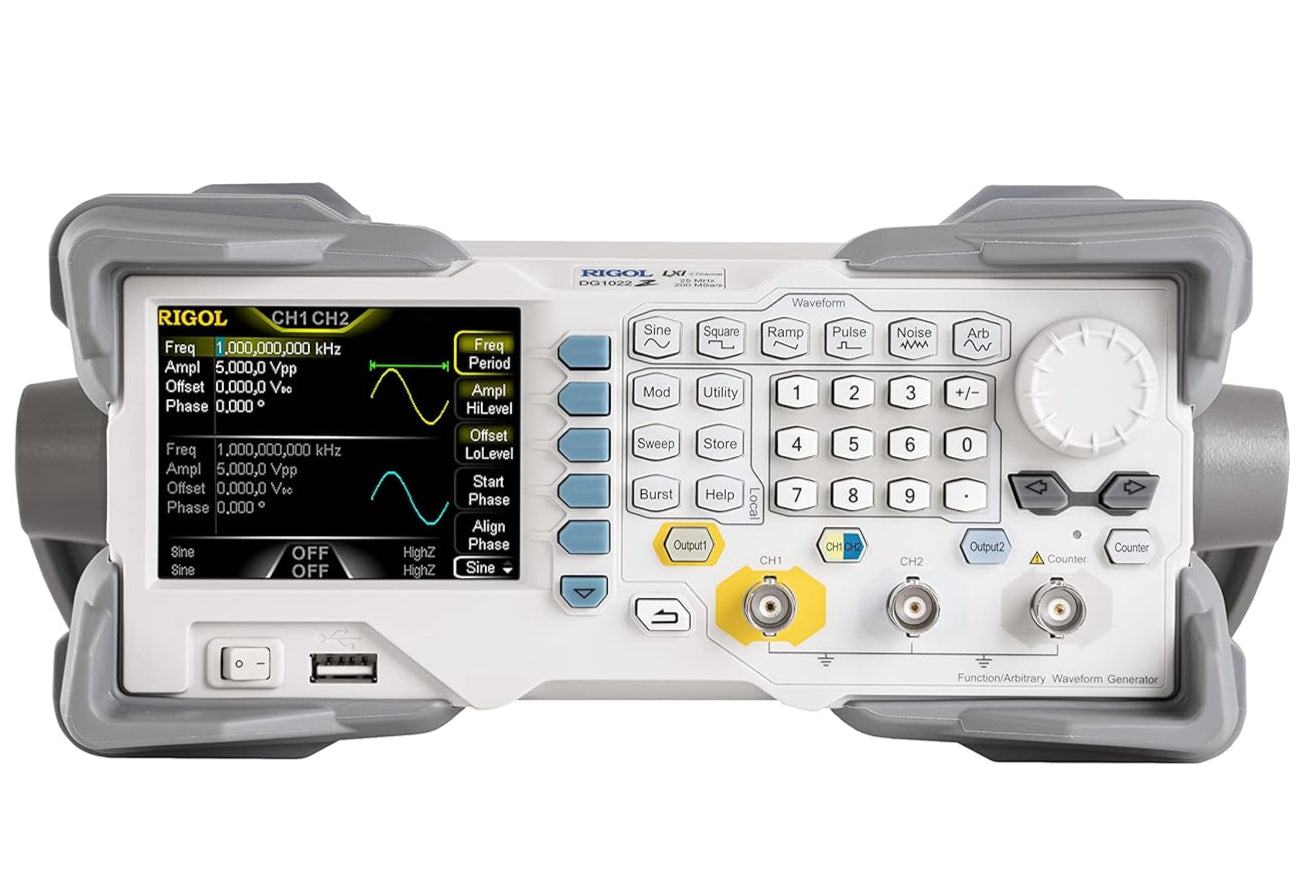

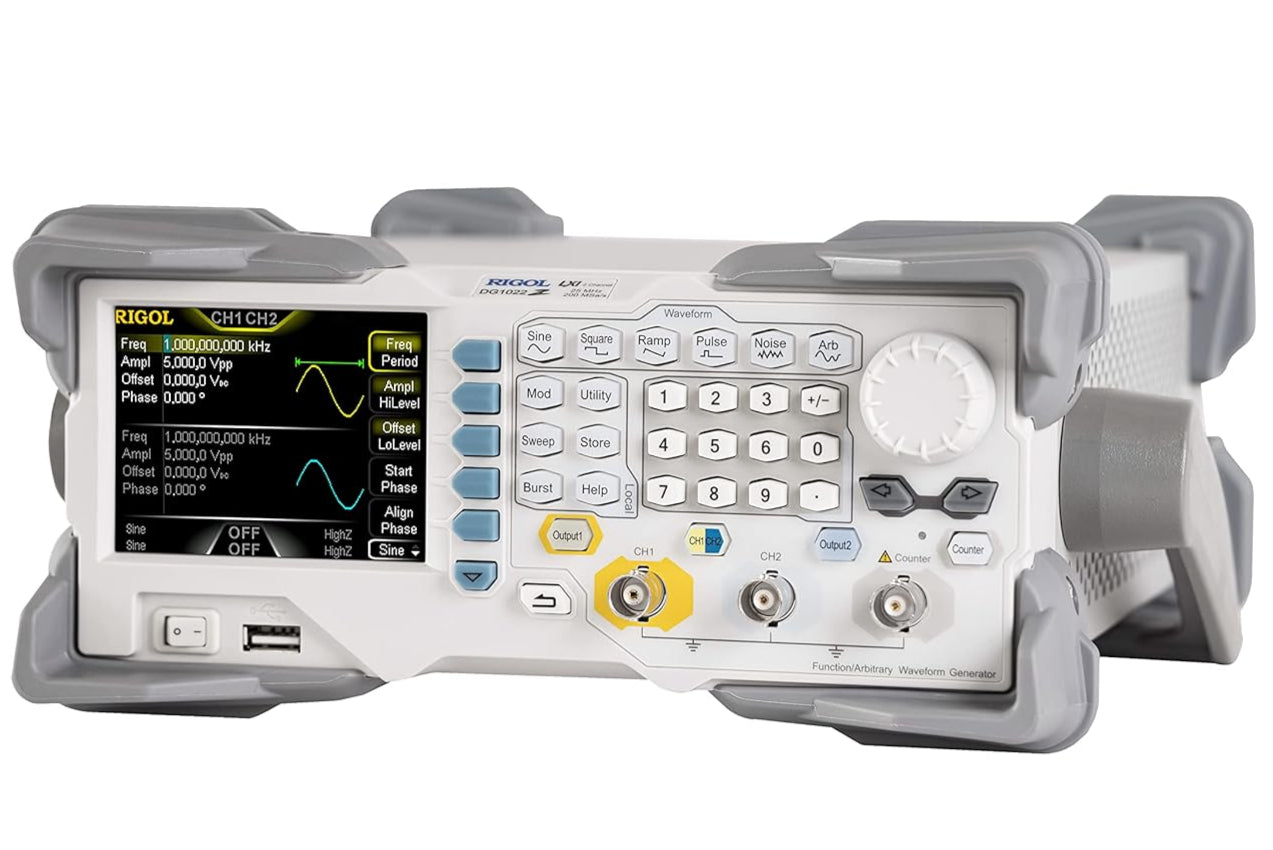

The Rigol DG1022Z is a 25 MHz, 2-channel function/arbitrary waveform generator with 14-bit vertical resolution and 2 Mpts arbitrary waveform length. It combines function, arbitrary, noise, pulse and harmonic generation, modulation and a built-in 7-digit, 200 MHz frequency counter. Rigol's SiFi technology generates waveforms point by point with jitter as low as 200 ps.

Key Features

  • 25 MHz, two fully independent channels, 14-bit resolution
  • 2 Mpts arbitrary waveform length; 160 built-in waveforms
  • SiFi point-by-point generation; 200 ps jitter, -125 dBc/Hz phase noise, ±1 ppm stability
  • AM, FM, PM, ASK, FSK, PSK and PWM, internal or external source
  • Linear, log and step sweeps; N-cycle, infinite and gated burst
  • 8th-order harmonic generator, waveform overlay and channel tracking
  • Built-in 7-digit/s frequency counter up to 200 MHz

Specifications

Brand / model Rigol DG1022Z
Type Function / arbitrary waveform generator
Max frequency 25 MHz
Channels 2
Vertical resolution 14 bit
Arbitrary length 2 Mpts
Built-in waveforms 160
Frequency stability ±1 ppm
Phase noise -125 dBc/Hz
Jitter 200 ps
Modulation AM, FM, PM, ASK, FSK, PSK, PWM
Harmonics Up to 8th order
Counter 7 digits/s, up to 200 MHz
SKU 01DG1022Z

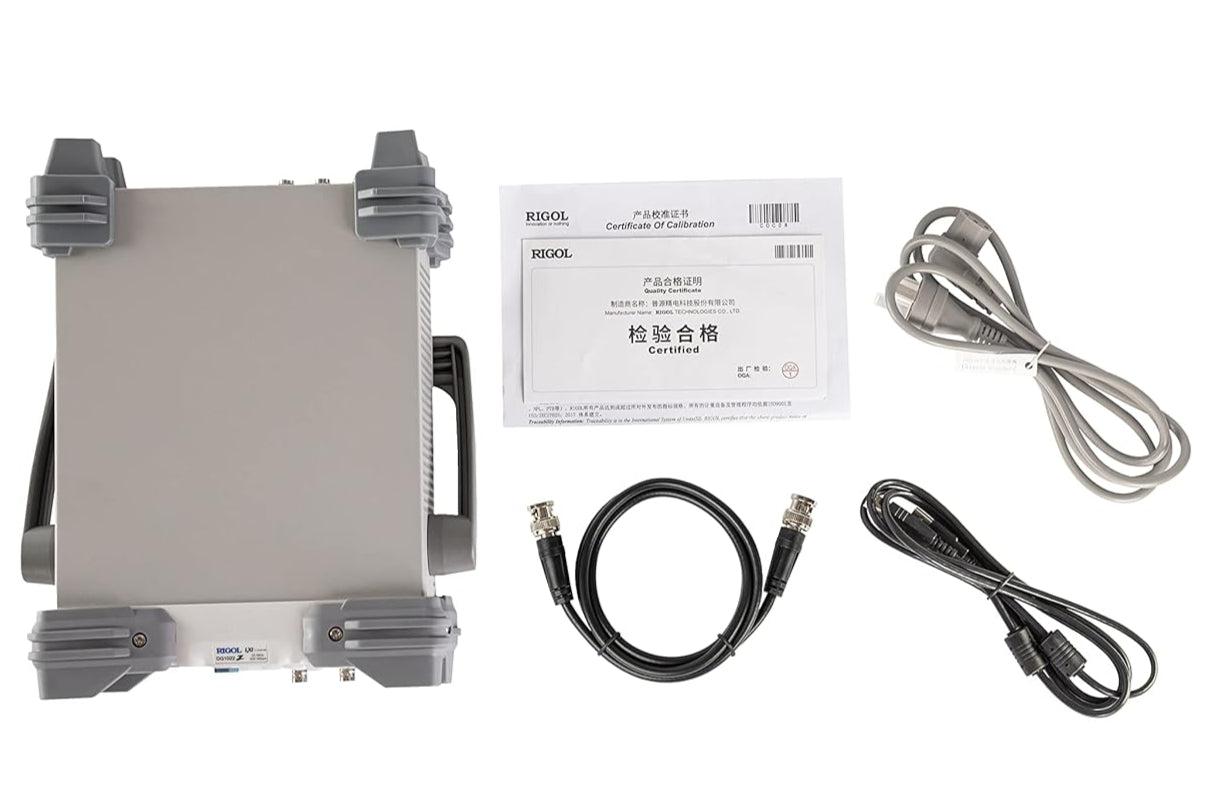

What's Included

  • 1 x Rigol DG1022Z waveform generator

Ideal For

Teaching labs, hobbyists and engineers who need two independent channels for circuit and communications testing.

Frequently Asked Questions

What is SiFi?
Rigol's Signal Fidelity technology builds the output point by point, reducing the jitter of traditional DDS generators to as low as 200 ps.

Can it measure frequency too?
Yes. A built-in 7-digit counter measures frequency, period, duty cycle and pulse width up to 200 MHz, while both outputs keep running.

Are the two channels independent?
Yes, the listing describes two fully functional independent channels, with optional channel tracking.
