- Contact form: SPST ON-OFF
- Contact rating: 15A @ 125VAC / 8A @ 250VAC

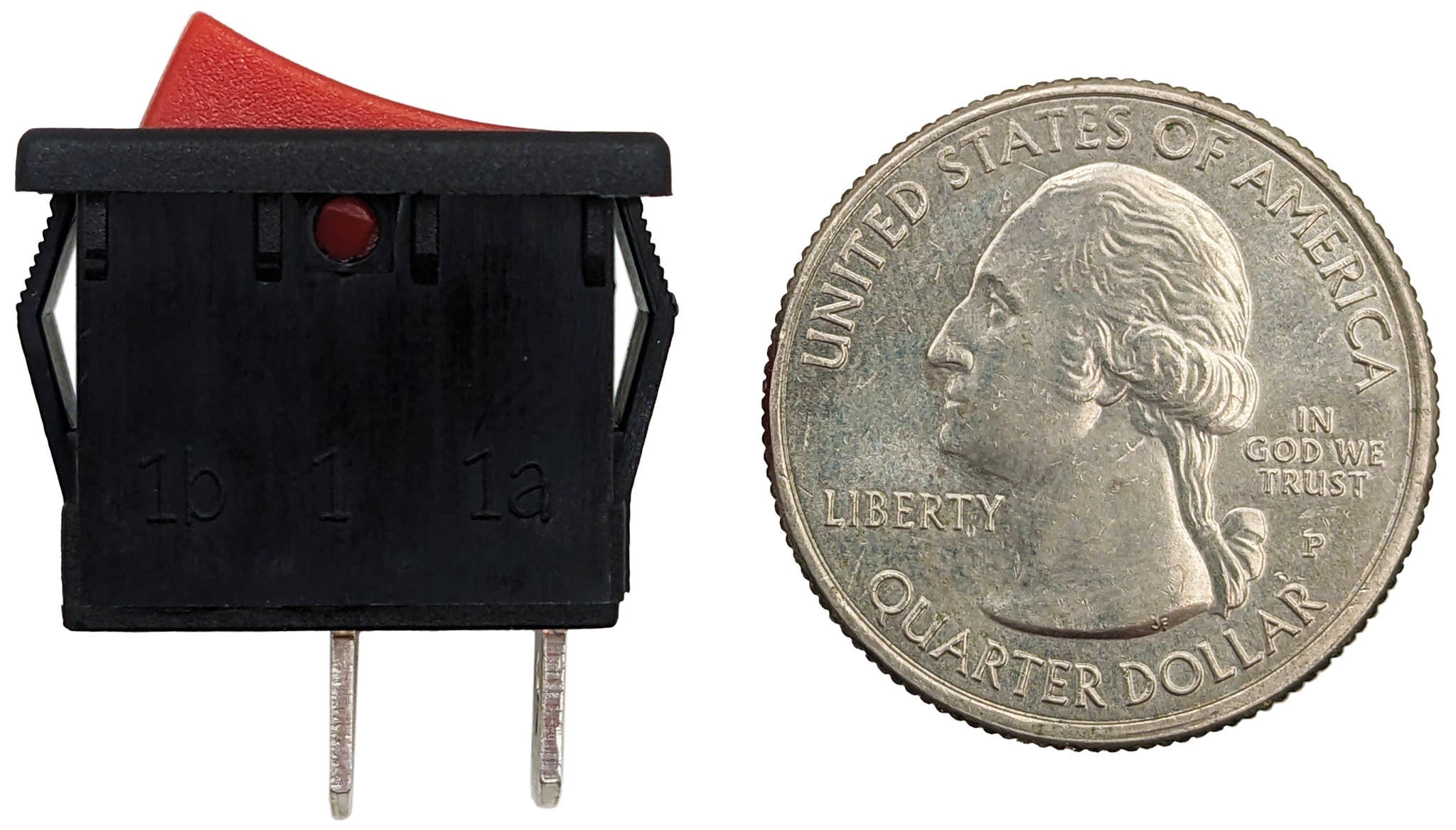

- Dimensions: 0.83"L x 0.59"W x 0.63"D
- Number of pins: 2

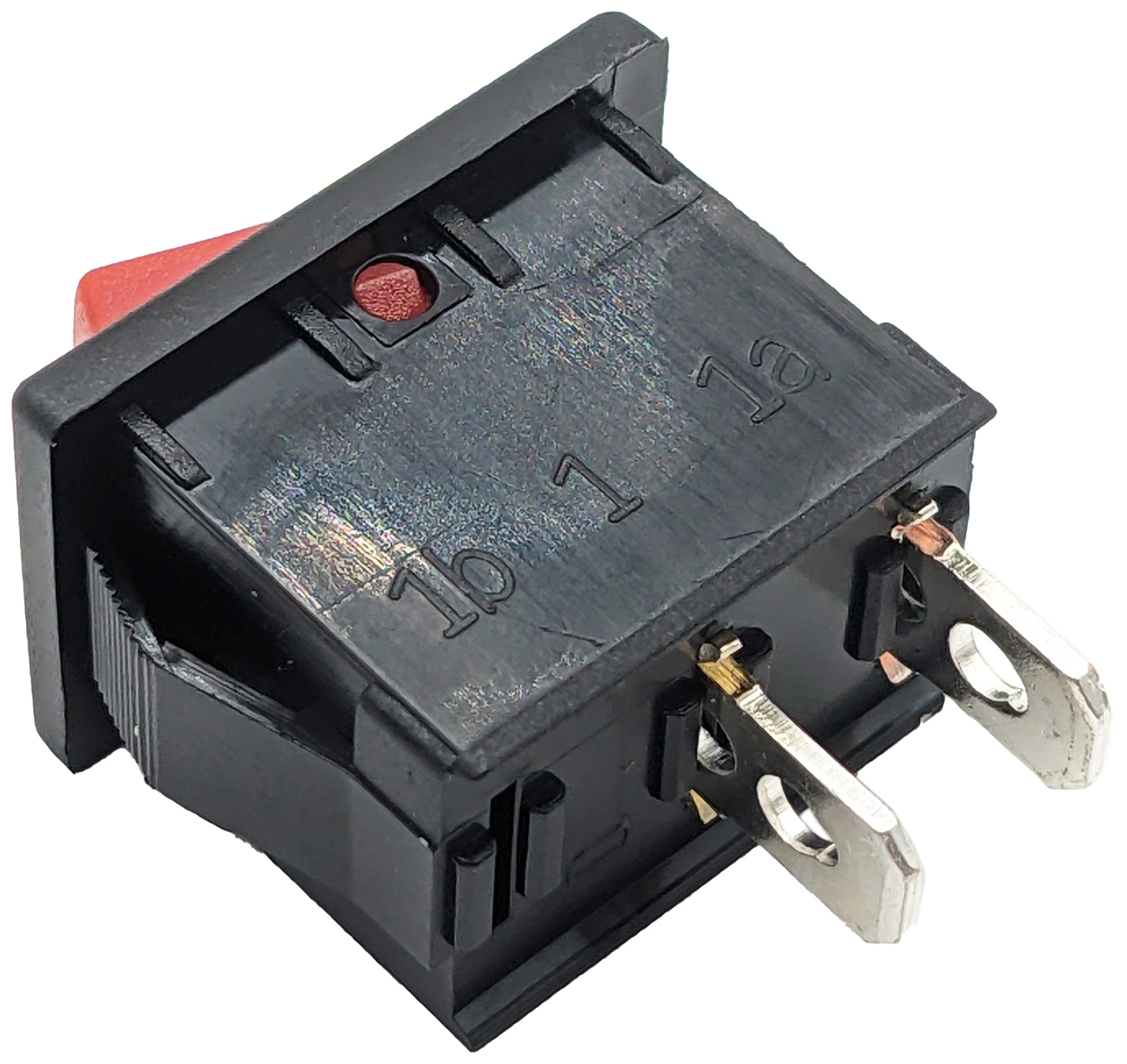

- 0.187" quick connect terminals
- Rocker color: Red

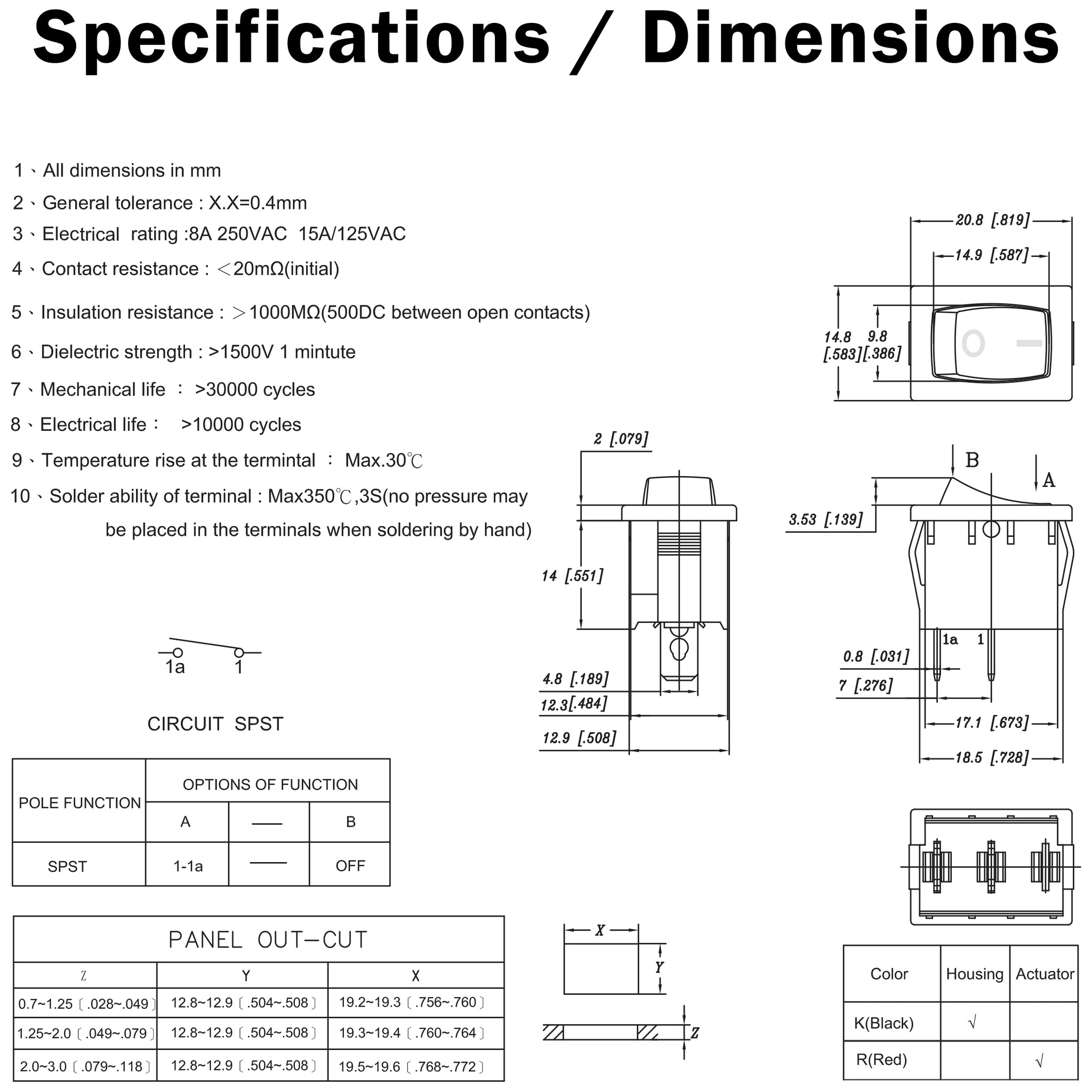

Specifications:
Pins: 2
Contact Form: SPST
Switch Function: ON-OFF
Current Rating: 15A @ 125VAC, 8A @ 250VAC
Actuator Type: Rocker
Color: Black housing, Red actuator
Termination Style: 0.187" Quick Connect
Depth: 0.54 in.
Illumination Type: None
Mounting Style: Panel Mount
IP Rating: none
UL Flammability Code: 94V-2
Actuator Length: 0.141 in.
Lead Spacing A (inch): 0.278
Length: 0.826 in.
Width: 0.59 in.
Height: 0.964 in.
