This is a +5V-powered multichannel RS-232 driver/receiver IC in a 20-pin DIP. It belongs to the MAX220–MAX249 family, which uses integrated charge-pump circuitry to produce RS-232 levels from a single +5V supply, so no separate ±12V supply is needed. The family is intended for EIA/TIA-232E and V.28/V.24 interfaces.
Key Features
- Single +5V supply operation
- Integrated charge pump removes the need for a ±12V supply
- For EIA/TIA-232E and V.28/V.24 interfaces
- 5 µW shutdown mode (family feature)

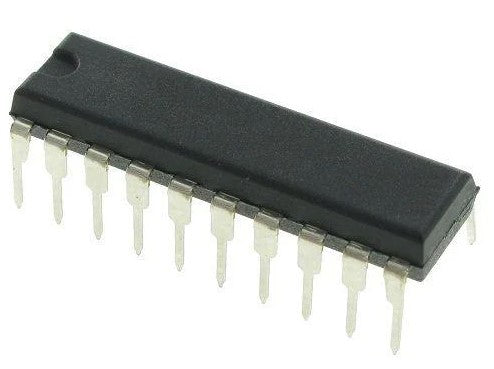

- 20-pin DIP
Specifications
| Family | MAX220–MAX249 |
|---|---|
| Function | Multichannel RS-232 drivers/receivers |
| Supply | +5V |
| Standards | EIA/TIA-232E, V.28/V.24 |
| Package | 20-pin DIP |
| SKU | 10233 |
What's Included
- 1 x RS-232 driver/receiver IC
Ideal For
Interface translation, multidrop RS-232 networks and portable diagnostic equipment.
Frequently Asked Questions
Which exact part number is this?
The listing gives only the family (MAX220–MAX249). Confirm the exact part with the store before designing in.
Why no ±12V supply?
A charge pump inside the chip generates the higher RS-232 voltages from the +5V supply.
