General Information
Item Name: Field Service Kit
Brand: SCS
General Features
Standards: ANSI/ESD S4.1, S20.20-2007
Design & Construction
Color: Red
Material: Vinyl
Electrical Properties
Resistivity1 x 10^4 - < 1 x 10^9 ohm (Resistance to Ground Point), 1 x 10^4 - < 1 x 10^9 ohm (Resistance Top to Top)
Physical Properties
Length: 24 Inch
Thickness: 0.016 Inch
Width: 24 Inch
Kit Includes:
1 - 24" x 24" Dissipative Mat with two pockets
1 - ECWS61M-1 Adjustable Fabric Wristband
1 - Coil Cord, 6 ft
1 - CGC151M Common Ground Cord, 15 ft with clip instructions
1 - ECWS61M-1 Adjustable Fabric Wristband
1 - Coil Cord, 6 ft
1 - CGC151M Common Ground Cord, 15 ft with clip instructions

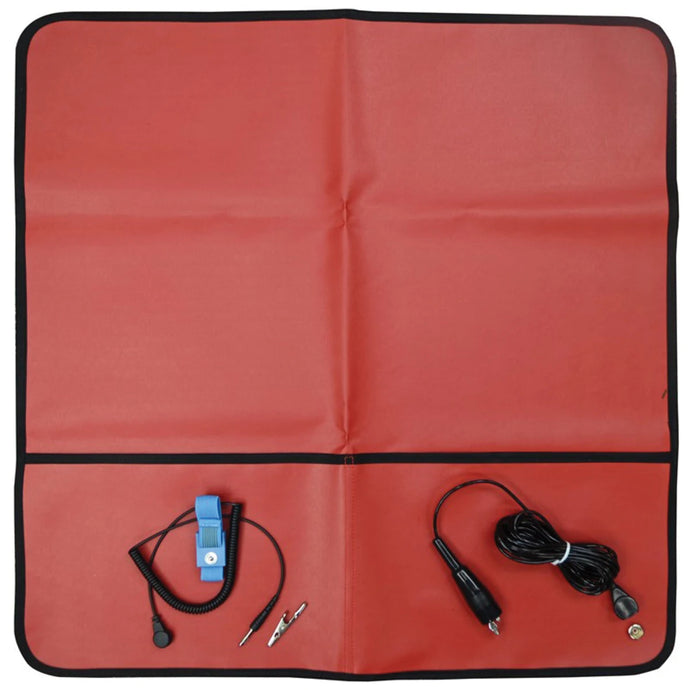

SCS field service kit FSKL3RD provides a complete, portable, static safe workstation for personnel working with electronics in the field. To stop static electricity from damaging electronic cards, a static safe work area is essential for field service technicians performing in-field repair or installation of cards. - The field service kit is used by technicians in telecommunications, computer, industrial controls and business equipment service applications. The entire kit folds to fit into most tool cases.
