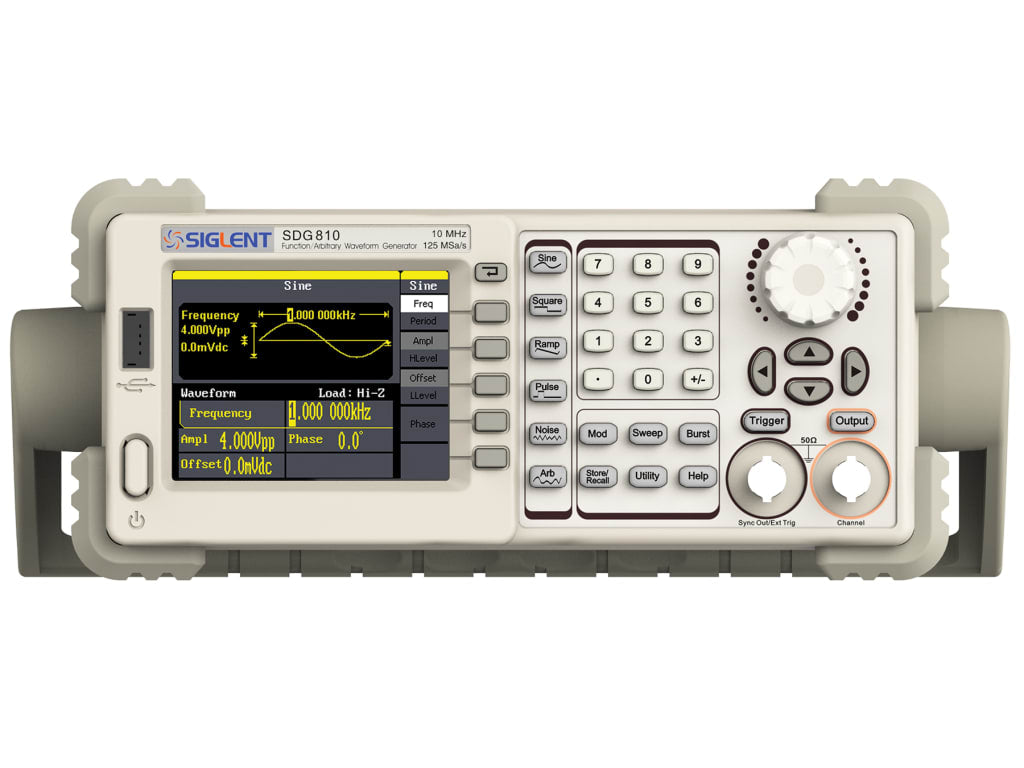

The Siglent SDG800 function/arbitrary waveform generator has a sample rate of 125 MSa/s and is available in a 10MHz or 30MHz bandwidth. The SDG800 is powered with SIGLENT’s EasyPulse technology which produces low jitter and fast rising/falling edges. It does this without being affected by frequency, even at low duty cycle settings, providing the user with a wide range of pulse widths and transition times. This results in a much more versatile generator than other similar DDS designs.
- 1 channel / 30 MHz bandwidth
- 125 MSa/s sampling rate
- 14-bit vertical resolution
- 5 standard waveforms and 46 built-in arbitrary waveforms (including DC)
- Complete modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, linear logarithmic sweep, and burst
- Innovative EasyPulse technology can output pulses with low jitter and quick rising/falling edges
- Standard interfaces: USB Device, USB Host, supports U-Disk storage10 non volatile storage spaces for arbitrary waveforms
- Includes EasyWave, the powerful arbitrary waveform editing software
- Advanced DDS technology,125MSa/s sampling rate, 14 bit vertical resolution
- Single channel output, 5 kinds of standard waveforms, built-in 46 kinds of arbitrary waveforms (including DC)
- Complete modulation functions: AM, DSB-AM,FM, PM, FSK, ASK, PWM, linear/logarithmic sweep and burst
- Innovative EasyPulse technology, can output pulse of low jitter, quick rising/falling edge
- Standard interfaces: USB Device, USB Host, support U-Disk storage and software update
- Provide 10 nonvolatile storage spaces for user's arbitrary waveforms
- Be capable of seamlessly connected to SIGLENT Digital Storage Oscilloscope Configurable with powerful arbitrary waveform editing software EasyWave
