Siglent SPD3303X-E Triple Output Power Supply, 10 mV, 10 mA Resolution
Siglent SPD3303X-E Triple Output Power Supply, 10 mV, 10 mA Resolution
Siglent SPD3303X-E Triple Output Power Supply, 10 mV, 10 mA Resolution
Siglent SPD3303X-E Triple Output Power Supply, 10 mV, 10 mA Resolution
Through front panel operation, five groups of timing settings and output control can be displayed, which provides users with simple power programming functionality. Also, by connection to Siglent’s EasyPower PC software, a full range of communication and control features can be used.
  • Load image into Gallery viewer, Siglent SPD3303X-E Triple Output Power Supply, 10 mV, 10 mA Resolution
  • Load image into Gallery viewer, Siglent SPD3303X-E Triple Output Power Supply, 10 mV, 10 mA Resolution
  • Load image into Gallery viewer, Siglent SPD3303X-E Triple Output Power Supply, 10 mV, 10 mA Resolution
  • Load image into Gallery viewer, Siglent SPD3303X-E Triple Output Power Supply, 10 mV, 10 mA Resolution
  • Load image into Gallery viewer, Through front panel operation, five groups of timing settings and output control can be displayed, which provides users with simple power programming functionality. Also, by connection to Siglent’s EasyPower PC software, a full range of communication and control features can be used.

Siglent SPD3303X-E Triple Output Power Supply, 10 mV, 10 mA Resolution

01SPD3303X-E
$439.00
$439.00
Sold out
Shipping calculated at checkout.
  • 3 independently controlled and isolated outputs:
    • CH1:
      • Voltage 0 to 32 V
      • Current 0 to 3.2 A
    • CH2:
      • Voltage 0 to 32 V
      • Current 0 to 3.2 A
    • CH3:
      • Voltage 2.5/3.3/5.0 V
      • Current 3.2 A
  • 4-digit Voltage / 3-digit Current Display, Resolution: 10 mV, 10 mA
  • Accuracy:
    • Voltage: ± (0.5% of reading + 2 digits)
    • Current: ± (0.5% of reading + 2 digits)

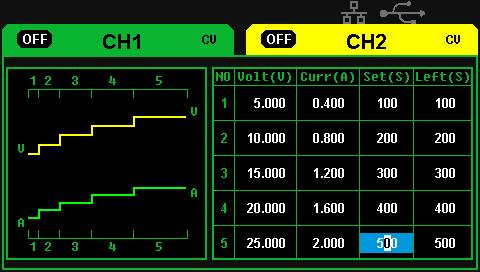

  • Timing function provides programmed output steps
  • 4.3 inch true color TFT- LCD 480 x 272 display
  • 3 types of output modes: independent, series (60 V max), and parallel (6.4 A max)
  • Features:
    • 100/120/220/230 V compatible design to meet the needs of different power grids
    • Intelligent temperature-controlled fan effectively reduces fan noise
    • Clear graphical interface, with waveform display function
    • Five internal groups of system parameter save/recall, supports data storage space expansion
    • Free PC software: Easypower. Also supports remote programming and includes a LabView driver
