Single Output Linear DC Power Supply with LED Display (Voltage adjustable 0-30V, Current adjustable 0-5 Amp)

01PHSY3005-4
Regular price
$129.99
Sale price
$129.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

  • Voltage adjustable 0-30V
  • Current adjustable 0-5 Amp

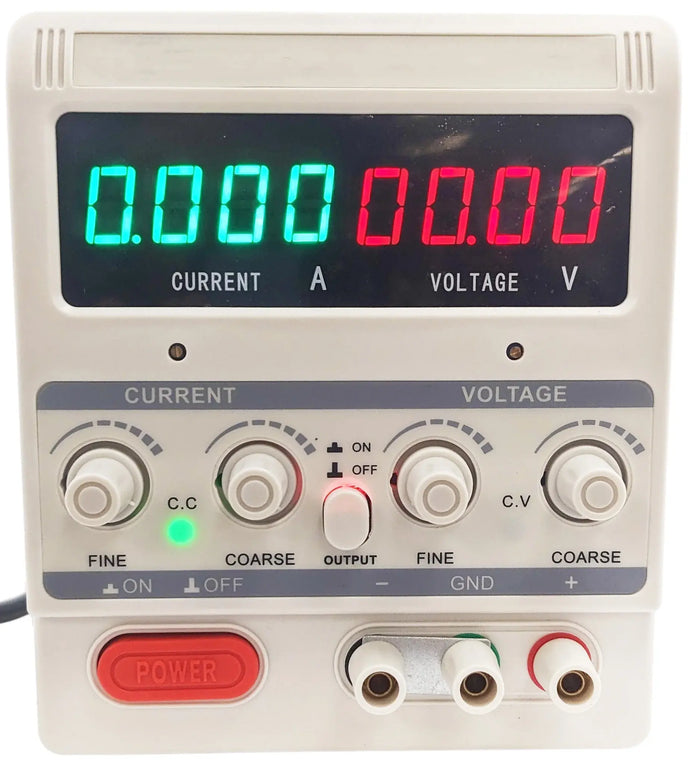

  • LED displays for both current and voltage
  • Constant Voltage (CV) and constant current (CC) operations, Auto CV/CC switch
  • Coarse and Fine control for voltage and current
  • Over current protection, Over voltage protection and Over temperature protection
  • Short circuit protection by current limitation

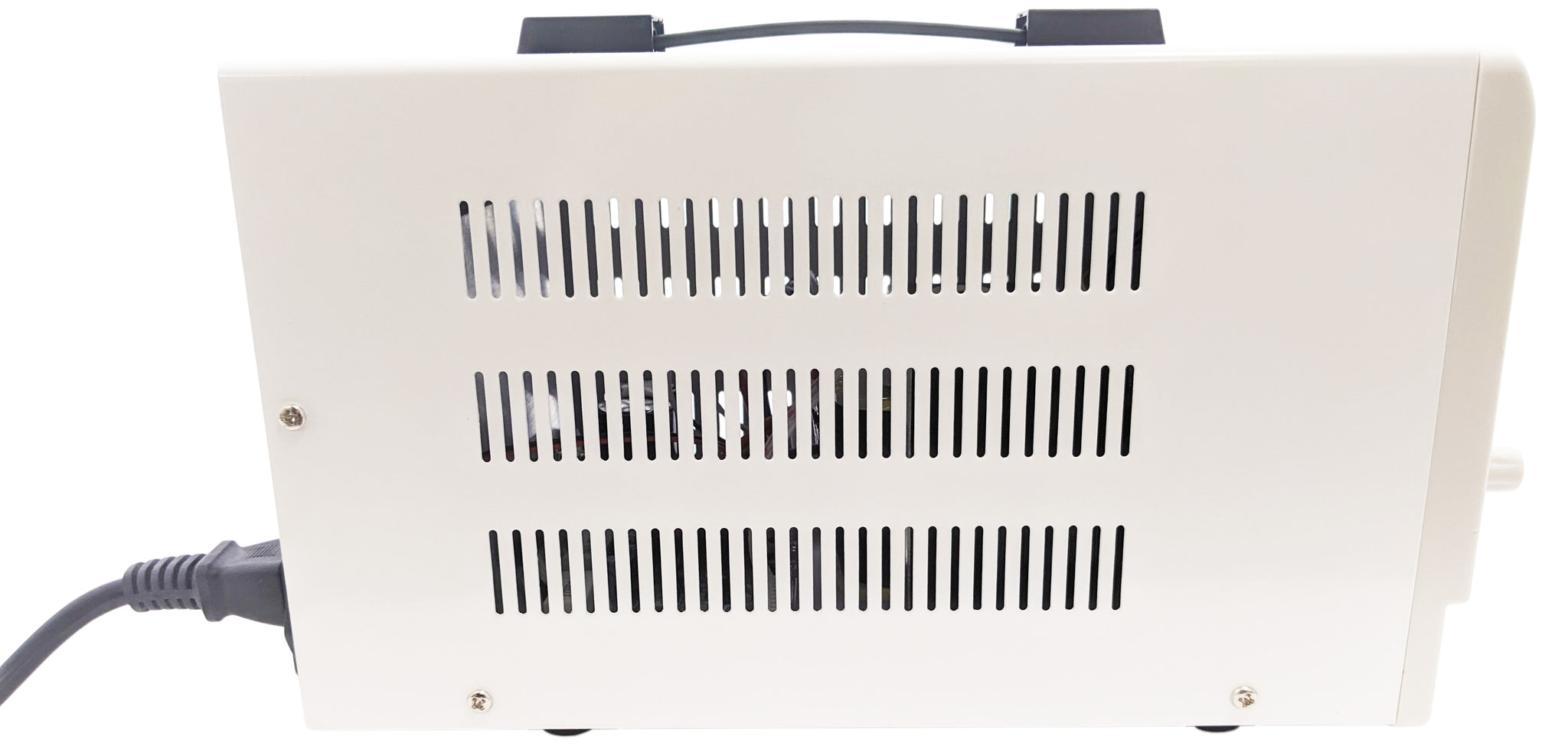

  • Intelligent cooling fan

The SP-1305D linear DC power supply has a single output channel and 4 digit LED display. With a linear copper transformer, the relay converts the secondary output voltage with high efficiency. Features an intelligent cooling fan that adjusts its speed according to temperature to reduce noise and prolong the life of the power supply. It has a pure DC output along with low ripple and noise, making it an excellent choice for use in schools, charging batteries, and burn-in testing of electronic products.

Specifications

Constant voltage operation
Line regulation ≤0.01%+5mV
Load regulation ≤0.01%+5mV
Ripple & Noise ≤3mVrms
Constant current operation
Line regulation ≤0.01%+5mA
Load regulation ≤0.01%+5mA
Ripple & Noise ≤5mArms
Display
Voltmeter 3 digits LED display
Ammeter 3 digits LED display
Accuracy ±(1% reading+1 digit)
General
Protection Over current protection, fixed 105% of rated current.
Over temperature protection: when internal temperature reaches 100ºC±10ºC, OTP is activated and the output will be shut down.
Short circuit protection by current limitation
Operating environment 0ºC~40ºC, ≤80%RH
Storage environment -10ºC~70ºC, ≤70%RH
Power source AC115V±10%, 60Hz
Accessories Power cord x1, Operation manual x1
Dimensions 4.92" x 10.23" x 6.29"

Weight

Approx. 8.8 lbs
