Snap-Acting SPDT Momentary Pushbutton Switch, On-(Mom), Solder Lug Termination, 1A @ 125VAC, Fits 6mm Hole
Snap-Acting SPDT Momentary Pushbutton Switch, On-(Mom), Solder Lug Termination, 1A @ 125VAC, Fits 6mm Hole
  • Load image into Gallery viewer, Snap-Acting SPDT Momentary Pushbutton Switch, On-(Mom), Solder Lug Termination, 1A @ 125VAC, Fits 6mm Hole
  • Load image into Gallery viewer, Snap-Acting SPDT Momentary Pushbutton Switch, On-(Mom), Solder Lug Termination, 1A @ 125VAC, Fits 6mm Hole

Snap-Acting SPDT Momentary Pushbutton Switch, On-(Mom), Solder Lug Termination, 1A @ 125VAC, Fits 6mm Hole

17MOMT80P8701B
Regular price
$2.99
Sale price
$2.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

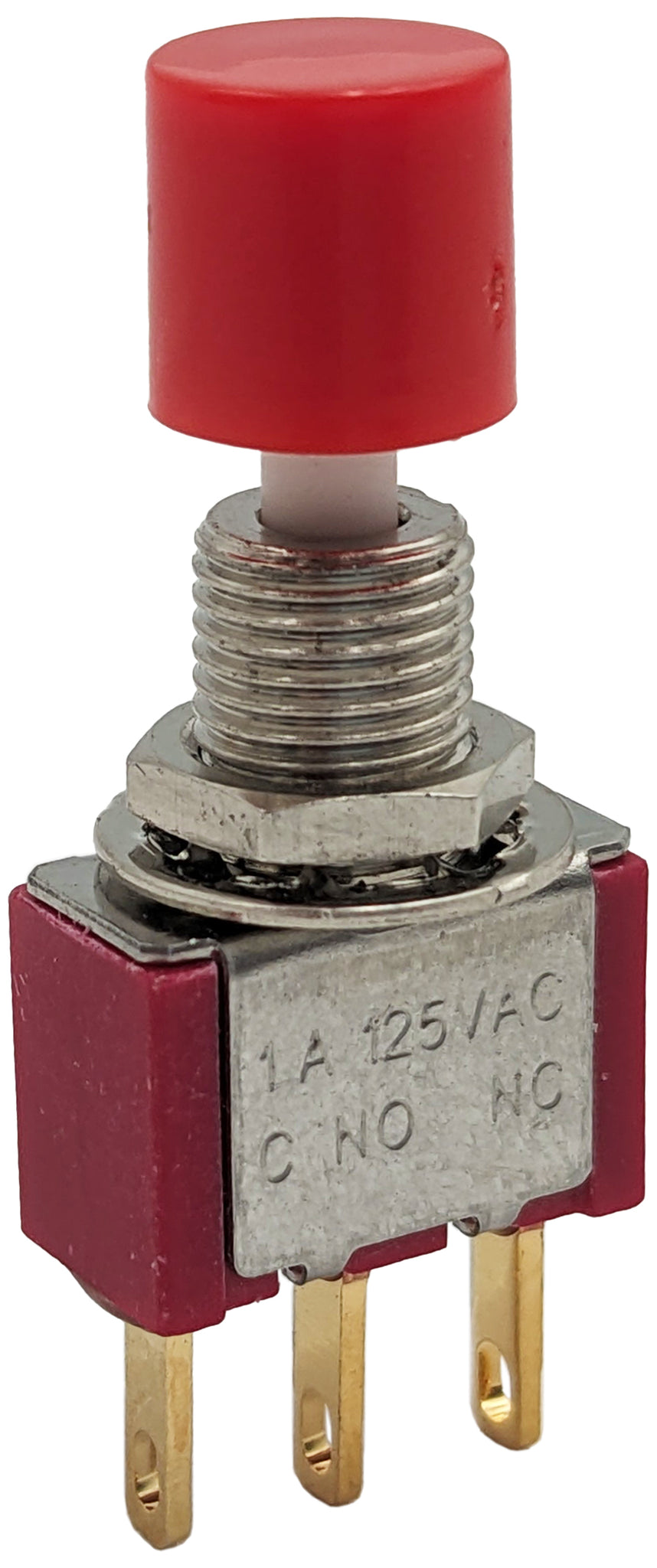

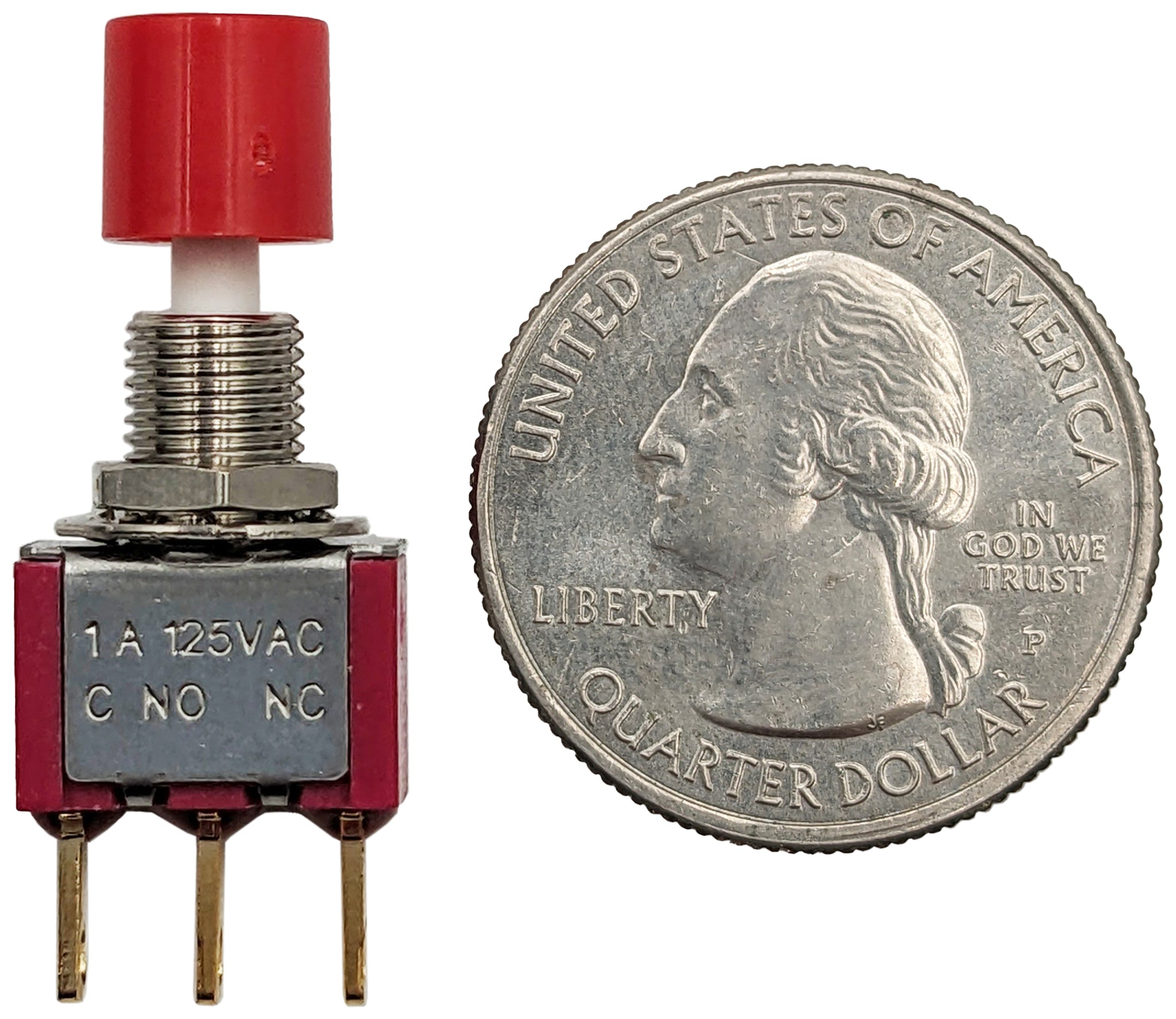

This is a snap-acting SPDT momentary pushbutton switch with an on-(mom) function and three solder lug terminals. It fits a 6 mm round cutout, has a removable red cap and is rated 1 A at 125 VAC. While pressed the common switches to the second contact, then snaps back on release.

Key Features

  • SPDT on-(mom): momentary changeover while pressed
  • Snap action for a crisp switching point
  • 3 solder lug terminals
  • Fits a 6 mm diameter cutout
  • Removable red cap
  • Rated 1 A @ 125 VAC

Specifications

Circuit SPDT
Function On-(Mom)
Contact rating 1 A @ 125 V AC
Termination Solder Lug
Pins 3
Cap Removable, red
Dimensions 12.8 × 6.8 × 26.8 mm (height excluding pins)
Panel cutout 6 mm diameter
SKU 17MOMT80P8701B

What's Included

  • 1 × snap-acting SPDT momentary pushbutton switch

Ideal For

Instrumentation, telecom gear, computer peripherals and test fixtures.

Frequently Asked Questions

What does On-(Mom) mean?
One side of the SPDT is connected at rest; pressing the button moves the common to the other contact only while held.

Can I use it as a normally open or normally closed switch?
Yes. With SPDT contacts, wiring common plus one throw gives normally closed, and common plus the other gives normally open.

Solder lug or PC lead?
Solder lugs are for hand-wiring with hookup wire; PC leads are made to solder into a printed circuit board.
