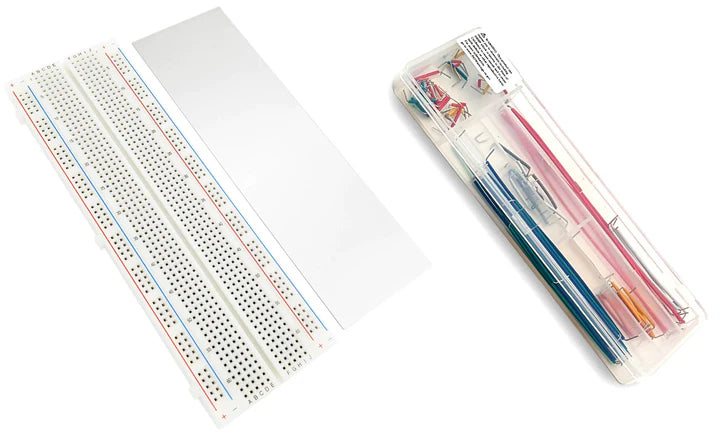

Solderless Breadboard 830 Tie Points:
- 830 tie points total: 630 tie-point IC-circuit area plus two 100 tie-point distribution strips providing 4 power rails.
- White ABS plastic body with black printed legend. Color legend on distribution strips.
- Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions. Rated at 36 Volts, 2 Amps.
- Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)

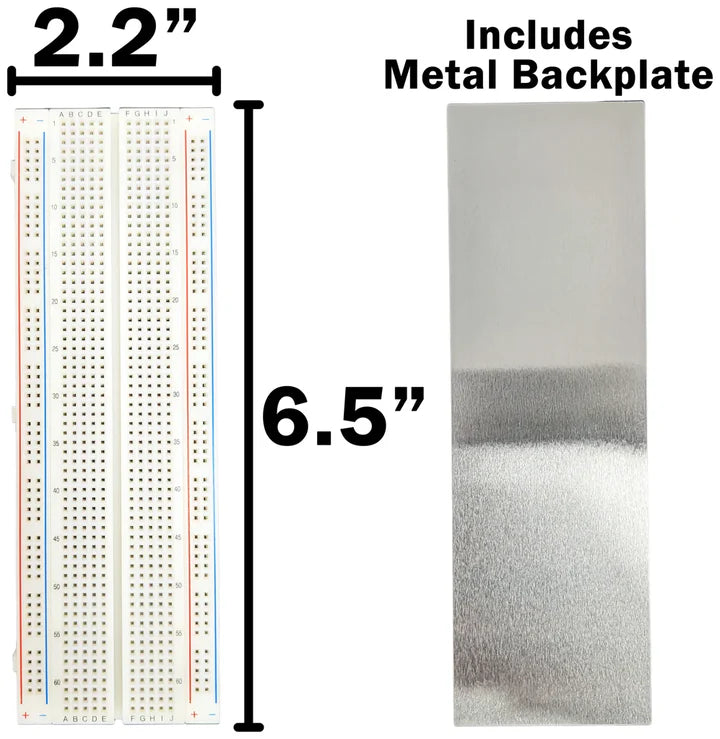

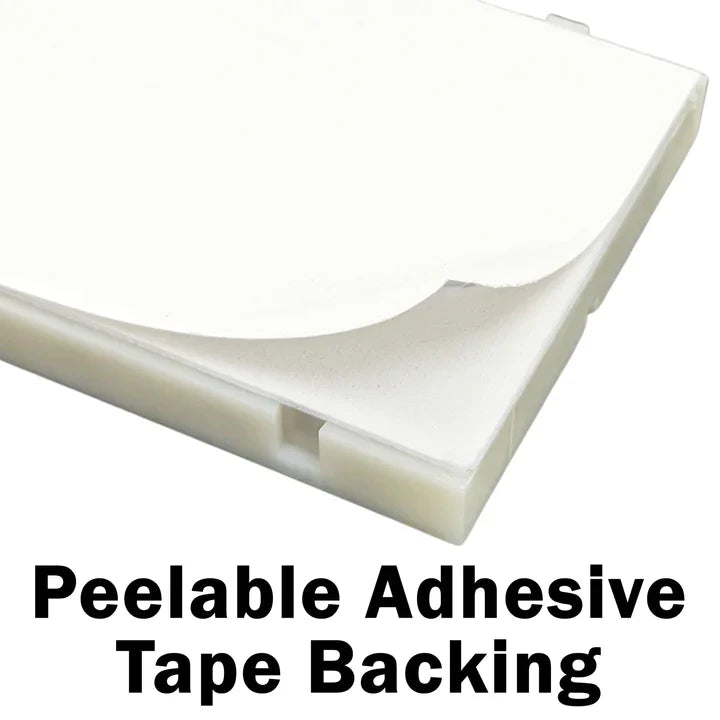

- Size: 6.5 x 2.2 x 0.3in (165.1 x 54.6 x 8.5mm). Peelable adhesive tape backing provided for attaching to a surface. Metal back plate provided.

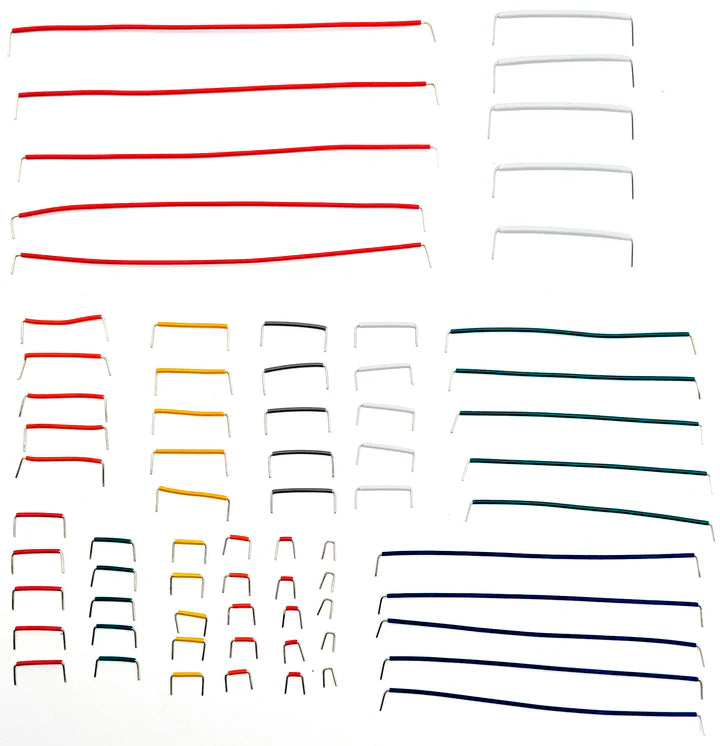

70 Pcs Jumper Wire Kit for Breadboarding:
- 70 Pieces, Assorted Lengths and Colors
- 22 AWG
- Solid Wire
- Includes Small Plastic Case (5 compartments) for Storage and Organization
- Contains wires of the following quantities and sizes: (Total 70 Pieces):
- 5x 5", 5x 4", 5x 3", 5x 2", 5x 1", 5x 7/8", 5x 3/4", 5x 5/8", 5x 1/2", 5x 3/8", 5x 1/4", 5x 1/8", 5x 3/16", 5x 1/16"
