SPDT Alternate Action Pushbutton Switch, On-On, 3 Solder Lugs, 5A@125VAC, Fits 6mm Hole, Red Cap

17L8601
Regular price
$2.99
Sale price
$2.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

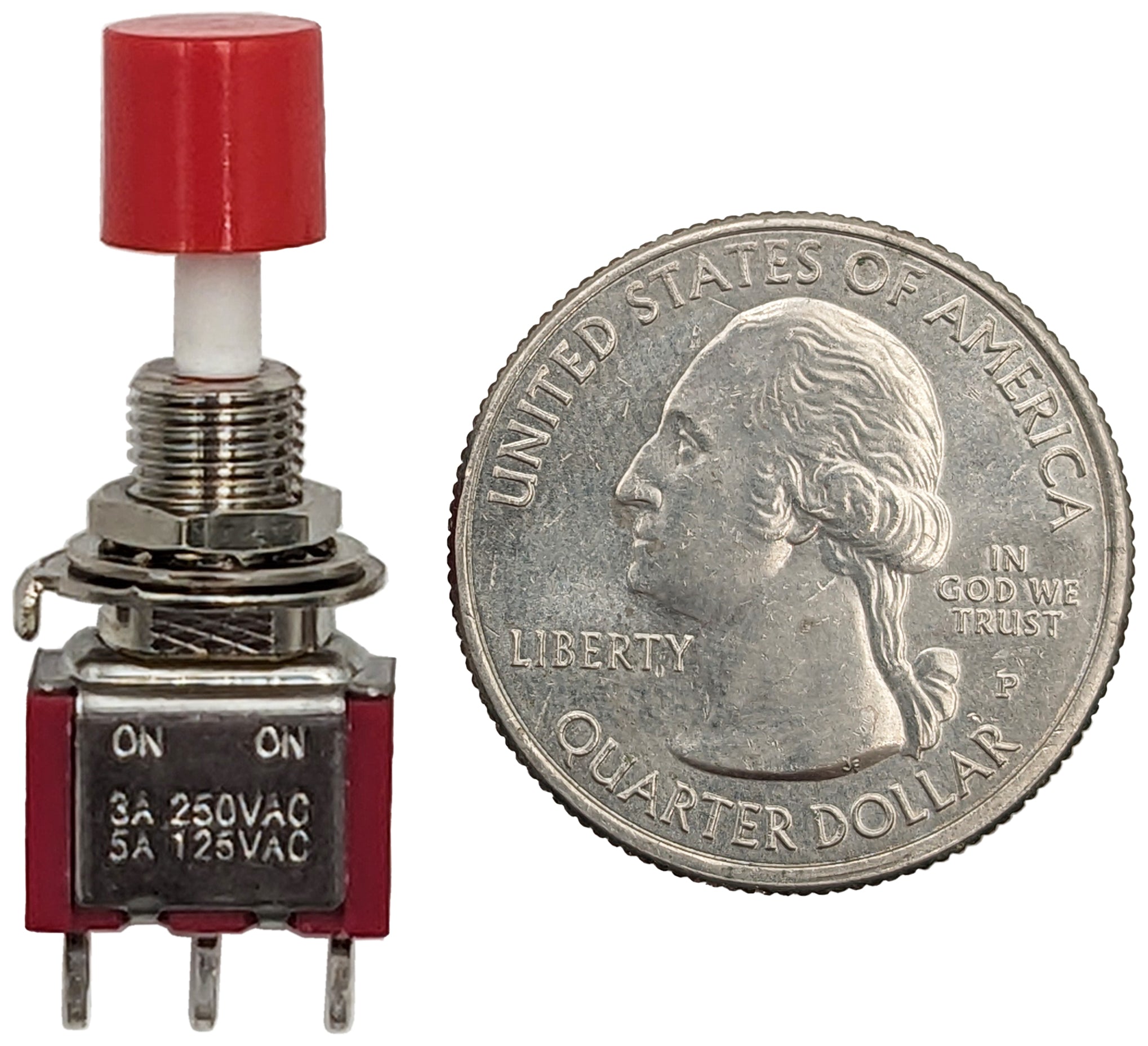

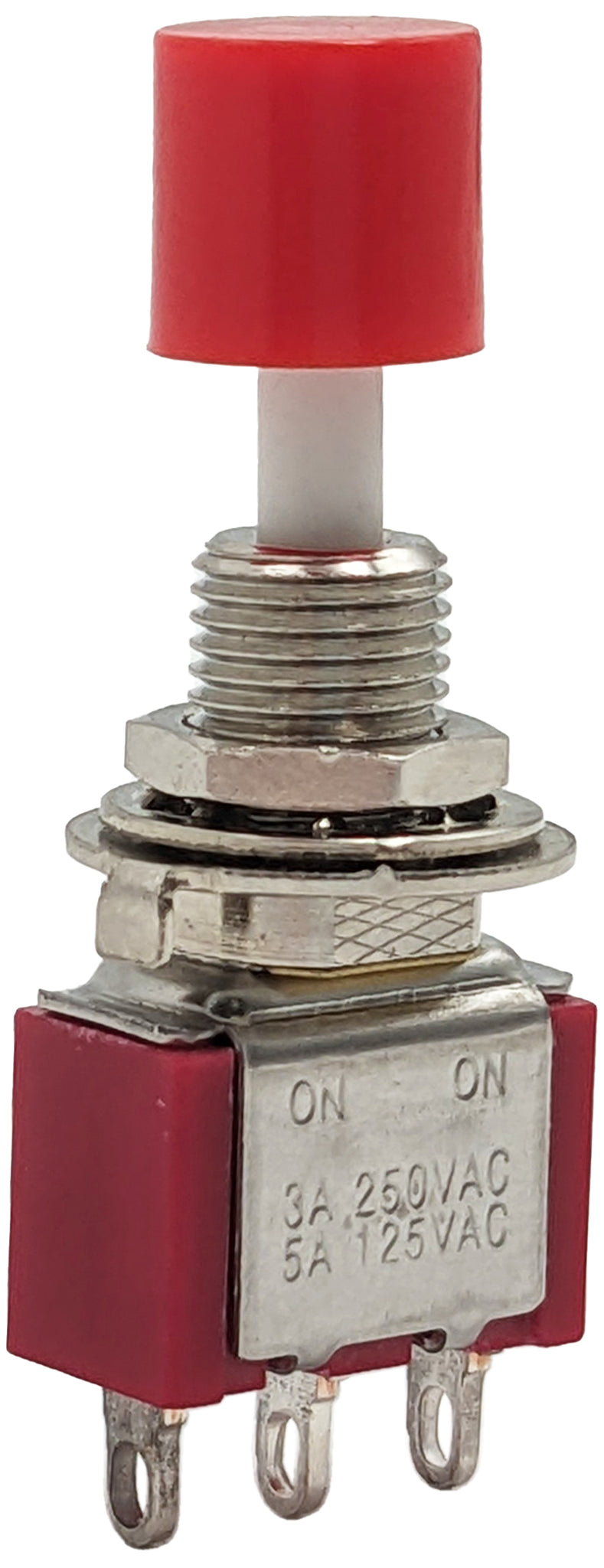

This is a single pole double throw (SPDT) alternate action pushbutton switch with an on-on function and 3 solder lug terminals. Each press toggles the contacts to the other position and they stay there until the next press. It mounts in a 6 mm round cutout and has a removable 7.5 mm red cap; contacts are rated 5A@125VAC, 3A@250VAC.

Key Features

  • SPDT on-on alternate action: press to change state, press again to change back
  • 3 solder lug terminals
  • Fits a 6 mm diameter panel cutout
  • Removable 7.5 mm red cap
  • Contacts rated 5A@125VAC, 3A@250VAC
  • 50,000-cycle life

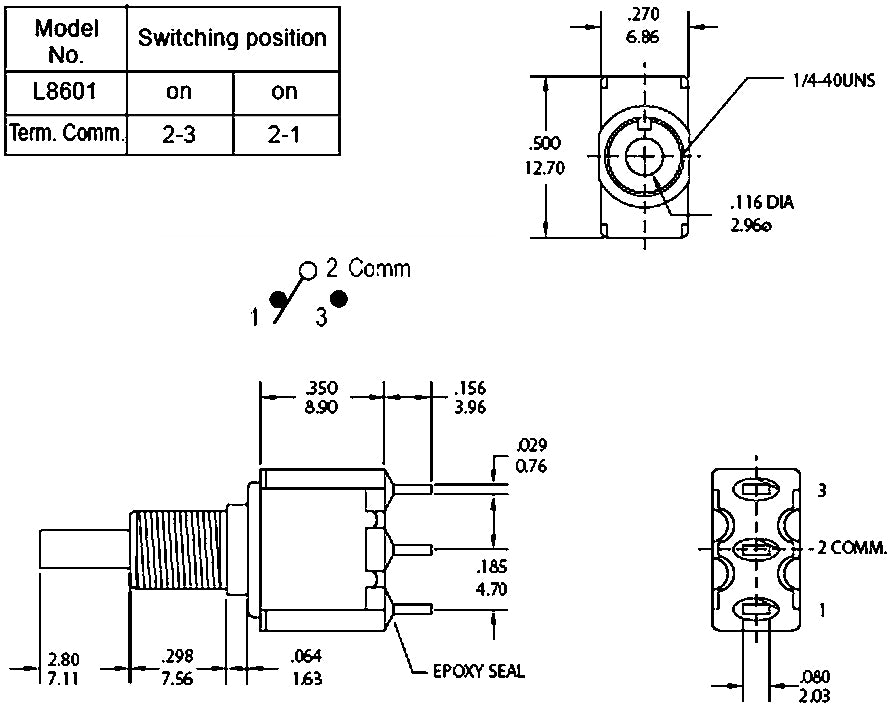

Specifications

Circuit SPDT
Function On-On (alternate action)
Termination Solder lug (3 lugs)
Panel cutout 6 mm diameter
Cap Removable, red, 7.5 mm diameter
Dimensions 12.8 × 6.9 × 31.9 mm (height excluding lugs)
Contact rating 5A@125VAC, 3A@250VAC
Life 50,000 cycles
Contact resistance 10 mΩ max. initial @ 2–4 VDC, 100 mA
Insulation resistance 1,000 MΩ min.
Dielectric strength 1,500 V RMS at sea level
SKU 17L8601

What's Included

  • 1 × SPDT alternate action pushbutton switch

Ideal For

Instrumentation, telecom equipment, computer peripherals and hobby panels that need a latching pushbutton.

Frequently Asked Questions

What is alternate action?
Also called push-on/push-off or latching: the switch stays in its new position after you release it, and the next press returns it.

What does On-On mean?
There is no off position; the common is always connected to one of the two throws. Wire only two lugs (common plus one throw) to use it as a simple on/off.

What size hole do I need?
A 6 mm diameter round panel cutout.
