- 1U RACKMOUNT PDU POWER STRIP: Rack mount power strip for Audio/Video, network hardware, entertainment systems, desks, and more. Designed for home, business, and IT Pro applications. Features 12 NEMA 5-20R outlets, 6 front and 6 rear.
- ADVANCED FEATURES: Features lighted on/off switch with locking covers. Long 15 foot (4.6 m) AC power cord with 20A plug & resettable circuit breaker trips in the event of an overload. Heavy-duty metal housing is designed for long life.
- EVERYTHING YOU NEED TO POWER YOUR APPLICATION: Package includes RS-1215-20 device, owner’s manual, and mounting hardware. Mounting hardware can be added, removed, or rotated to meet your needs.
- VERSATILE INSTALLATION: Mounts in 1U rackmount standard 19 inch 2-post and 4-post rack. Also mounts on wall, workbench or under a counter with moveable rack ears. Ready for toolless 0U vertical installation with optional PDUSIDEBRKT (sold separately).
The RS-1215-20 Power Strip offers 20A capacity AC power distribution in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for rack-mount, wall-mount and under-counter installation. Uses only 1U when installed in any 19-inch rack, meeting EIA standards. Unfiltered electrical pass-through makes RS-1215-20 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 12 NEMA 5-20R outlets (six front/six rear), 15-foot (4.6-meter) cord and lighted switch with cover prevents risk of accidental turn-off.
Features
• Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options
• Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks)
• Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment

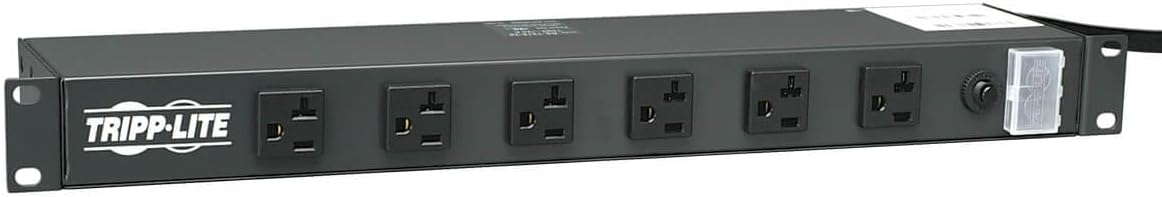

• 12 NEMA5-20R output receptacles (6 front/6 rear)
• 15-ft. (4.57 m) AC cord NEMA5-20P plug connection
• Lighted power switch confirms power on/off status
• Snap-in switch guard prevents accidental turn off
• 20 amp electrical capacity with circuit breaker
• 120V AC, 50/60Hz electrical compatibility

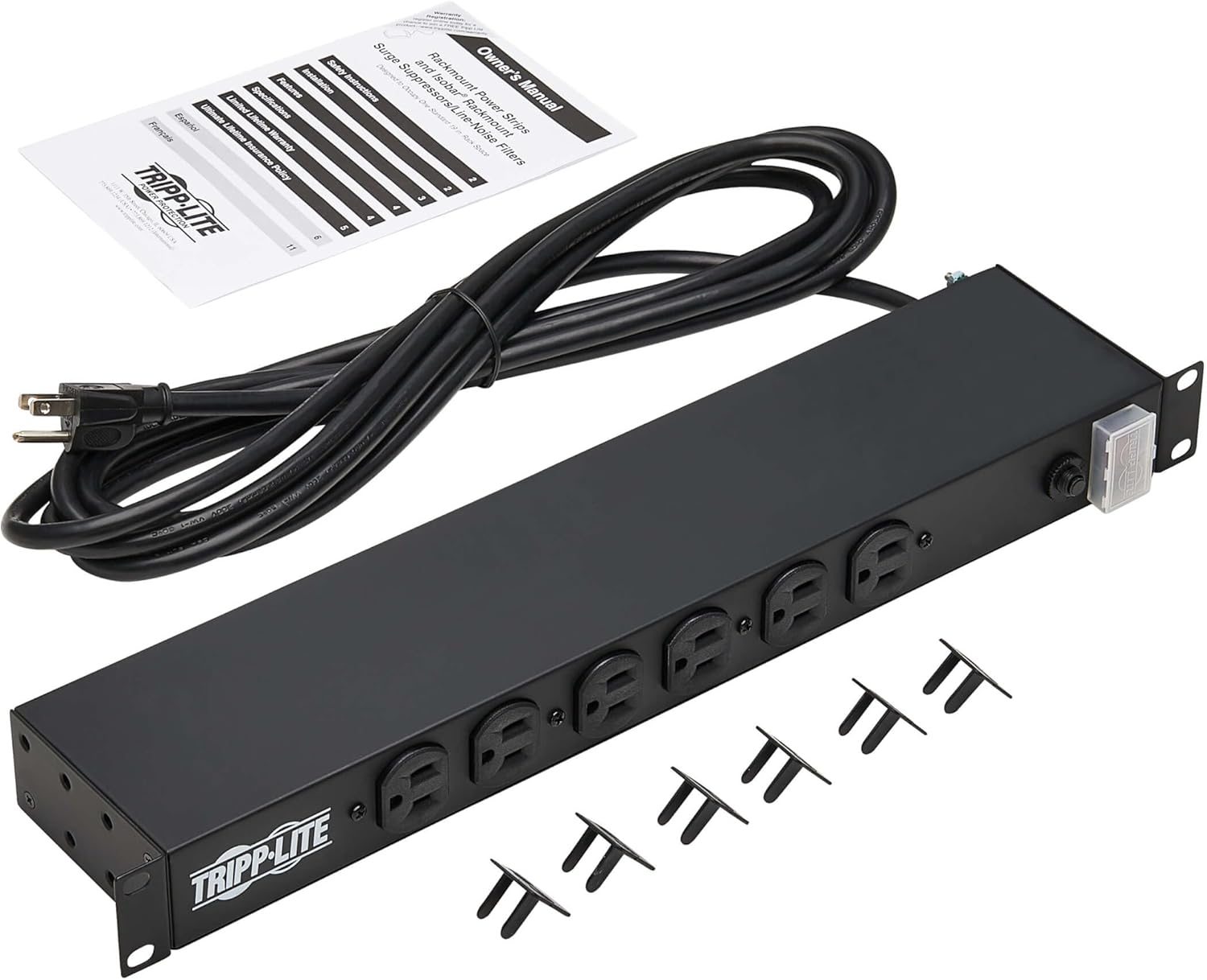

Package Includes
• RS-1215-20
• Warranty information
• Instruction manual
12-Outlet 120V AC Rackmount Power Strip with 20 Amp Rating
Tripp Lite’s RS-1215-20 provides 12 NEMA 15/20R outlets in a versatile, all-metal housing with detachable mounting flanges to allow rackmount, wallmount and undercounter mounting options. A lighted and covered switch prevents accidental shut-off, while a 20-amp circuit breaker guards against dangerous overloads. The RS-1215-20 has a NEMA 5-20P input plug (not compatible with standard household wall outlets). An extra-long, 15 ft. cord gives you the flexibility you need for a variety of office, rackmount, retail and industrial applications.
12 Convenient Outlets Power All Equipment with an Extra Long Cord
The RS-1215-20 occupies only 1U of rack space when installed in a standard 19 in. rack. Unfiltered electrical pass-through makes this power strip ideal for distributing alternate waveform UPS or generator power in a rack enclosure or network closet. Its versatile multi-mount design makes the RS-1215-20 equally appropriate for use mounted on a wall or under a desk, table or counter.
The NEMA 5-15/20R outlets are compatible with all standard 15A and 20A electrical equipment. Six of the outlets face forward, while the other six are located on the back of the unit. The extra-long 15 ft. cord allows this power strip to be mounted in a different area, or even a completely different room, from where it draws AC current, putting you in control of getting reliable power where you need it most.
Premium Safety Features
A lighted On/Off switch with locking cover eliminates accidental shut-off, while allowing you to see at a glance whether the unit is operational. A built-in, 20-amp circuit breaker prevents dangerous circuit overloads that could damage equipment. The breaker immediately shuts off AC input when it detects that the equipment load is drawing too much power. This power strip is also manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
