- Allows HDMI audio/video and control to be transmitted up to 164 ft/ 50m using a single Cat5e or Cat6 cable

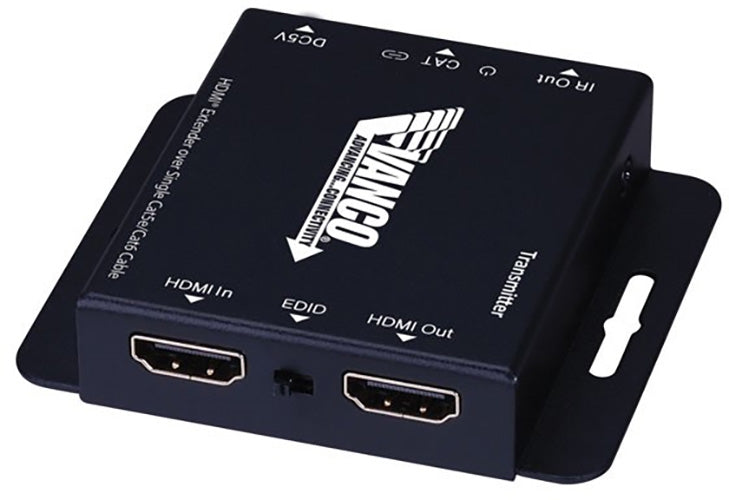

- Features HDMI Loop-out port on the transmitter to split of cascade audio and video signals for additional displays
- IR pass-through control from the receiver to the transmitter with the provided IR cables
- Full HD support of 1080p @60Hz
- Compatible with Dolby- DTS and PCM audio formats

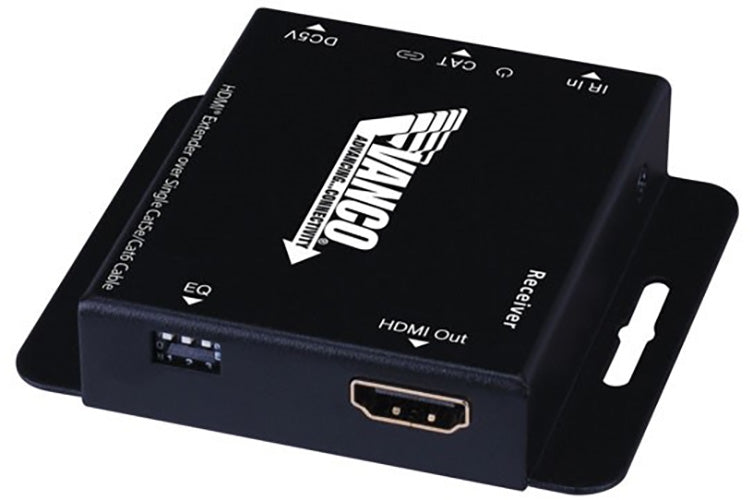

- EQ settings on the receiver allows for easy adjustment based on cabeling distance
- EDID settings on the transmitter allow for EDID to be managed through either the HDMI Loop-out of the HDMI output of the receiver for an easy and cost effective solution
- HDCP Compliant
- Power supplies: (1) 5V DC
- Dimensions: 3.3”W x .6” H x 2.6” D
Tech Support Tips:
- Not recommended to be used with other HDMI distribution products such as splitters and matrix units. HDBaseT extenders are recommended for combining with HDMI distribution products.
- Recommended to be used with a permanent source, or non-rotating source. For any rotating source such as a conference room type setup, it is recommended to use an HDBaseT extender.
- HDMI UHD Deep Color mode on some LG displays may need to be deactivated to avoid video signal issues
- Input Signal Plus on some Samsung displays may need to be deactivated to avoid video signal issues
Package Contents:
HDMI Extender Set
1 Wideband IR Tx
1 Wideband IR Rx
2 DC 5V1A power supply
1 User Manual
