- Note: Sold individually, unassembled (body, insulator, lockwasher, and hex nut)

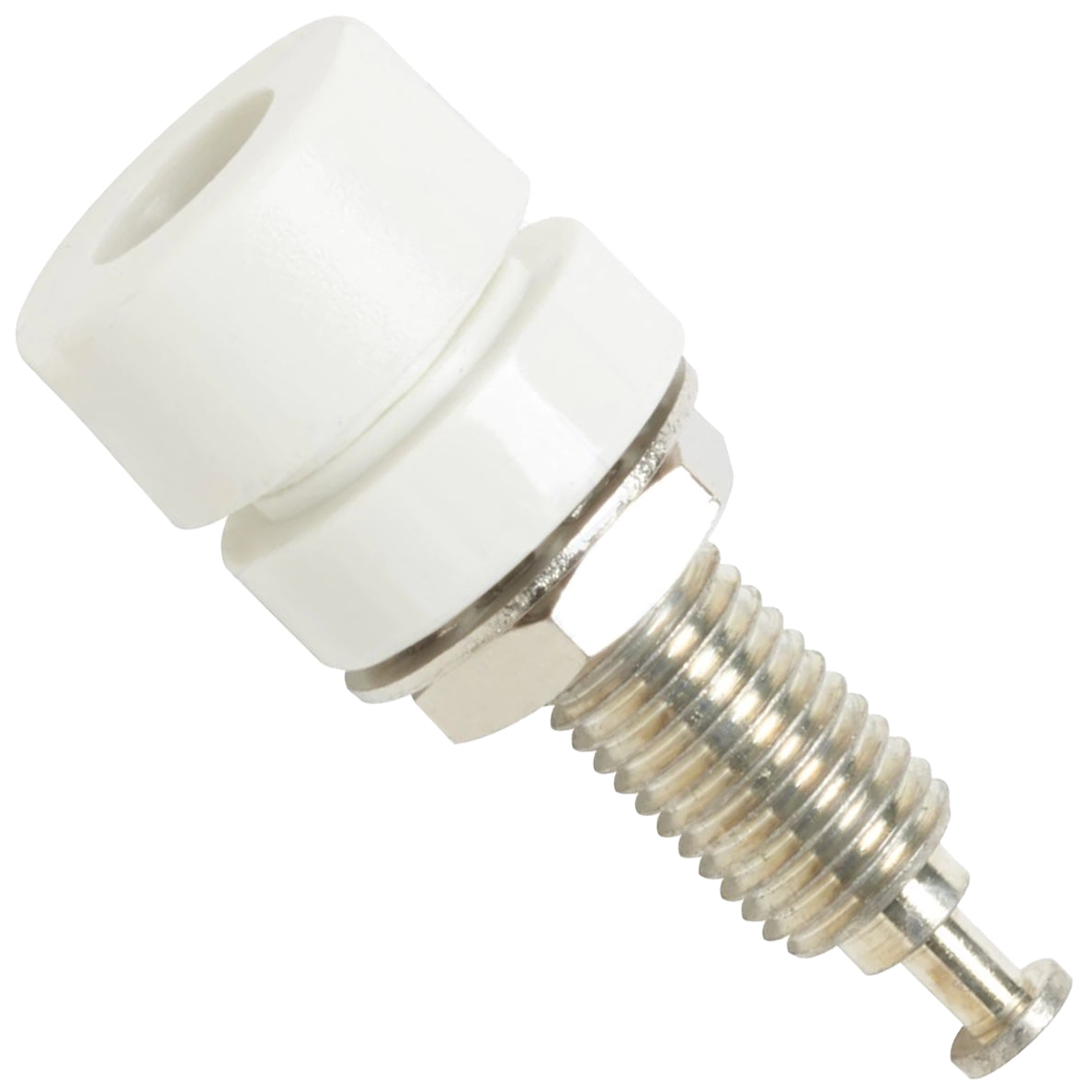

- White banana jack for standard 4mm banana plugs

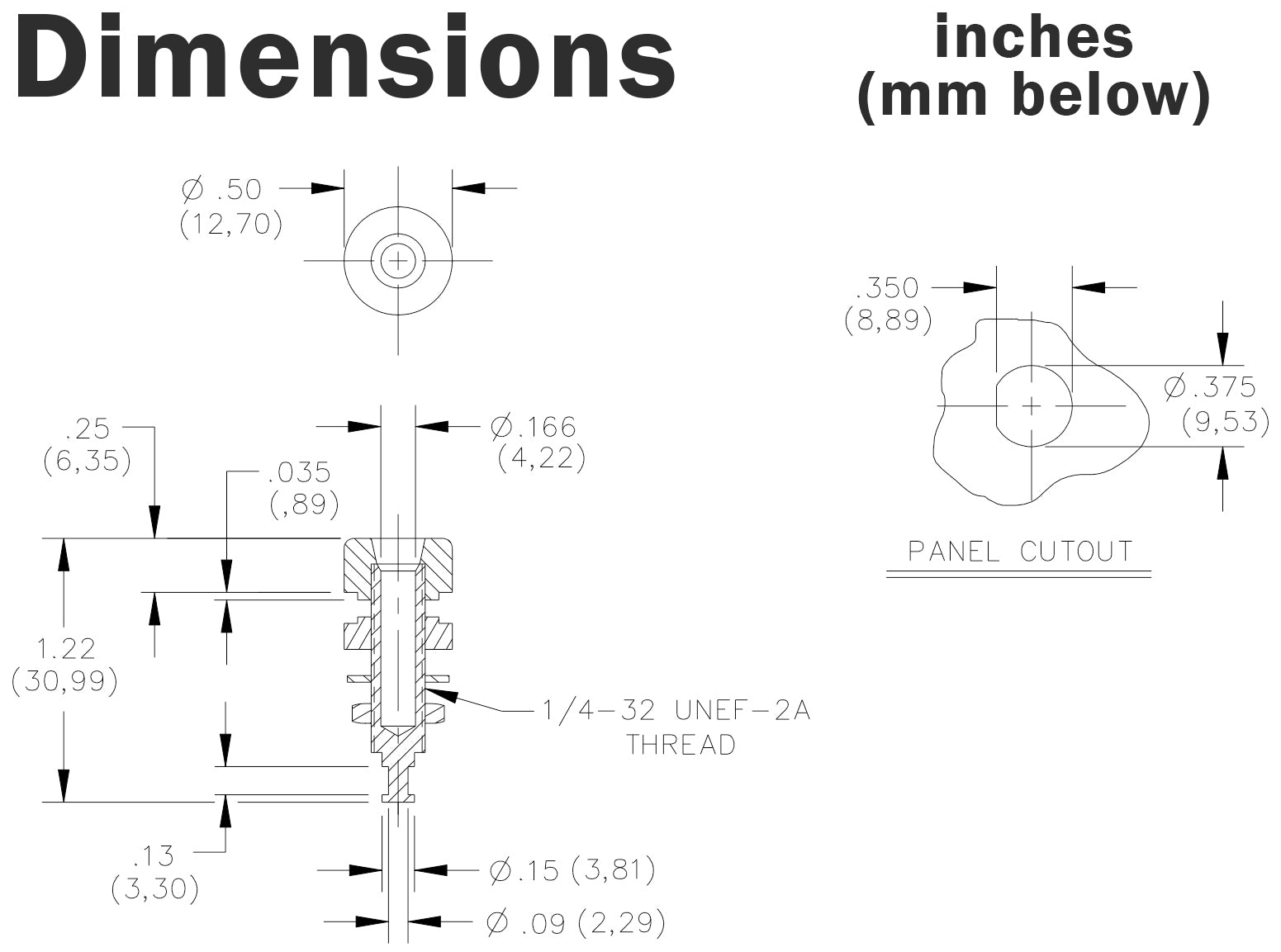

- Mount into panels ranging in thickness from 0.063" (1.6mm) to 0.375" (9.5mm)
- 1.22" overall length
- Ratings:
- Operating Voltage:
- For CE compliance and for personal safety, do not hold in hand when voltages exceed 30 Vrms/60 Vdc. Do not use on circuits where transient stresses can exceed the rated voltage.
- Hand-held Testing: 30VAC/60VDC Max.
- Hand Free Testing in controlled Voltage Environment: 2500 WVDC.
- Operating Temperature: +115°C (+239°F)
- Current: 15 Amperes
- Operating Voltage:
- Materials:
- Banana Jack: Body - Brass, Tin Plated
- Insulators: Polycarbonate
- ¼ Internal Locking Washer: Steel, Nickel Plated
- ¼-32 Hex Nut: Brass, Nickel Plated
